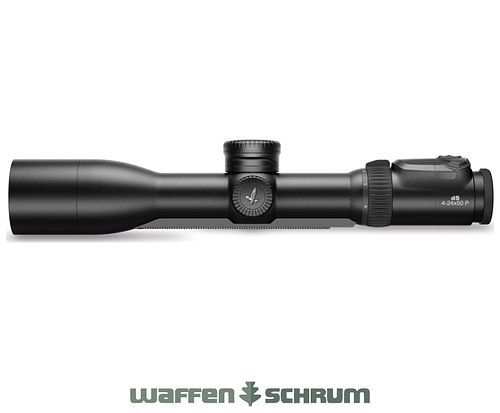

Swarovski dS - 4-24x50 P SR

The Swarovski riflescope dS 4-24x50 P SR – with rail – provides all the data for the optimal shot and determines the exact point of aim.Since the introduction of the dS riflescopes, Swarovski has been bringing current digital technologies to hunting. The model dS 4-24x50 P SR – with rail – belongs to the 3rd generation of this innovative series. The high-tech optics allow you to focus on the actual hunting experience. To keep the dS up to date, the latest software updates are installed via the Over-the-Air (OTA) function.

The excellent image quality known from Swarovski is further enhanced in the optimized dS by a new optical system. The 6x zoom ensures the appropriate magnification for every hunting situation. By utilizing precise data on distance, angle, temperature, and air pressure, as well as the individual data entered about the rifle and the ammunition used, the dS 4-24x50 P SR riflescope calculates the correct point of aim and displays it at the push of a button.

With the in-device menu, various settings can also be accessed outdoors in the field without a smartphone:

Device Mode: Range (for ballistic calculations and corrected point of aim) or Red Dot (laser measurement disabled, e.g., for use with a thermal imaging device)Wind (activation of wind indicators and selection between five different wind speeds)Activate or deactivate BluetoothCompass calibration

The dS 4-24x50 P SR fully unfolds its capabilities only in conjunction with the Hunting App from Swarovski Optik. This allows for extensive customization of the sight optics. This includes, among other things:

the reticle variant from 6 different reticles,the impact energy,the display brightness, andthe display fields for wind strength, bullet speed, and flight time.

An automatic shot detection documents the hunting process in the Hunting App journal. The shot data concerning distance and direction are automatically stored in the riflescope and can be transferred to the app for use with the tracking assistant and for additional documentation in the journal. The tracking assistant, which can only be used via smartphone, guides you to the target area after selecting the shot in the app map using directional arrows.

Included in the delivery is a remote control with a strap for attachment to the stock, allowing operation of the dS 4-24x50 P SR in the shooting position. The main button initiates the distance measurement, while the two smaller buttons control the display brightness.

Delivery contents

dS 4-24x50 P SR riflescopeProtective coverProtective caseClamp adapterRemote controlLens cleaning setTorx key TX6Adjustment tool for elevation and windageInstructions

Technical data

Magnification 4-24xEffective objective diameter: 38-50 mmExit pupil diameter: 9.5-2.1 mmEye relief: 95 mmField of view: 8.9-1.5 m at 100 m / 5.10-0.86°Eye-side field of view: 20.8°Diopter adjustment: -3 to +2 dptPoint of impact correction per click: 7 mm at 100 mMax adjustment range elevation / windage: 1.2 / 0.7 m at 100 mAdjustment range display at 24x
up / down: 0.15 / 0.50 m at 100 m
left / right: 0.24 / 0.24 m at 100 mParallax adjustment: 50 m to ∞Objective filter thread: M61x0.75Display: LCoS MonochromeMeasurement range: 30-1,375 mMeasurement accuracy: ±1 mMeasurement duration: ≤0.7 sLaser Class 1 EN / FDADisplay duration: selectable via Hunting AppBrightness levels: 64Battery: CR123AOperating time at medium brightness: 500xBattery warning: 100x
Hunting App interface: BluetoothMinimum range interface: 2 mOperating temperature
Electronics: -10 to 55 °C
Mechanics: -20 to 55 °C
Storage temperature: -30 to 70 °Cwaterproof up to 4 mCenter tube diameter: 40 mmLength: 395 mmWeight: 1,100 g
