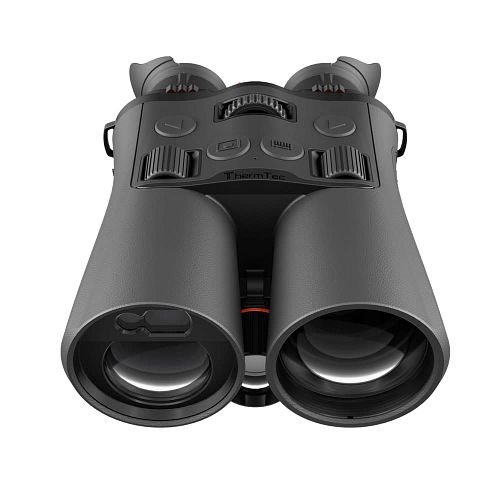

ThermTec Ventus 650L Multi-Spectrum Thermal Imaging Binoculars

Multi-Spectrum Thermal Imaging Binoculars for Maximum Range and Precise Observation

The ThermTec Ventus 650L Multi-Spectrum Thermal Imaging Binoculars combines modern thermal imaging technology with high-resolution daylight optics and an integrated laser rangefinder in a powerful dual system. This makes the device particularly suitable for demanding hunters, professional users, as well as for nature and security observations under various lighting and weather conditions.

At the heart of the system is a highly sensitive 640 × 512 pixel thermal imaging sensor with 12 µm pixel pitch. With a thermal sensitivity of NETD < 15 mK, the device detects even minimal temperature differences. This ensures that details are reliably visible even in fog, high humidity, or difficult weather conditions.
Dual-System of thermal imaging and daylight optics

The Ventus 650L combines two powerful observation technologies in one device. In addition to the thermal imaging camera, the binoculars feature a 12 MP daylight camera, displayed on the brilliant 1600 × 1200 AMOLED display. This combination allows for flexible use both day and night and provides a significantly better assessment of the surroundings, wildlife, and distances.
Integrated Laser Rangefinder up to 1000 Meters

The integrated Laser Rangefinder measures distances accurately up to 1000 meters with an accuracy of ±1 meter. The distance is displayed directly in the field of view, making it easier to safely assess distances in the field or during professional observation tasks.
Large range due to powerful 50 mm lens

The high-quality 50 mm F1.0 lens combined with the sensitive sensor provides very high detection performance. The maximum detection range is about 2600 meters. With a thermal base magnification of 3.7× and a digital zoom of up to 14.8×, targets can be reliably observed even at great distances.
Comfortable image display and modern features

The large AMOLED display with a resolution of 1600 × 1200 pixels ensures a clear and high-contrast image representation. The system is complemented by numerous features such as hotspot tracking, PIP mode, EIS image stabilization, as well as an integrated compass. Photos and videos can be stored directly on the 64 GB internal storage.
Robust construction for use in the field

The housing of the Ventus 650L is protected against dust and water according to IP67 and is therefore designed for demanding outdoor conditions. The power supply is provided by two replaceable 18650 Li-Ion batteries, which allow for a runtime of approximately 6 hours. This ensures that the device remains reliably ready for use even during longer operations.
Technical Data

Product
ThermTec Ventus 650L Multi-Spectrum Thermal Imaging Binoculars

Thermal Imaging Sensor
640 × 512 pixels

Pixel Pitch
12 µm

NETD
< 15 mK

Spectral Range
8 – 14 µm

Thermal Lens
50 mm / F1.0

Thermal Magnification
3.7× – 14.8×

Thermal Field of View
8.8° × 7°

Detection Range
Up to approx. 2600 m

Daylight Camera
12 MP CMOS

Daylight Lens
50 mm / F1.4

Optical Magnification
4× – 16×

Display
AMOLED 1600 × 1200 pixels

Laser Rangefinder
Up to 1000 m, ±1 m accuracy

Internal Memory
64 GB

IR Illuminator
850 nm / 940 nm

Battery Type
2 × 18650 Li-Ion

Runtime
Approx. 6 hours

Protection Class
IP67

Operating Temperature
-20 °C to +50 °C

Dimensions
164 × 127.6 × 73 mm

Weight
Approx. 833 g

FAQ

What is the range of the ThermTec Ventus 650L?

The maximum detection range is about 2600 meters. However, the actual range depends on weather, environment, and target size.

Can the device be used during the day?

Yes, the Ventus 650L features a built-in 12 MP daylight camera and can therefore be used both in daylight and at night.

How long does the battery last?

With two 18650 Li-Ion batteries, the device achieves a runtime of approximately 6 hours.

Is the device weatherproof?

Yes, the housing is protected against dust and water according to IP67, making it suitable for use in the field and under difficult weather conditions.
