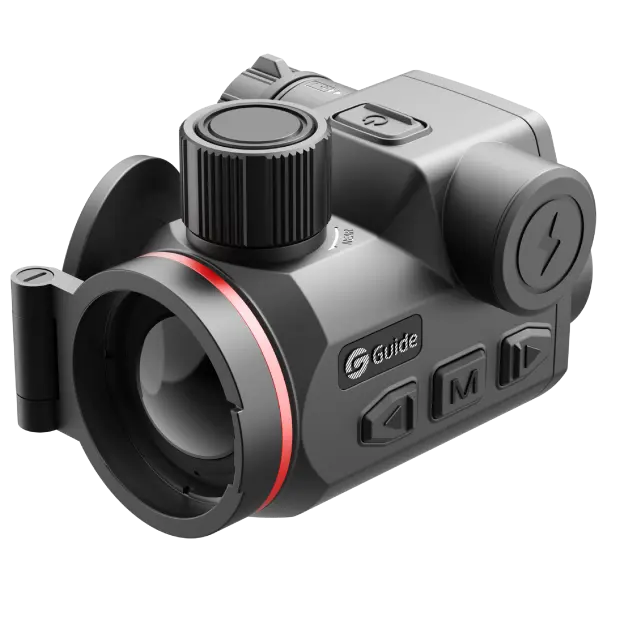

GUIDE Orion 435CS thermal imaging clip-on device

Compact Clip-on Thermal Imaging Device for Precise Night Hunting

The Guide O435CS Clip-on Thermal Imaging Device from the Orion C Series has been developed for hunters looking for a lightweight, powerful, and reliable thermal imaging device for professional use. Thanks to the modern APEXVISION infrared imaging technology, the device delivers stable, high-contrast thermal images and enables safe target identification even under difficult conditions.

The highly sensitive sensor with 400 × 300 pixel resolution at 12 μm pixel size and an extremely low NETD of only 15 mK detects even minimal temperature differences. This allows for clear detection of wildlife movements and reliable representation of details even at greater distances.
ApexVision next-generation thermal imaging technology
The integrated ApexVision-S1 system combines modern sensor technology with intelligent image processing. The architecture of ApexCore-S1 detector, Nexus-1.0 platform, and Hyper-Light-2.0 algorithm ensures particularly clear, fluid, and detailed thermal images – even in challenging weather conditions.
AI-optimized image processing for maximum detail recognition
The Hyper-Light-2.0 algorithm uses artificial intelligence to automatically adjust contrast, brightness, target highlighting, and tonal values. This results in a significantly clearer image with better detail representation and less image noise – even at greater distances.

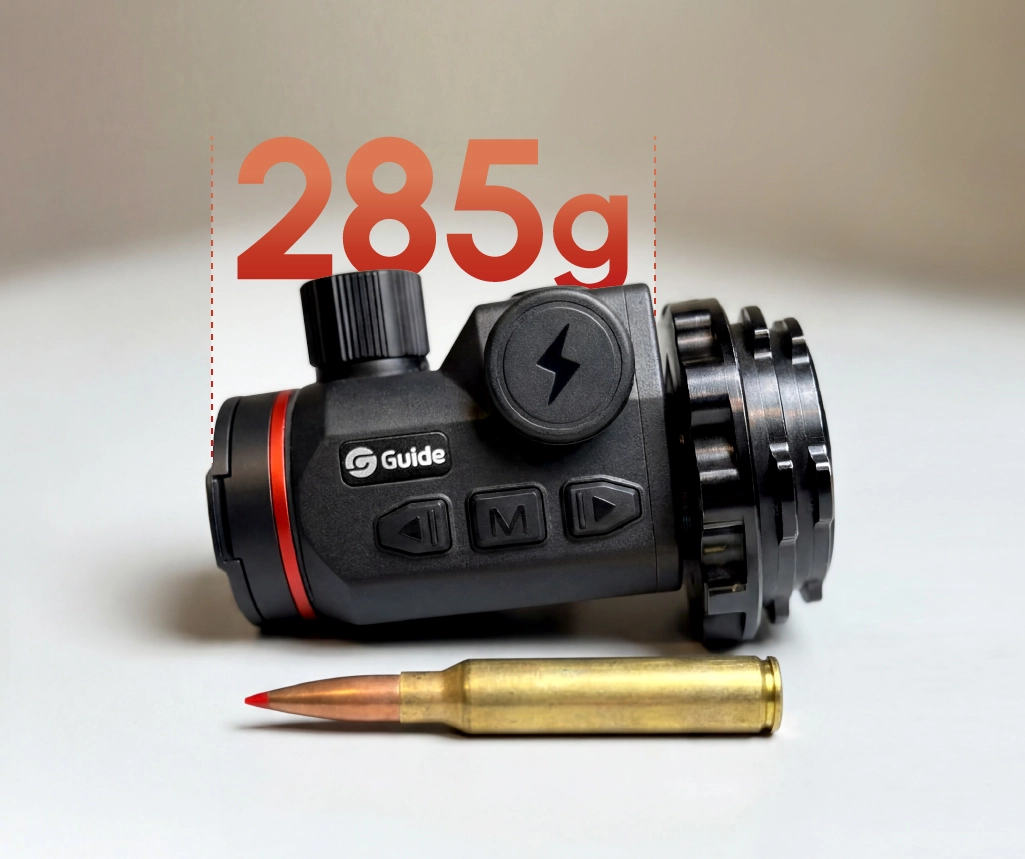

Ultralight Design for Optimal Weapon Balance
With only 285 g weight, the Orion C is one of the particularly lightweight thermal imaging attachments in its class. The compact design reduces the strain on the target optics and ensures a balanced weapon – a significant advantage during long sits or stalking.
Ready to use in just 3 seconds
The device starts in just 3 seconds and is ready for use immediately. Especially in unexpected wildlife encounters in the field, this quick response time can be crucial.
Long runtime for extended hunting nights
The energy-efficient technology allows for long operating times. A single 18500 battery provides up to about 8 hours of runtime. With a replacement battery, the use can be easily extended over an entire night.
Robustly built for use in the field
The Orion C is designed for recoil energies up to 6000 Joules and is therefore suitable for powerful hunting calibers. The IP67 certification reliably protects the device from dust, rain, and moisture.
High-Resolution AMOLED Display
The integrated 0.39 inch AMOLED display with 1024 × 768 pixels provides a clear, high-contrast representation. Multiple color palettes allow for flexible adaptation to different observation situations while simultaneously reducing eye strain.
Technical Data

Model
Guide O435CS

Sensor Type
Uncooled VOx infrared sensor (8–14 μm)

Sensor Resolution
400 × 300 pixels @ 12 μm

NETD
15 mK

Frame Rate
50 Hz

Lens
35 mm F0.9

Field of View
7.9° × 5.9°

Field of View at 100 m
13 × 10 m

Magnification
1× (Clip-on operation)

Detection Range
Up to 1800 m

Display
0.39" AMOLED, 1024 × 768

Color Palettes
White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia

Power Supply
1 × 18500 battery (replaceable)

Operating Time
Up to approx. 8 hours

Interface
USB-C

Protection Class
IP67

Recoil Resistance
Up to 6000 J

Operating Temperature
-20 °C to +50 °C

Weight
285 g

Dimensions
99 × 73 × 68 mm

Scope of Delivery

Scope of Delivery
Device, carrying case, accessory pouch, lint-free cleaning cloth, battery charger, 2 × 18500 battery, USB-A to USB-C cable, quick start guide, warranty card

Optional Accessories
Cover ring adapter, additional 18500 batteries

FAQ

Which scopes is the device suitable for?

The Guide O435CS is a clip-on attachment device and can be mounted on many common scopes with suitable adapter rings.

How far can game be detected?

The maximum detection range is up to about 1800 meters, depending on weather, terrain, and target size.

Is the device recoil-resistant?

Yes, the Orion C is tested up to 6000 Joules and is therefore suitable for powerful hunting calibers.

Is the battery replaceable?

Yes, the 18500 battery is replaceable. Two batteries are already included in the delivery.
