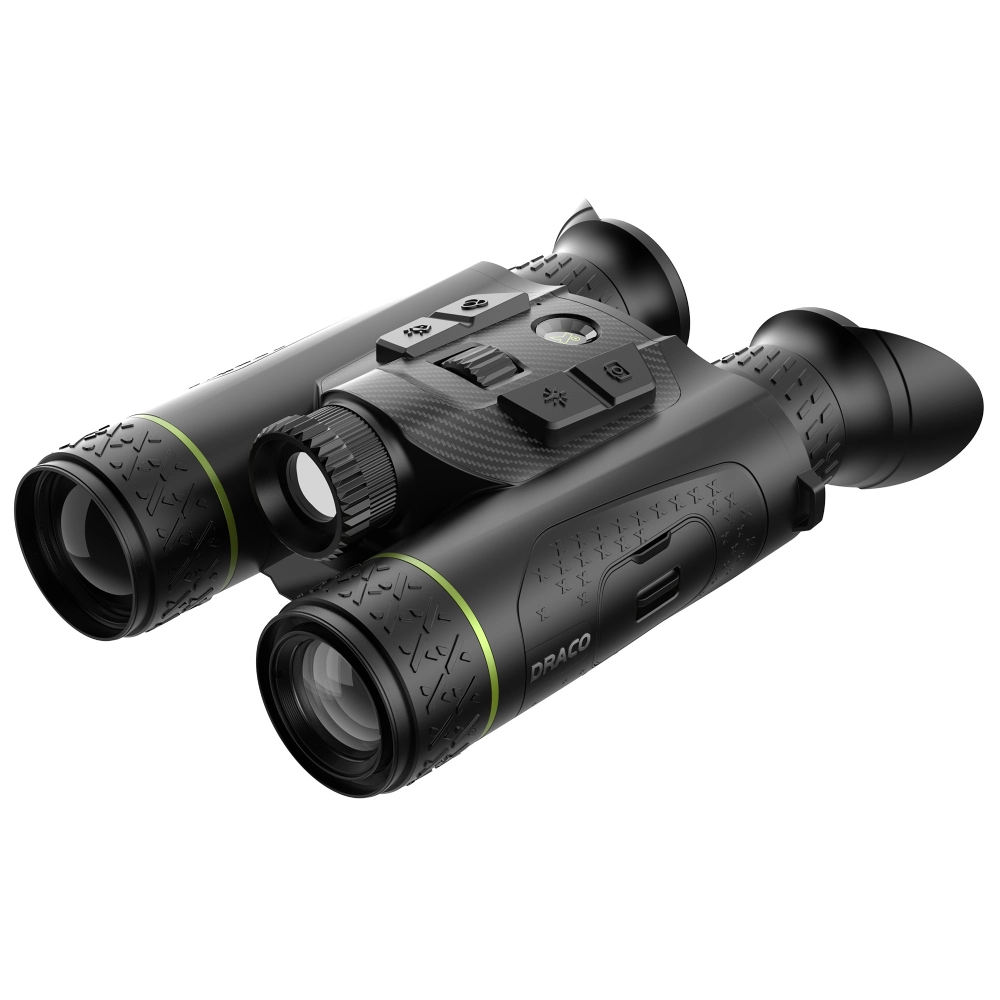

PIXFRA Draco D635N-4K thermal imaging binoculars

PIXFRA Draco D635N-4K – Multispectral Performance for Day and Night
The PIXFRA Draco D635N-4K combines thermal imaging technology and digital 4K day/night vision in a compact, lightweight, and practical thermal binocular. It is aimed at users who want to reliably recognize details in both daylight and complete darkness. The combination of thermal sensor, high-resolution CMOS sensor, rangefinder (LRF), and IR illuminator creates a flexible system that covers many situations in the field.

Thermal Sensor and Optical Performance
The 640×512 thermal sensor with <15 mK NETD operates very sensitively, reliably displaying even small temperature differences. The 35-mm optics provide a field of view of 21.9 × 17.6 meters at 100 meters, as well as a variable magnification of 2.5 to 20×. This allows wildlife to be safely detected even in dense vegetation or confusing environments. The range of up to 1800 meters also offers enough reserves for various hunting and observation situations.

4K Digital Night Vision for Highest Detail Fidelity
The 4K day/night vision is based on a large 1/1.8"-CMOS sensor. This results in clear, detailed images with natural contours. The field of view of 14.4 × 8.8 meters at 100 meters ensures a calm observation effect. When no residual light is available, the detachable 940-nm IR illuminator can be used without unnecessarily disturbing wildlife. This keeps the device flexible for use both during the day and at night. If you need an 850-nm IR illuminator, please contact us.

Ergonomic and Safe Operating Concept
Weighing around 620 grams, the PIXFRA Draco D635N-4K sits lightly and comfortably in the hand. The shape supports a relaxed posture, allowing it to be easily handled even over longer periods. The operating concept with a multifunction wheel and four-button layout is consciously oriented towards classic binoculars. This makes operation intuitive and safe, even in the dark or with gloves. The eye relief can also be adjusted variably between 60 and 74 mm.

Stable Display and Optimized Image Guidance
The PIXFRA Draco D635N-4K utilizes PIPS 3.0 image optimization and electronic image stabilization. This keeps the image clear and steady, even when wind, movement, or other external influences are at play. Additionally, a defog function supports use in fog or high humidity. The 0.49" Full-HD OLED display produces a high-contrast, pleasant image that can be comfortably viewed for extended periods.

Rangefinder for Accurate Assessment
The integrated rangefinder reliably measures up to 1000 meters. This facilitates safe identification and helps to realistically assess distances. This offers a significant advantage, especially in hilly terrain or twilight.

Battery Life and Power Supply
The PIXFRA Draco D635N-4K achieves a runtime of approximately eight hours and can be powered via mains adapter, power bank, or external charger. Since the device also operates with just one 18650 battery, it remains flexible and ready for use, even when a battery needs to be changed.

Transport and Carrying System
The included PIXFRA chest bag securely carries the device on the body. When released, it remains fixed and cannot fall. This allows for easy switching between observation and movement without the device becoming cumbersome.

Optical Channel:

Sensor: 1/1.8'' Progressive Scan CMOS
Sensor Resolution: 3840 × 2160 pixels
Lens: 55 mm (F2.0)
Field of View: 8.0° × 4.5°
Field of View (at 100 m): 14.0 m × 8.8 m
Min. Distance: 7 m
Detection Distance at Night: 400 m
Magnification: 5.5x - 44x (8x)
IR Illuminator: 940 nm (850 nm IR illuminator available upon request)

Scope of Delivery:



Thermal binoculars PIXFRA Draco D635N-4K
PixFra chest bag
Cleaning cloth
4x battery
Charging dock
1x IR illuminator (850nm)
Operating manual
