Pulsar Symbion DXT50 thermal imaging camera

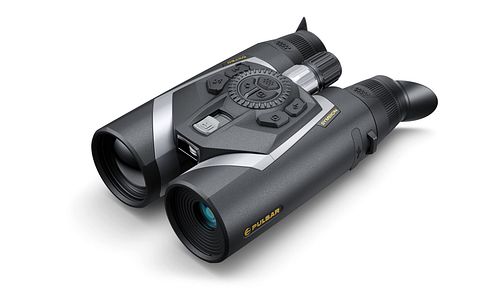

PULSAR Symbion LRF DXT50 Multispectral Thermal Imaging and Night Vision Binoculars
Multispectral Observation Technology in One Device The PULSAR Symbion LRF DXT50 is a high-quality multispectral binocular that combines thermal imaging technology and digital day and night vision in a single optical system. By simultaneously utilizing multiple wavelength ranges (visible light, near-infrared, and long-wave infrared), the device enables reliable observation during the day, at dusk, at night, and under challenging weather conditions such as fog or rain.

The integrated picture-in-picture mode allows for the simultaneous use of both channels, thus supporting both early detection and detailed identification of objects and structures.
High-resolution thermal imaging sensor with excellent sensitivity Equipped with a VOx thermal imaging sensor with 1280 × 1024 pixels at 12 µm and a system NETD < 20 mK, the Symbion LRF DXT50 delivers very high image sharpness and detail fidelity. Even minimal temperature differences are reliably visible, even with low thermal separation or adverse environmental conditions.

The maximum thermal imaging detection range is up to 2,300 meters (based on a 1.8 m tall object).
Digital Night Vision with 4K Resolution The digital channel operates with a 4K resolution and allows for a detailed representation of contours, structures, and fine features. This facilitates the safe assessment of scenes, terrain, and movements in low light or complete darkness.

An integrated 850 nm infrared illuminator with adjustable focusing provides additional detail enhancement at night without emitting visible light.
Integrated Laser Rangefinder up to 1,500 meters The built-in Laser Rangefinder allows for precise distance measurements up to 1,500 m with a measurement accuracy of ± 1 meter. Both single measurements and continuous measurement modes are supported.
Image stabilization for steady observation The switchable digital image stabilization reduces vibrations at high magnification and enables steady, fatigue-free observation over longer periods, even with moving subjects or hands-free use.
High-performance F50/1.0 Germanium Lens The F50/1.0 Germanium thermal imaging lens ensures high light yield and high-contrast image representation in combination with the highly sensitive sensor, even at low temperature contrast.
Flexible Image Adjustment and User Mode Brightness, contrast, and sensitivity can be individually adjusted. Preferred settings can be saved and retrieved at any time via the User Mode. This is supported by the Pulsar Image Boost Technology with advanced algorithms for detail and contrast optimization.
9 selectable color palettes To adapt to different observation scenarios, 9 color palettes are available: White-Hot, Black-Hot, Red-Hot, Rainbow, Red-Monochrome, Sepia, Green, and Violet.
High-Quality HD-AMOLED Displays Two 1920 × 1080 Pixel HD-AMOLED Displays deliver high-contrast, sharp, and color-intensive images with fast response times.
Ergonomic Binocular Design The classic binocular design allows for binocular vision, which improves detail recognition and reduces fatigue. The eye relief is adjustable from 6274 mm. The operation is optimized for one-handed use, supported by 7 function buttons and a central menu wheel.
Photo and Video Recording with 64 GB Storage The integrated recorder allows for the capture of photos (JPG) and videos with sound. The internal 64-GB storage provides ample space for extensive image and video material.
Proximity Sensor and Display Shutdown An integrated proximity sensor automatically turns off the displays as soon as the device is removed from the eyes and turns them back on when it is used. Additionally, the Display off function is available.
Wireless Connectivity with Stream Vision 2 Through integrated Wi-Fi (2.4 / 5 GHz), the Symbion can be connected to the Stream Vision 2 App (iOS & Android). Features include: Live image transmission Device control via smartphone Software updates Media transfer and cloud access
Robust, weatherproof magnesium housing The housing made of magnesium alloy is lightweight, stable, and designed for permanent use. The device is waterproof according to IP67 and operates reliably in the temperature range of -25 °C to +50 °C.
Technical Specifications Overview Device Type: Multispectral Binoculars Sensor: Thermal VOx 1280×1024 / 12 µm / NETD < 40 mK, Digital 4K Objective: 50 mm F1.0 (Germanium) Magnification: 2× to 16× Field of View: 17.5° / 307 m at 1000 m Thermal Image Detection: up to 2300 m Rangefinder: up to 1500 m Display: 2× AMOLED 1920×1080 Storage: 64 GB Interface: USB-C Wi-Fi: 2.4 / 5 GHz Battery Life: approx. 4 hours Weight: approx. 1000 g (including accessories) Dimensions: 207 × 132 × 73 mm Protection Class: IP67 Temperature Range: -25 °C to +50 °C
