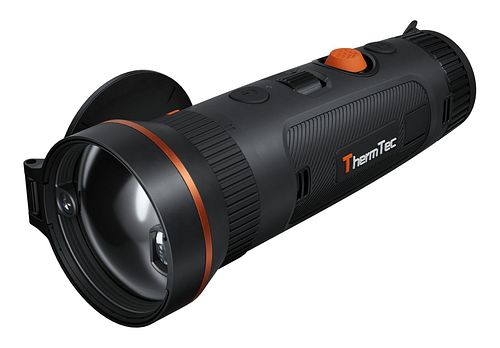

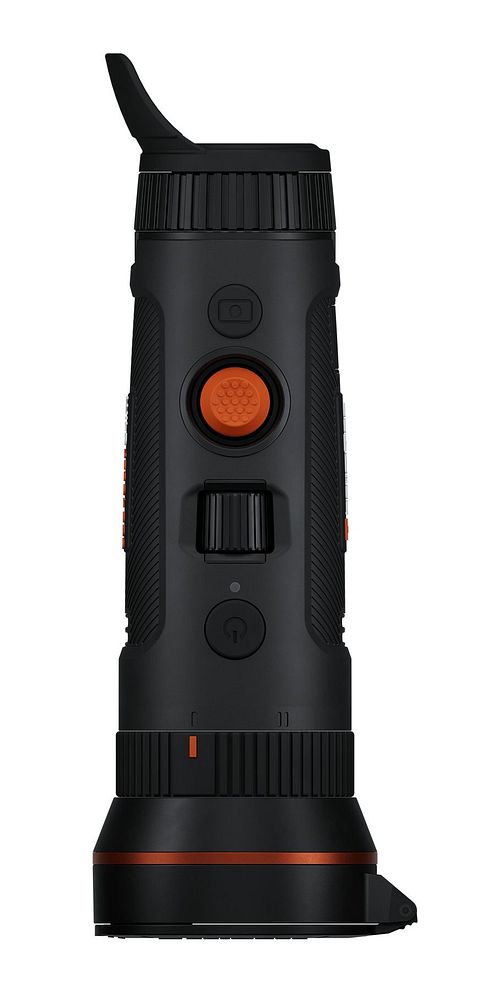

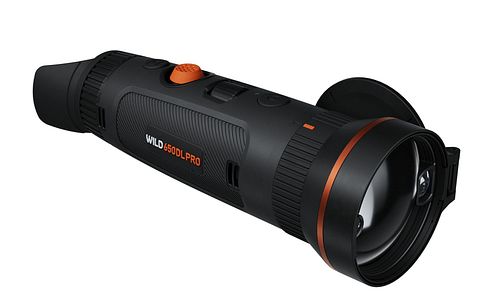

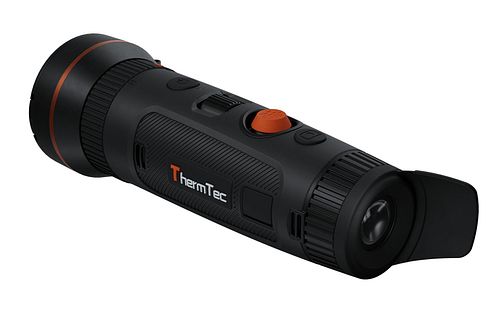

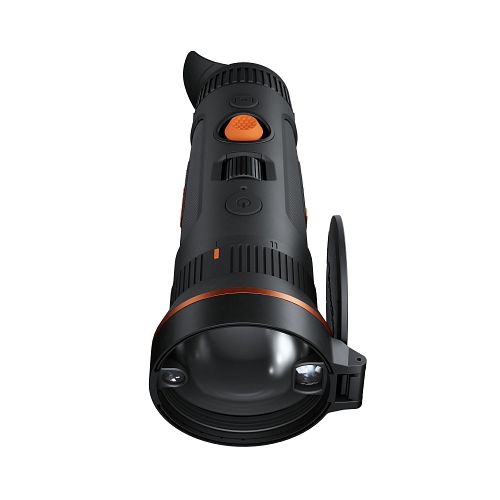

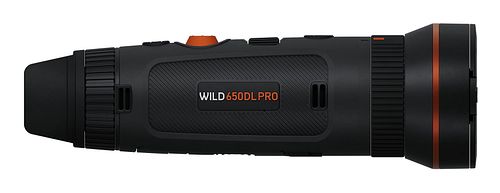

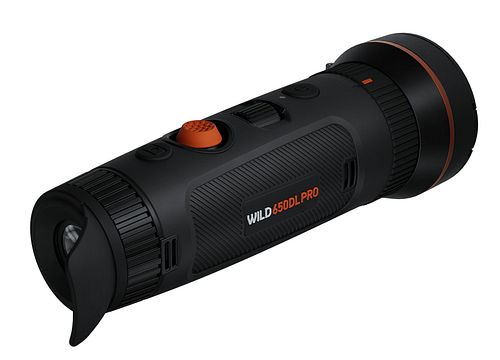

ThermTec Wild 650DL PRO thermal imaging camera

ThermTec WILD 650DL PRO thermal imaging camera with dual-field system, laser rangefinder, and 640 sensor
Multispectrum Thermal Imaging Monocular with Dual Optics for Flexible Observation The ThermTec WILD 650DL PRO thermal imaging camera is an advanced thermal imaging monocular from the WILD-D series and combines modern sensor technology with an innovative dual-field system. Equipped with two integrated lenses (25 mm and 50 mm), a highly sensitive 640 × 512 VOx sensor, an integrated laser rangefinder (LRF), and a high-resolution 0.5-inch AMOLED display, the device allows for flexible observation at short and long distances.
Dual-Field System with 25 mm and 50 mm Lens The integrated Dual-Field System allows for quick switching between two optical base magnifications: 1.8× optical magnification with 25 mm lens for a wide field of view 3.6× optical magnification with 50 mm lens for detailed target recognition The switch is done via a separate rotary switch and is possible without refocusing. This allows users to observe large areas and then specifically capture details without having to readjust the image sharpness.
Highly Sensitive 640 Sensor with NETD = 15 mK The thermal imaging camera features an uncooled VOx microbolometer sensor with 640 × 512 pixels and a system performance (NETD) of = 15 mK. The tuned image algorithm differentiates even small temperature differences. This supports stable image quality even in high humidity, fog, or low temperature contrasts between the object and the environment.
Integrated Laser Rangefinder up to 1000 m The integrated Laser Rangefinder (LRF) allows for precise distance measurements up to 1000 meters and works with both lenses (25 mm / 50 mm).
The distance display is shown directly on the screen and significantly expands the device's applications during observation.
High-Resolution 0.5-Inch AMOLED Display The large 0.5-inch AMOLED display with 1600 × 1200 pixels offers a detailed representation with high contrast. Thanks to self-emissive OLED technology, the display operates reliably even at low temperatures. The display backlight can be adjusted in four colors (Gray, Blue, Purple, Red).
Ergonomic Operation and Finger Focusing The revised joystick control allows for precise one-handed operation. Additionally, a top-mounted finger focusing wheel is installed, which allows for sensitive adjustment of sharpness. The foldable, horn-shaped eyecup makes it easier to use for glasses wearers.
Image Adjustment, Color Palettes, and Recording Functions Extensive image settings are available for individual customization: Sharpness, image noise, brightness, and contrast each in 10 levels 2 scene modes 6 color palettes, individually deactivatable Additionally, the device supports: Image and video recording Playback function directly on the device Picture-in-Picture mode (PIP) Hotspot marking The data is stored in the internal 64-GB memory.
Battery System, Runtime, and Connectivity The thermal imaging camera is powered by replaceable 18650 Li-Ion batteries.
Included in the package are two batteries, allowing for a runtime of up to 12 hours.
The battery change is done via a redesigned battery cover for quick access.

Through the hotspot function (WLAN), the device can be connected to a smartphone or tablet to display live images as well as stored content.
Robust housing and compact design The rubberized magnesium housing is protected against dust and water according to IP67.
The device is designed for an operating temperature range of 20 °C to +50 °C and features an integrated 1/4"-tripod thread.
Technical Data Overview Sensor & Optics Sensor: VOx, uncooled Resolution: 640 × 512 pixels Pixel size: 12 µm Frame rate: 50 Hz NETD: < 15 mK (system performance) Objectives: 25 mm / 50 mm Aperture: F0.9 Field of View 25 mm: 17.5° × 14° / 30.6 m @100 m 50 mm: 8.8° × 7.0° / 15.4 m @100 m Magnification Optical: 1.8× / 3.6× Digital: 1× 4× continuously variable Display Type: AMOLED Size: 0.5" Resolution: 1600 × 1200 Diopter: 5 to +5 Ranges (Deer) Detection: 2600 m Recognition: 870 m Identification: 290 m Functions Laser rangefinder: Yes Hotspot/WLAN: Yes PIP: Yes Hotspot marking: Yes Recording & playback: Yes Memory & Power Internal memory: 64 GB Battery: Li-Ion 18650 Runtime: approx. 6 h per battery / up to 12 h with two batteries USB power supply: 5 V General Protection class: IP67 Weight without battery: 653 g Dimensions: 221 × 81 × 71 mm Operating temperature: -20 °C to +50 °C
