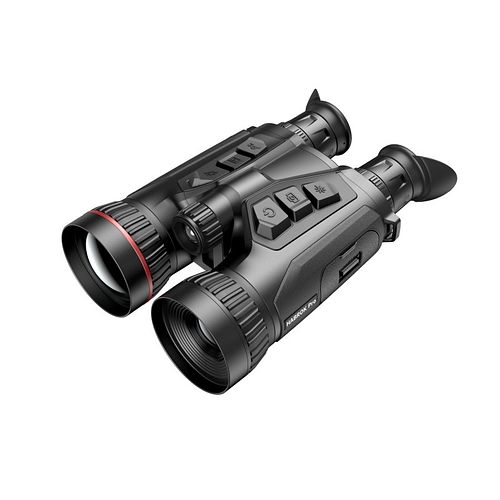

HIKMICRO Binocular Habrok Pro HX60LS

High-Resolution Multi-Spectrum Binoculars for Professional Observation Applications
The HIKMICRO Habrok Pro HX60LS is a powerful multi-spectrum binocular that combines thermal imaging and digital night vision technology in a robust, ergonomic housing. It is designed for demanding observation tasks during the day, at dusk, and in complete darkness, providing a clear, stable image even under challenging weather conditions such as fog or rain.
Thermal imaging technology with maximum detail depth
The integrated thermal imaging module is based on a highly sensitive VOx sensor with a resolution of 1280 × 1024 pixels and a NETD value of less than 15 mK. In combination with the bright 60 mm F 1.0 lens, even the smallest temperature differences are displayed clearly and with high contrast. The frame rate of 50 Hz ensures smooth and fluid playback even during movement.
4K Digital Sight System for Day and Low Light Observation
Additionally, the Habrok Pro HX60LS features an integrated 4K digital camera with a resolution of 3840 × 2160 pixels. The 60 mm F 2.2 lens allows for razor-sharp detail representation in daylight as well as in low light conditions. A replaceable 850 nm IR illuminator expands the possibilities for use in darkness.
Integrated Distance Measurement and Orientation
An integrated laser rangefinder with a range of up to 1,000 meters supports a realistic assessment of distances in the field. The system is complemented by GPS and a digital compass, allowing for better orientation of positions and viewing directions.
High-Resolution OLED Display and Comfortable Operation
The high-contrast 0.49 inch OLED display with a resolution of 1920 × 1080 pixels provides a pleasant, detailed representation. Multiple color palettes for thermal imaging and digital view allow for individual adjustment to the environment and personal preferences. The adjustable eye distance and diopter compensation ensure high visual comfort.
Recording Functions and Connectivity
Photo, video, and audio recordings can be stored directly on the device. The internal 64 GB storage provides ample space for extensive documentation. Live images and files can be transferred to mobile devices via WLAN.
Robust, durable, and mobile
The Habrok Pro HX60LS is protected against dust and water according to IP67 and is designed for use in demanding environments. Power is supplied via replaceable battery packs with a runtime of up to 5.5 hours. Additionally, external power supply via USB-C is supported.
FAQ about the HIKMICRO Habrok Pro HX60LS
What applications is the device suitable for?

For wildlife and nature observation, security tasks, rescue operations, as well as maritime and industrial applications.

Can thermal imaging and digital vision be used together?

Yes, both systems are fully integrated and can be used flexibly.

Is the device suitable for longer operations?

Yes, due to replaceable batteries, robust construction, and extensive features.
Technical Data

CategoryMulti-Spectrum Thermal Imaging Binoculars
ModelHIKMICRO Habrok Pro HX60LS

Thermal Imaging Module
SensorVOx, 1280 × 1024 px
Pixel pitch12 µm
NETD< 15 mK
Frame rate50 Hz
Lens60 mm / F 1.0
Detection rangeup to 3,100 m
Magnification2.6× – 20×
Field of view at 100 m25.6 × 15.4 m

Digital Sight Module
SensorCMOS, 3840 × 2160 px (4K)
Lens60 mm / F 2.2
Magnification5.5× – 22×
IR Illuminator850 nm, replaceable

Display & System
DisplayOLED 0.49 inch, 1920 × 1080 px
Storage64 GB internal
RecordingsPhoto, Video, Audio
Wi-FiYes
GPS / CompassYes / Yes

Distance Measurement
Rangeup to 1,000 m
Accuracy± 1 m

General
Protection classIP67
Operating temperature−30 °C to +55 °C
Battery lifeup to 5.5 hours
Weightapprox. 1,050 g including battery
