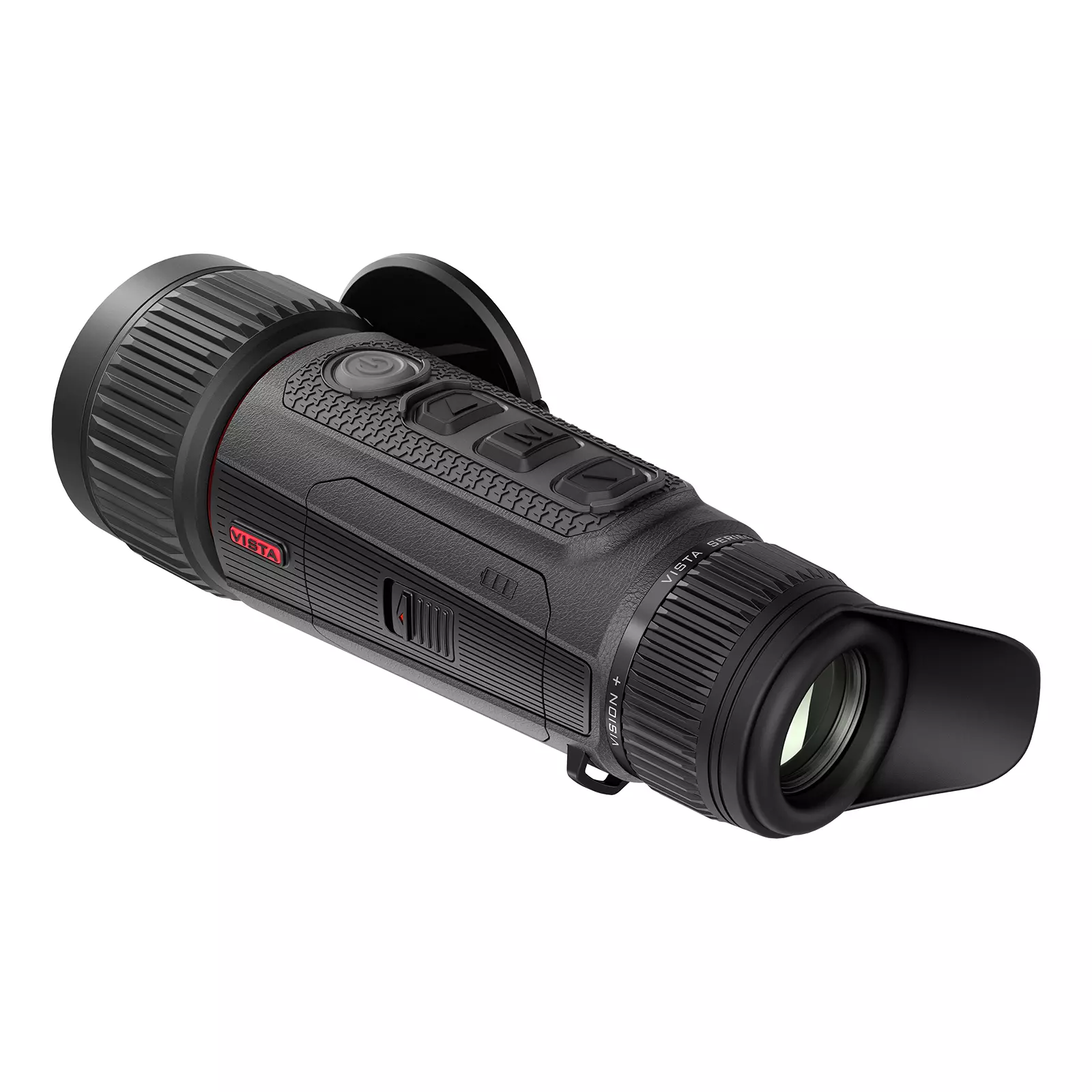

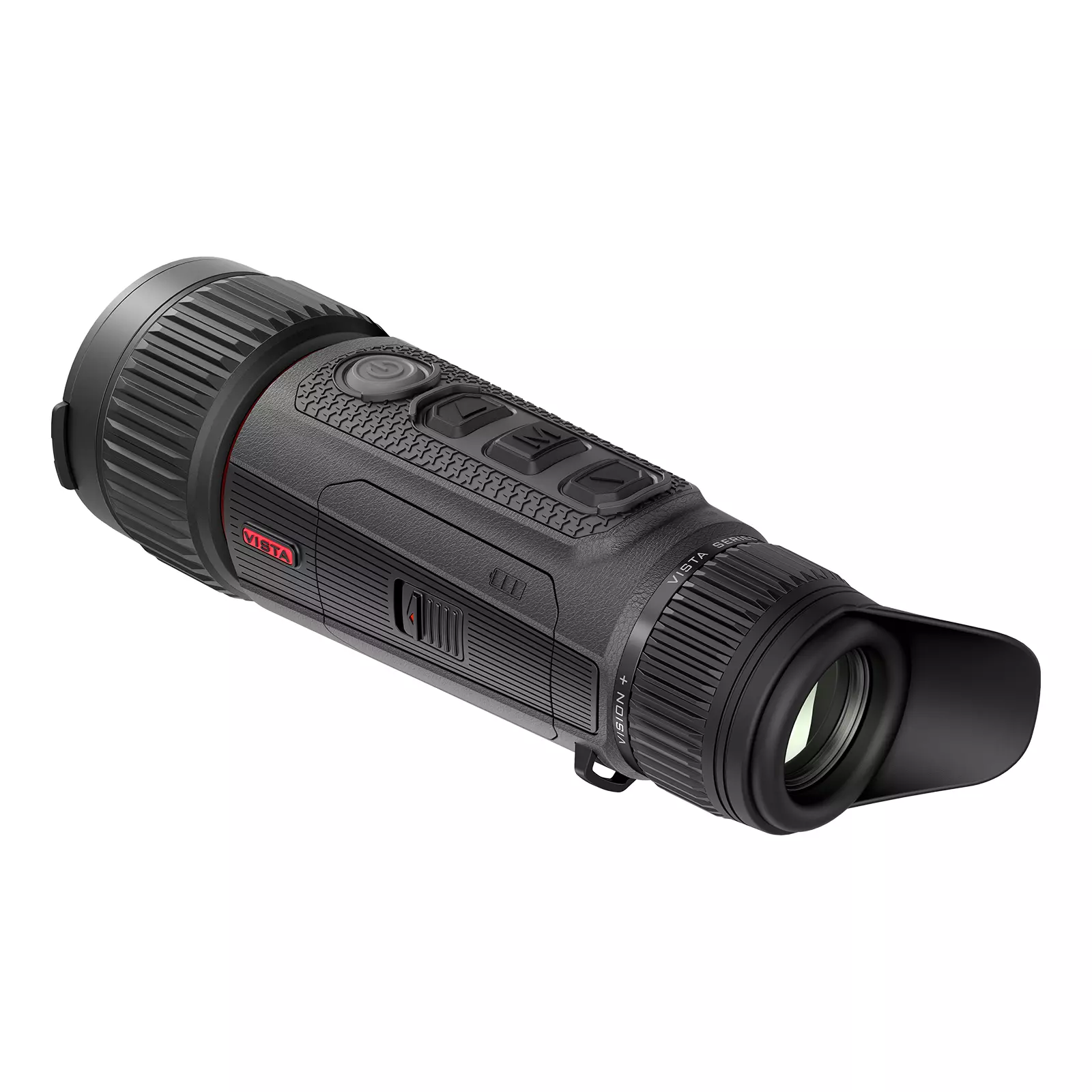

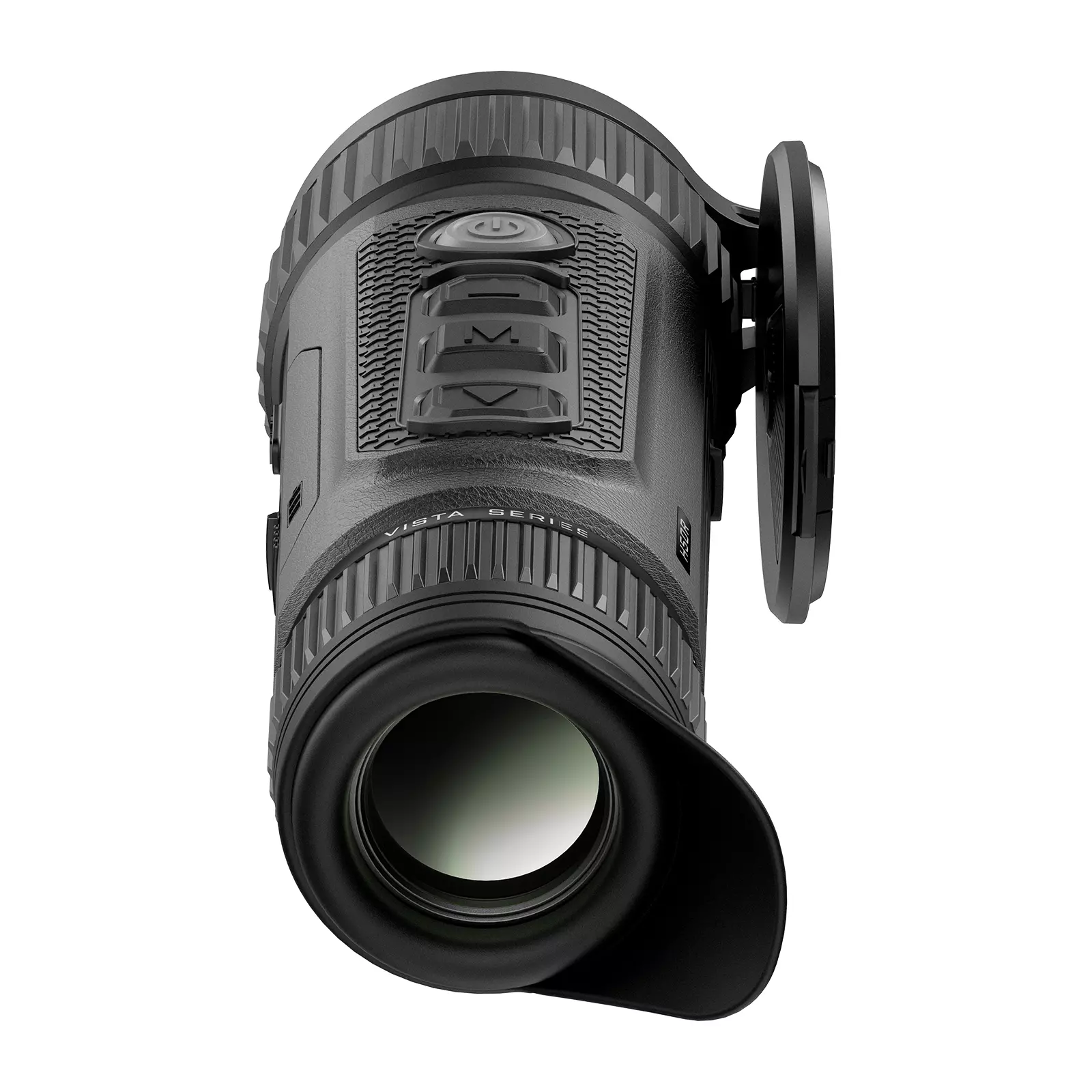

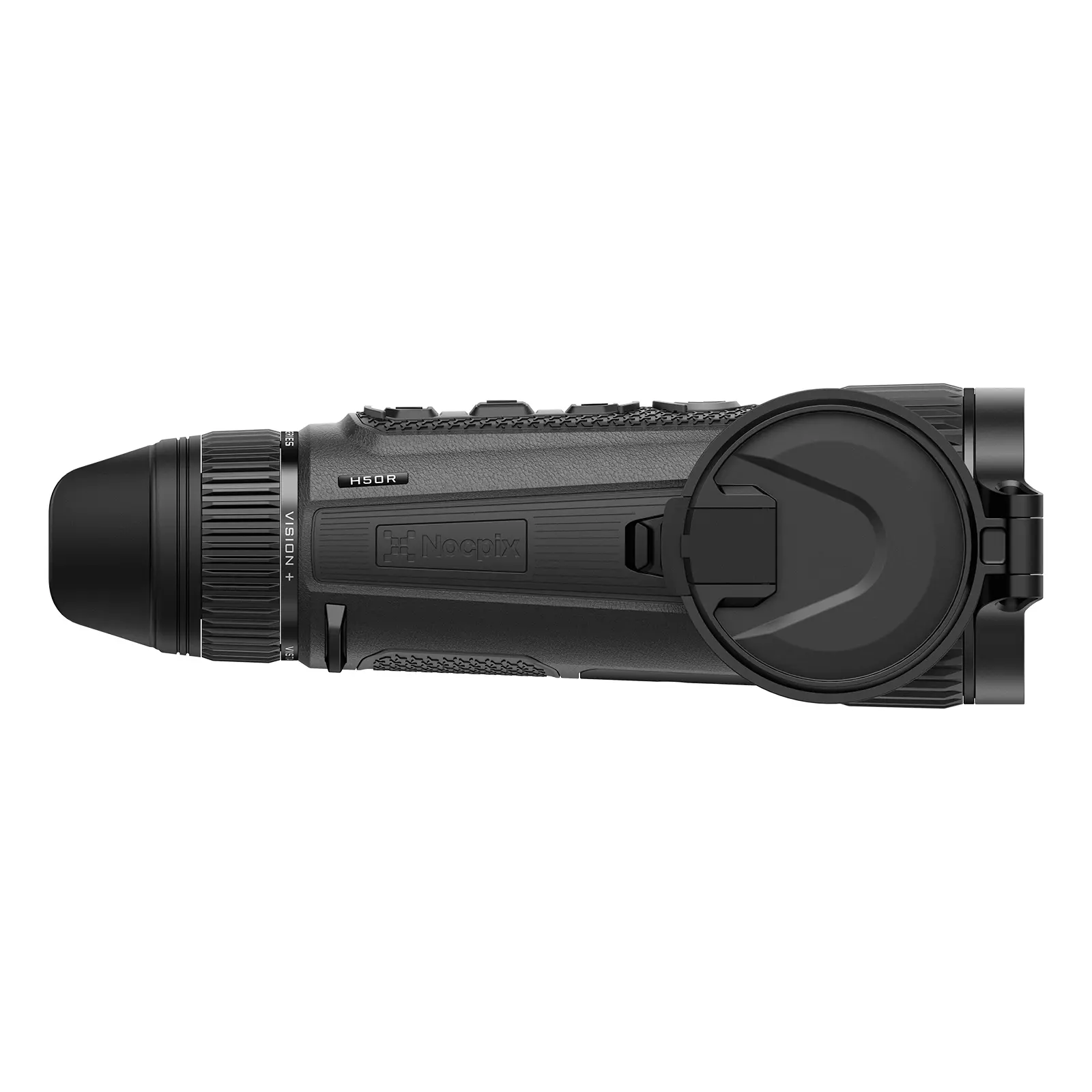

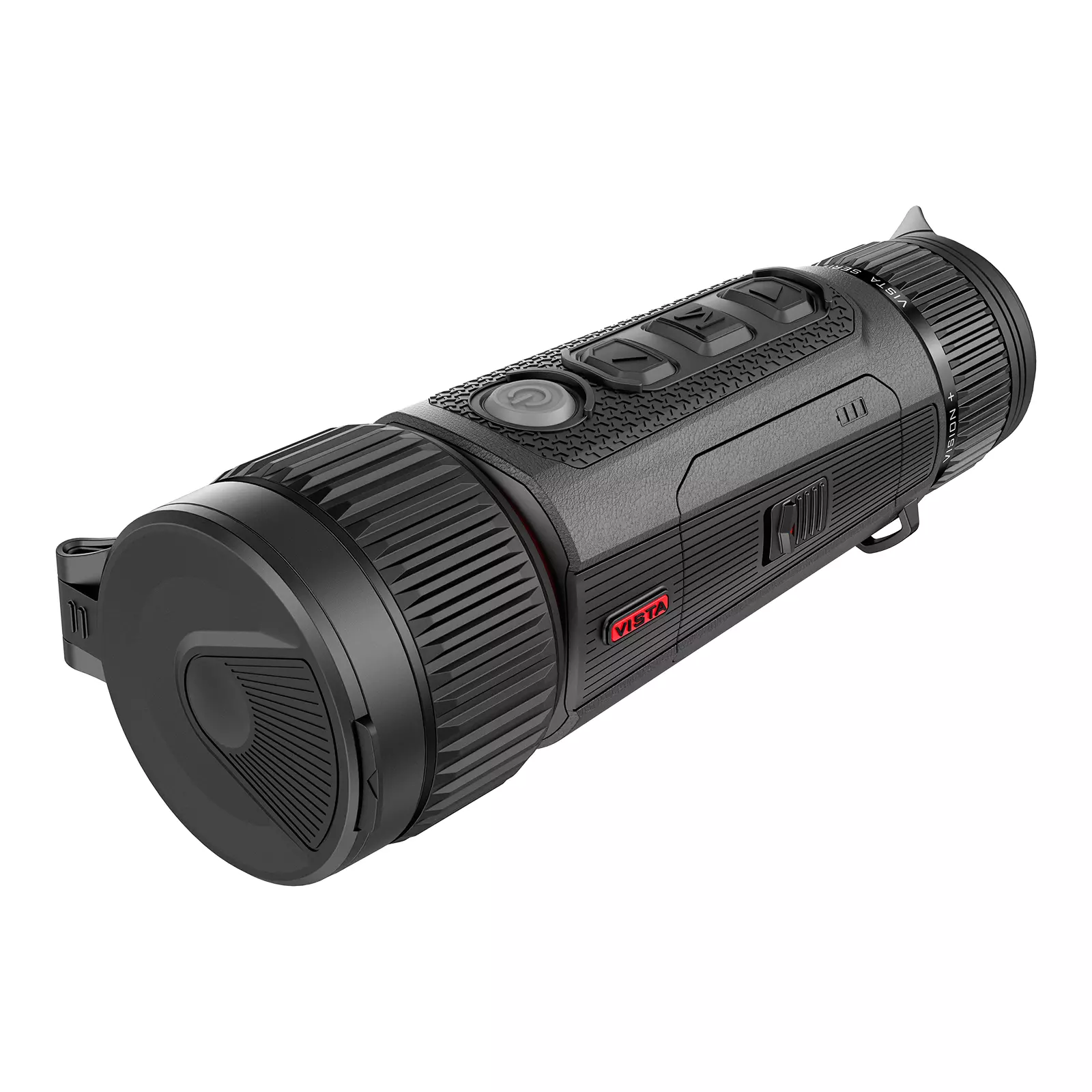

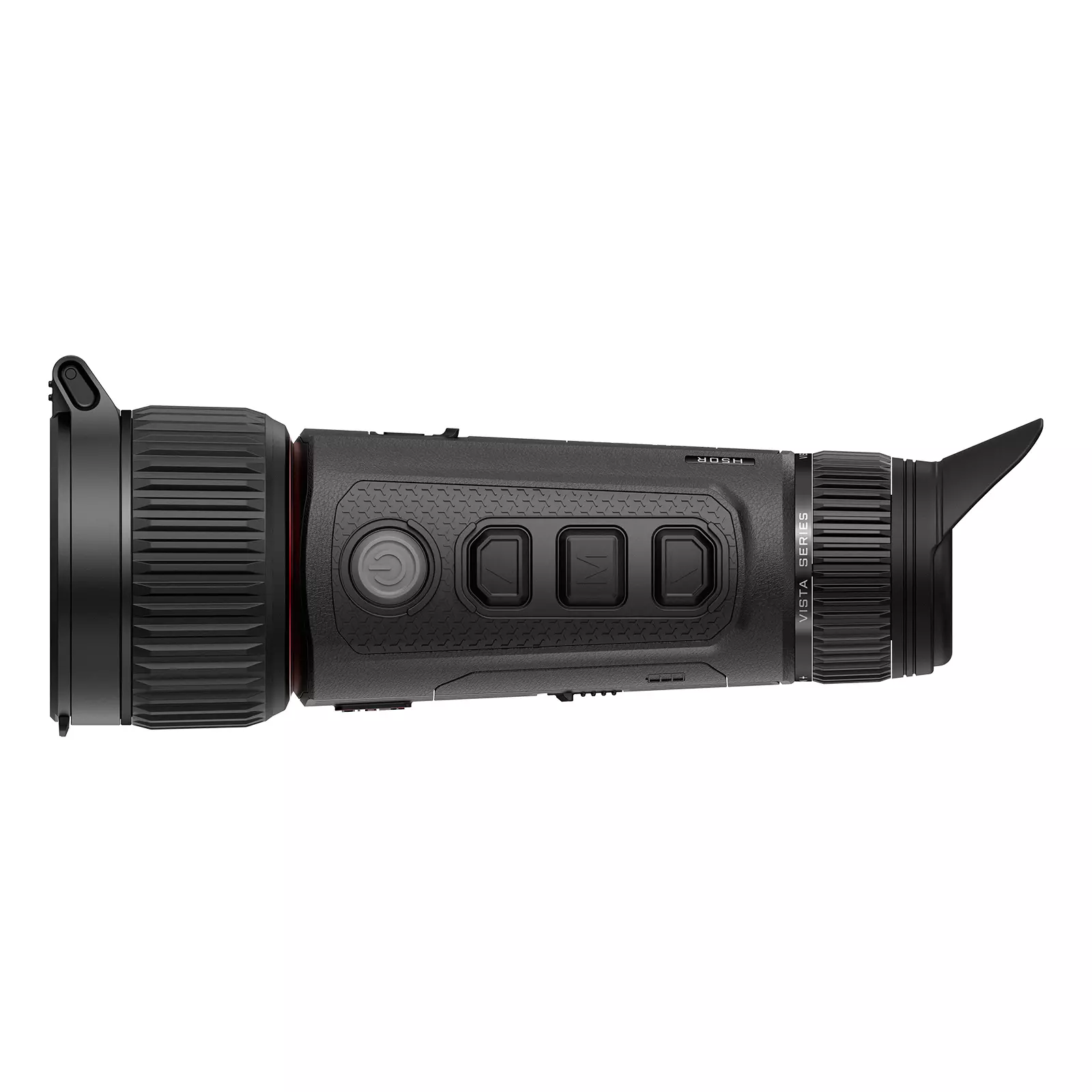

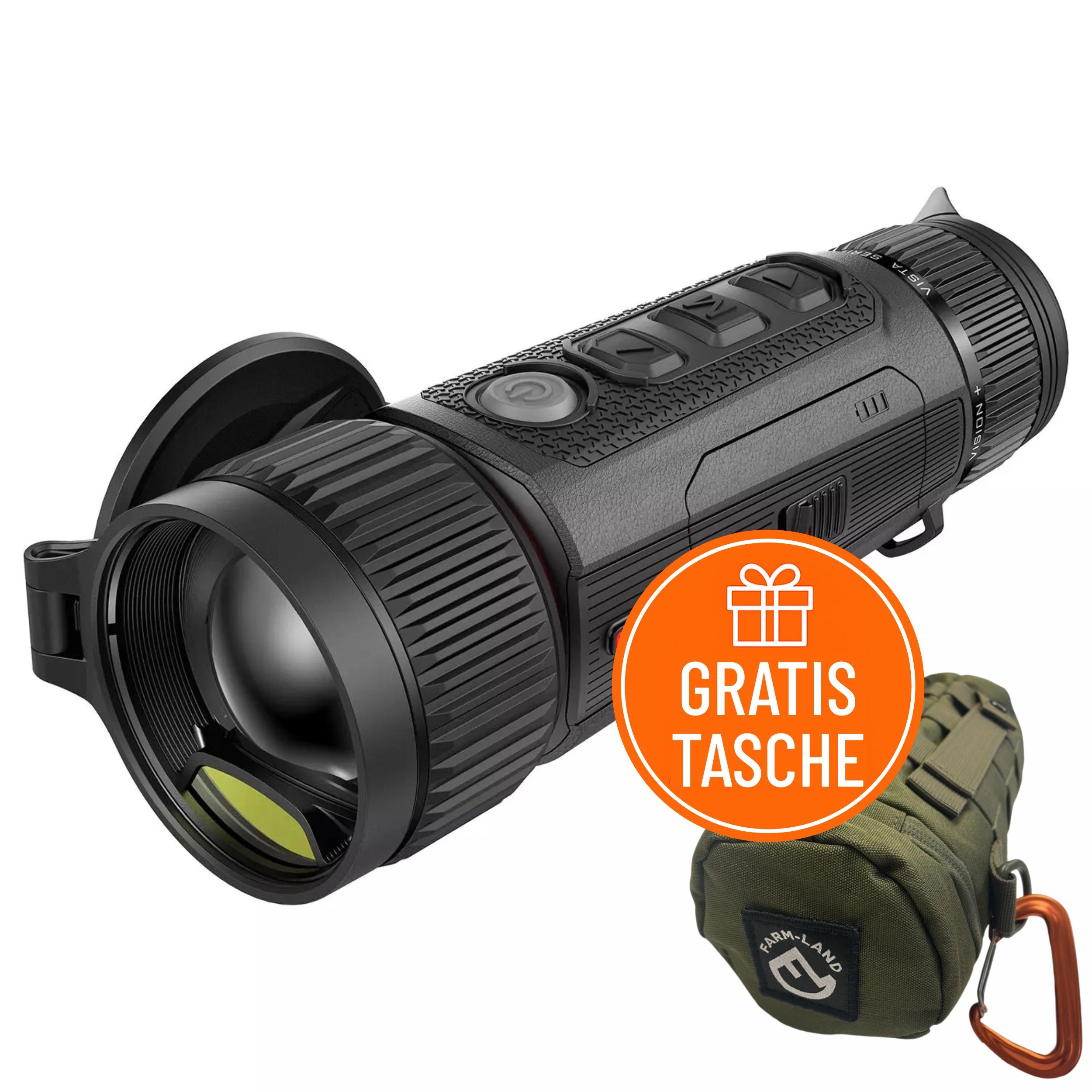

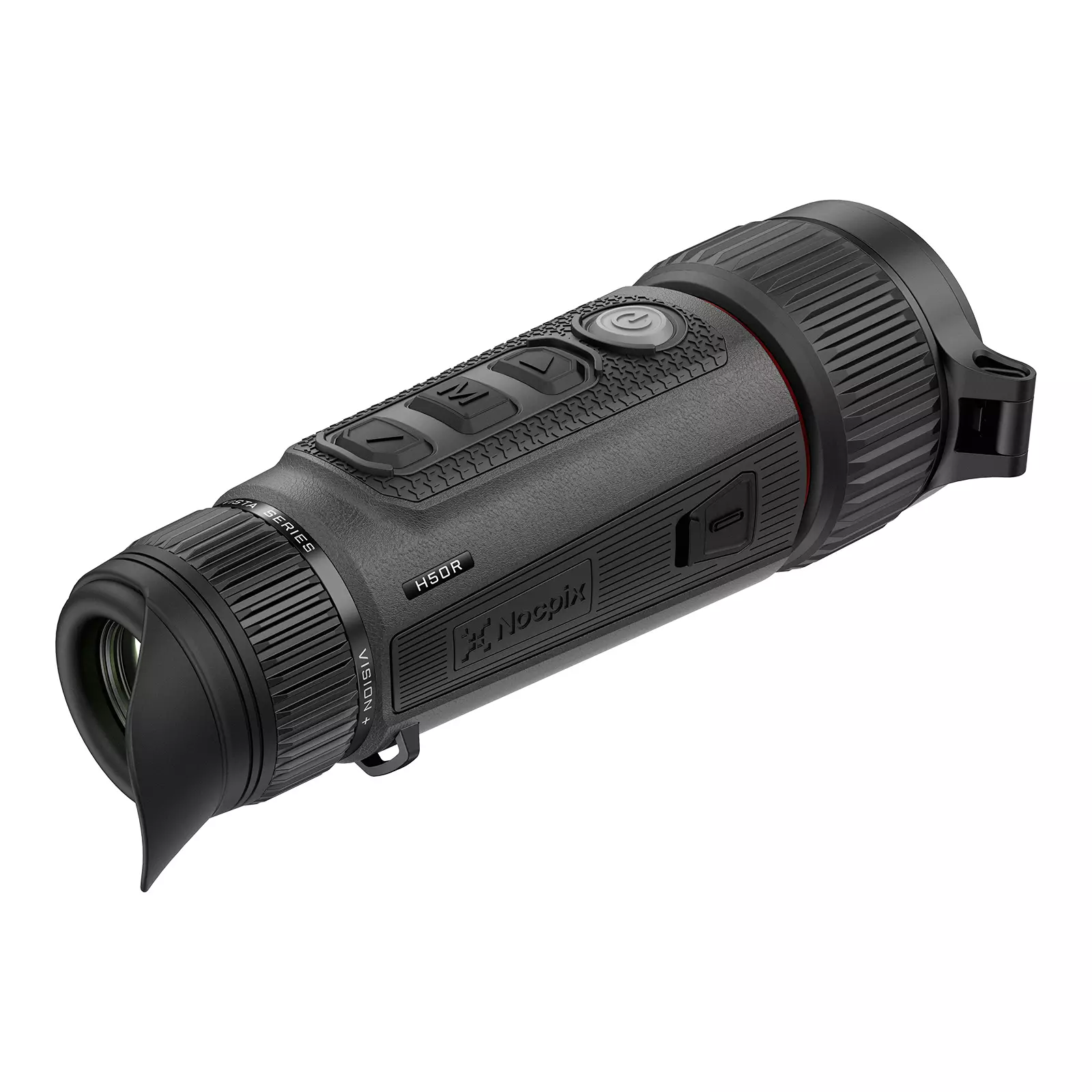

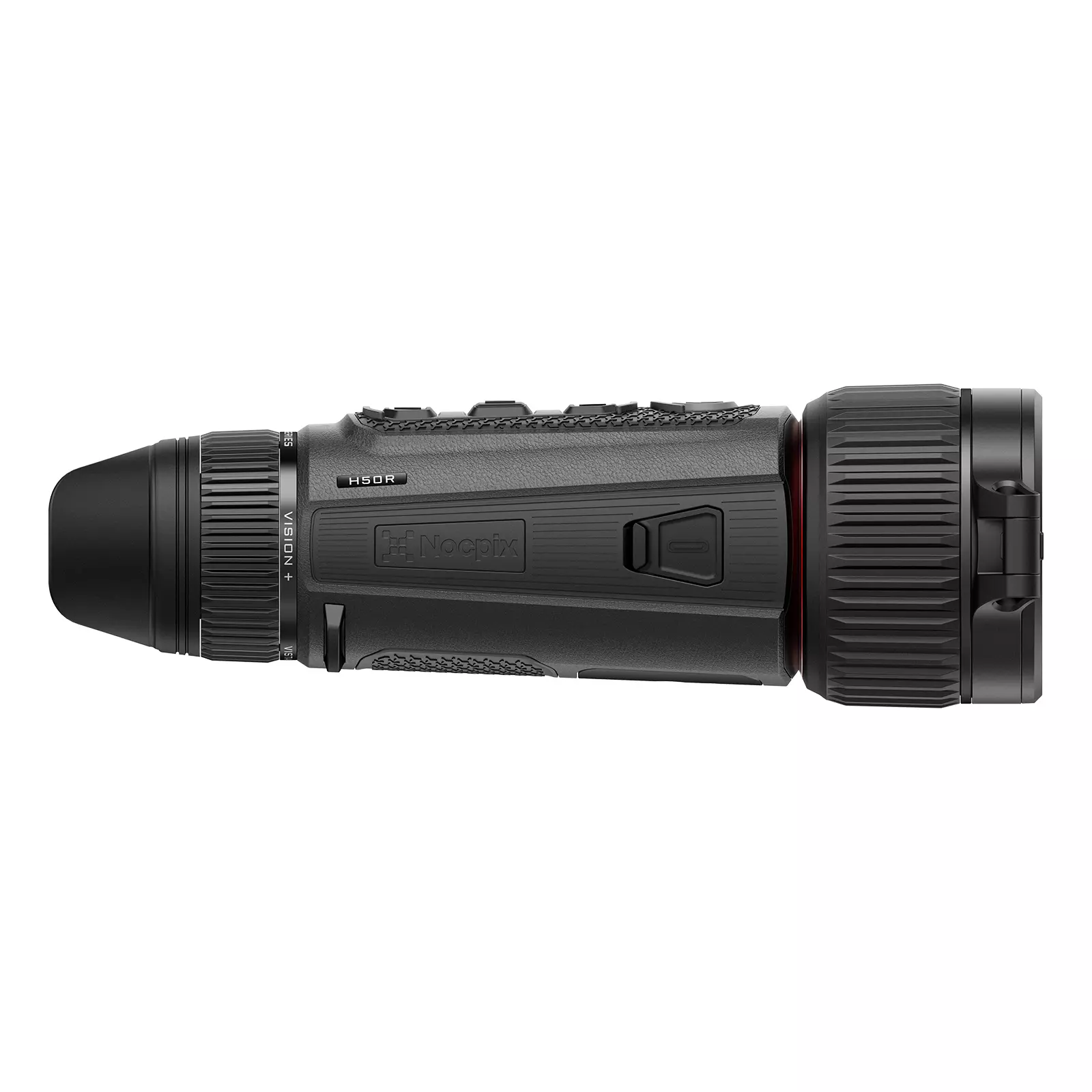

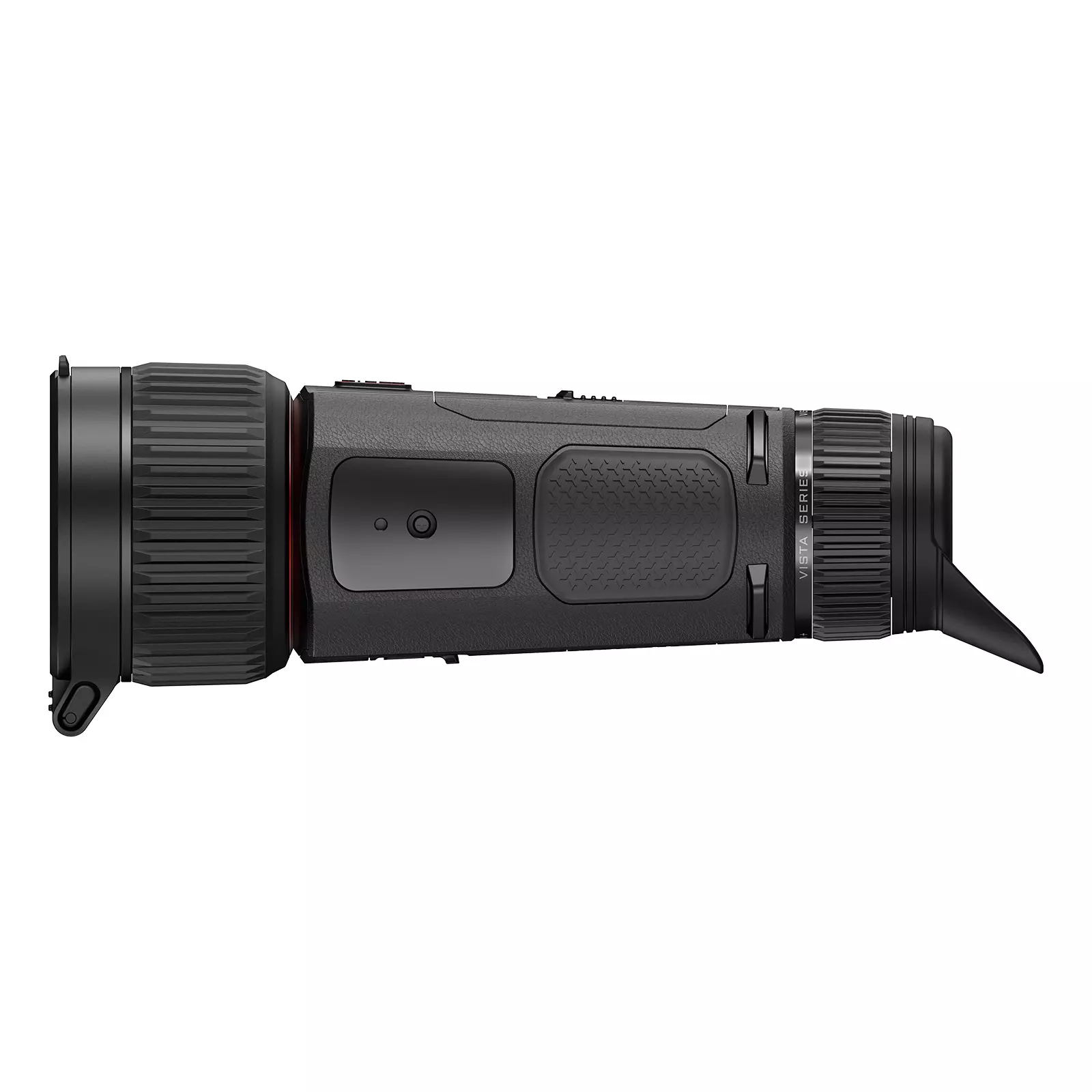

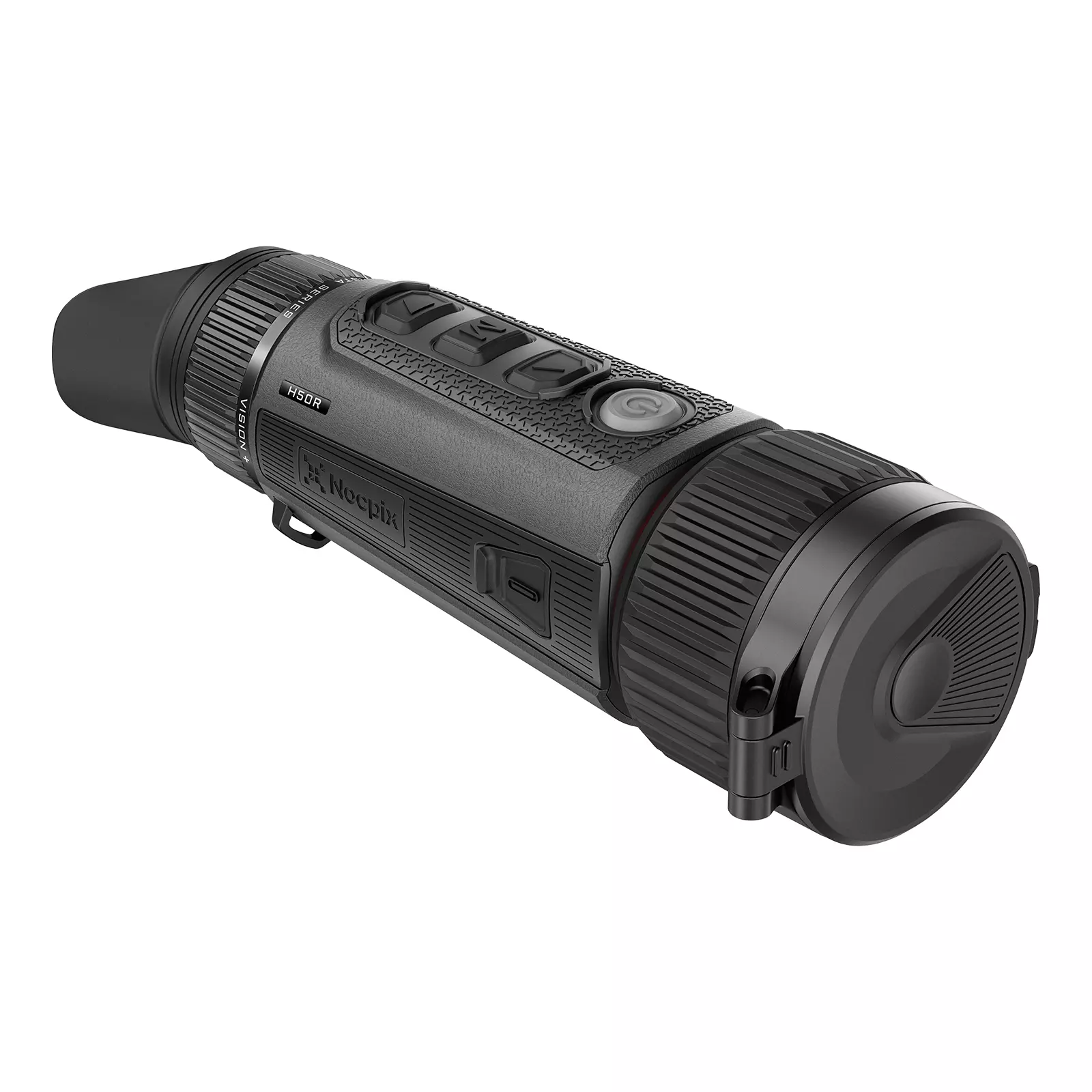

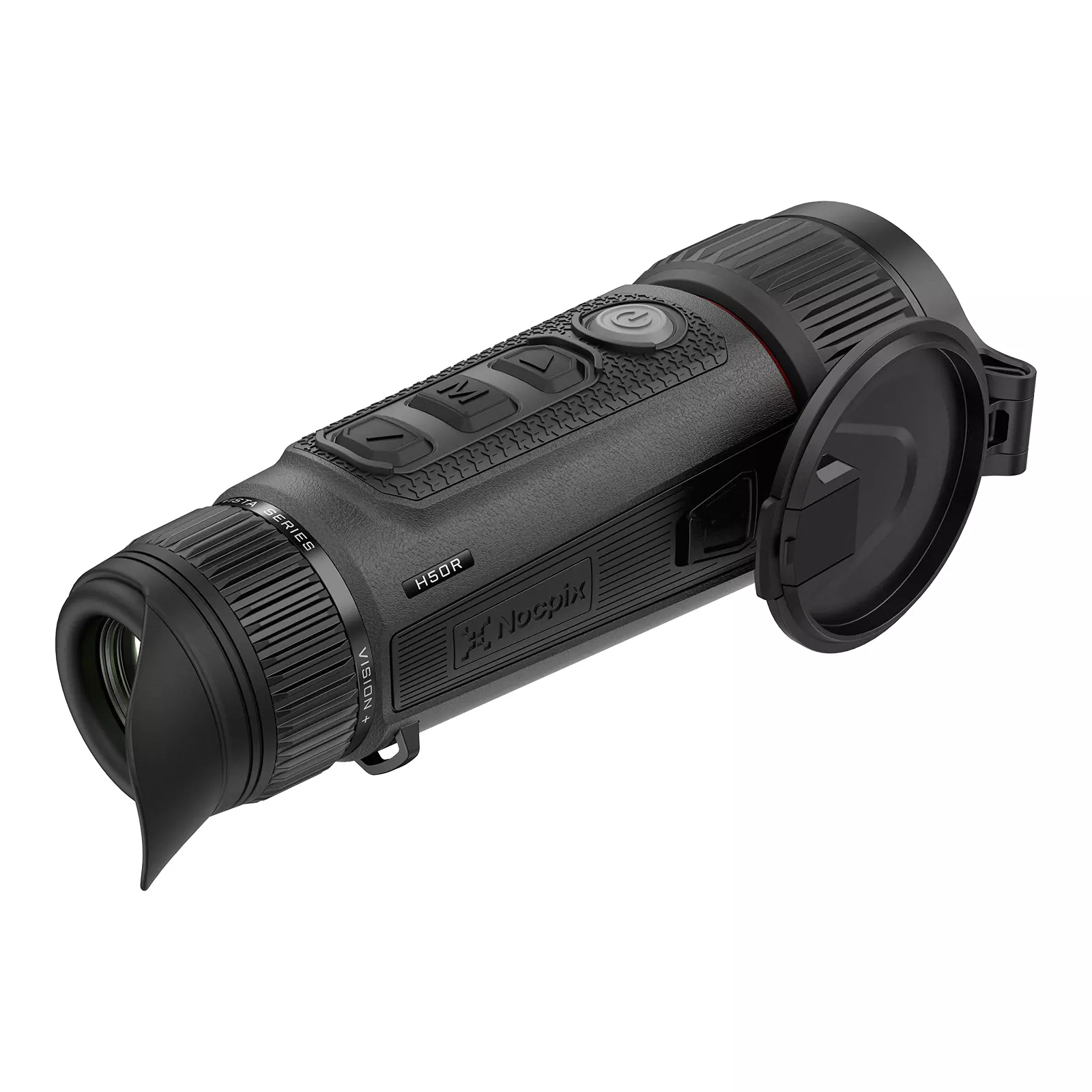

Nocpix VISTA H50R LRF thermal monocular including FREE BAG

Powerful Thermal Imaging Monocular with Round Display and Distance Measurement
The Nocpix VISTA H50R LRF is a high-quality thermal imaging monocular for demanding observations in darkness, fog, or difficult lighting conditions. As part of the VISTA series, this model impresses with a particularly pleasant viewing experience thanks to the round AMOLED display, strong optics, and practical features for outdoor use.
Clear thermal image contrast thanks to sensitive technology
The VISTA H50R features a 640 × 512 pixel thermal sensor with a pixel size of 12 µm. Combined with a thermal sensitivity of ≤ 15 mK, fine temperature differences are displayed with high contrast. The image frequency of 60 Hz ensures a smooth, stable display – even with movement in the observation field.
Round AMOLED Display with Very High Resolution

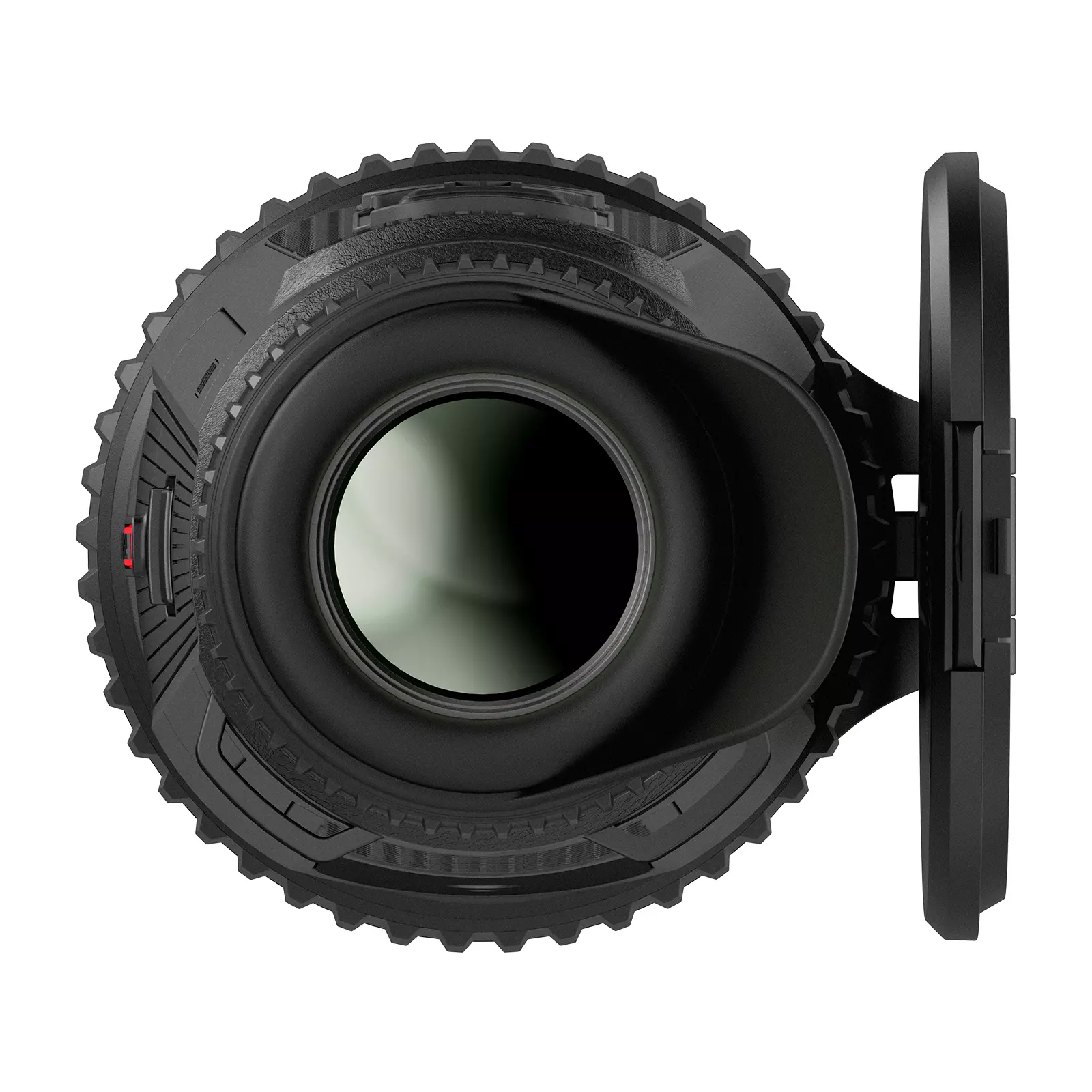

A special feature of the VISTA H50R is the round AMOLED display (1.03 inches) with a resolution of 2560 × 2560 pixels. The round shape utilizes the available space very efficiently and provides a natural image perception. Combined with an exit pupil of 8 mm, it creates a comfortable viewing experience that remains pleasant even during prolonged use.

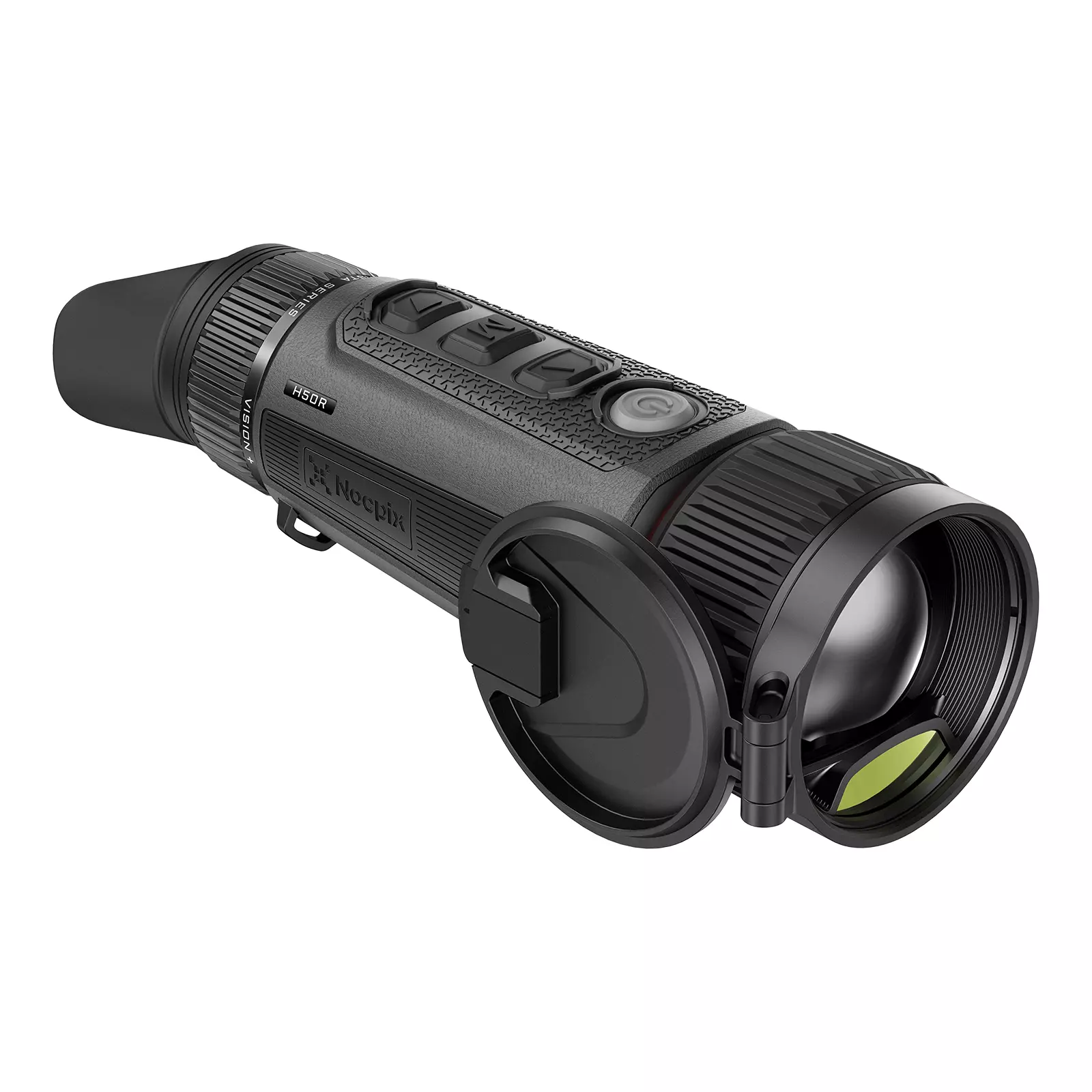

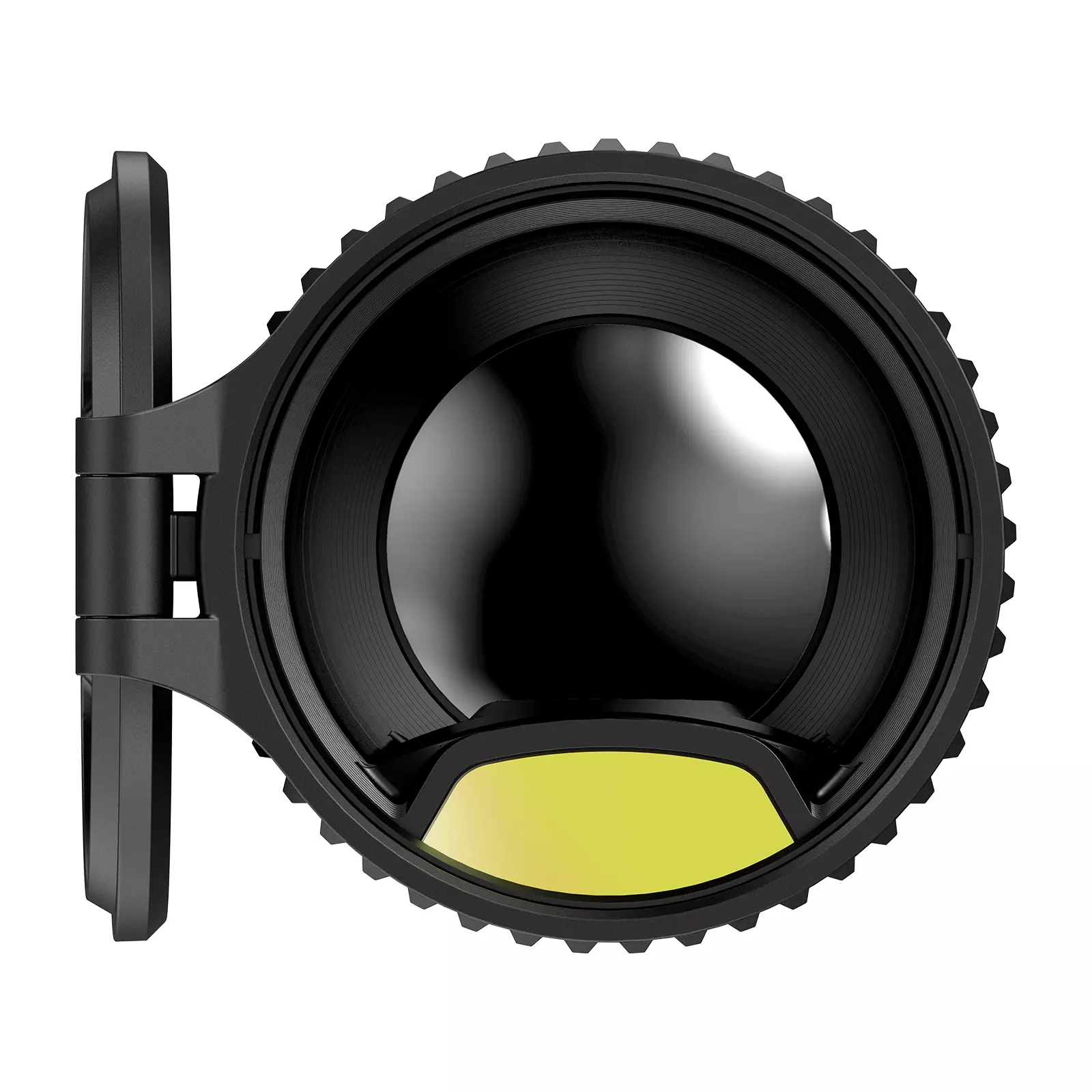

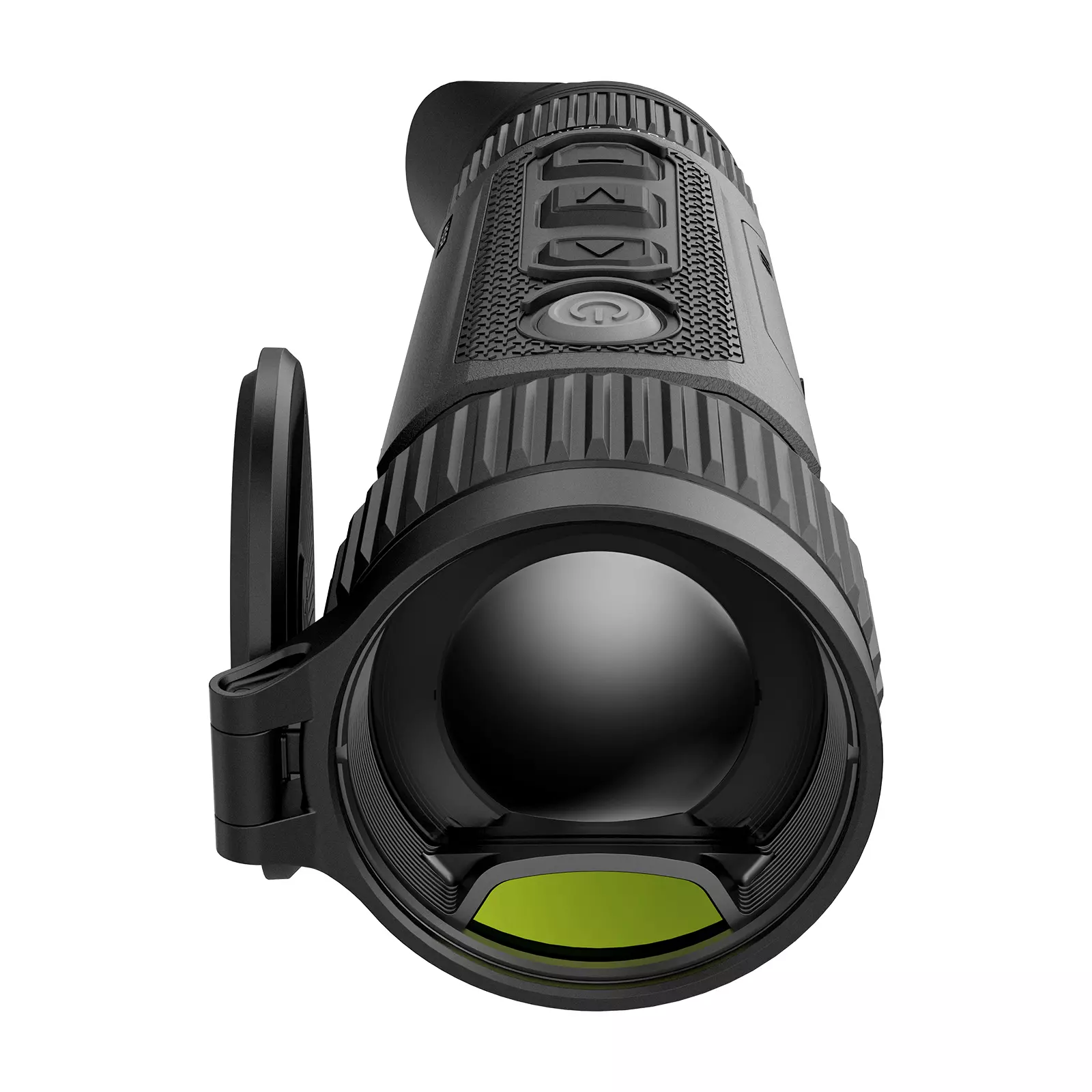

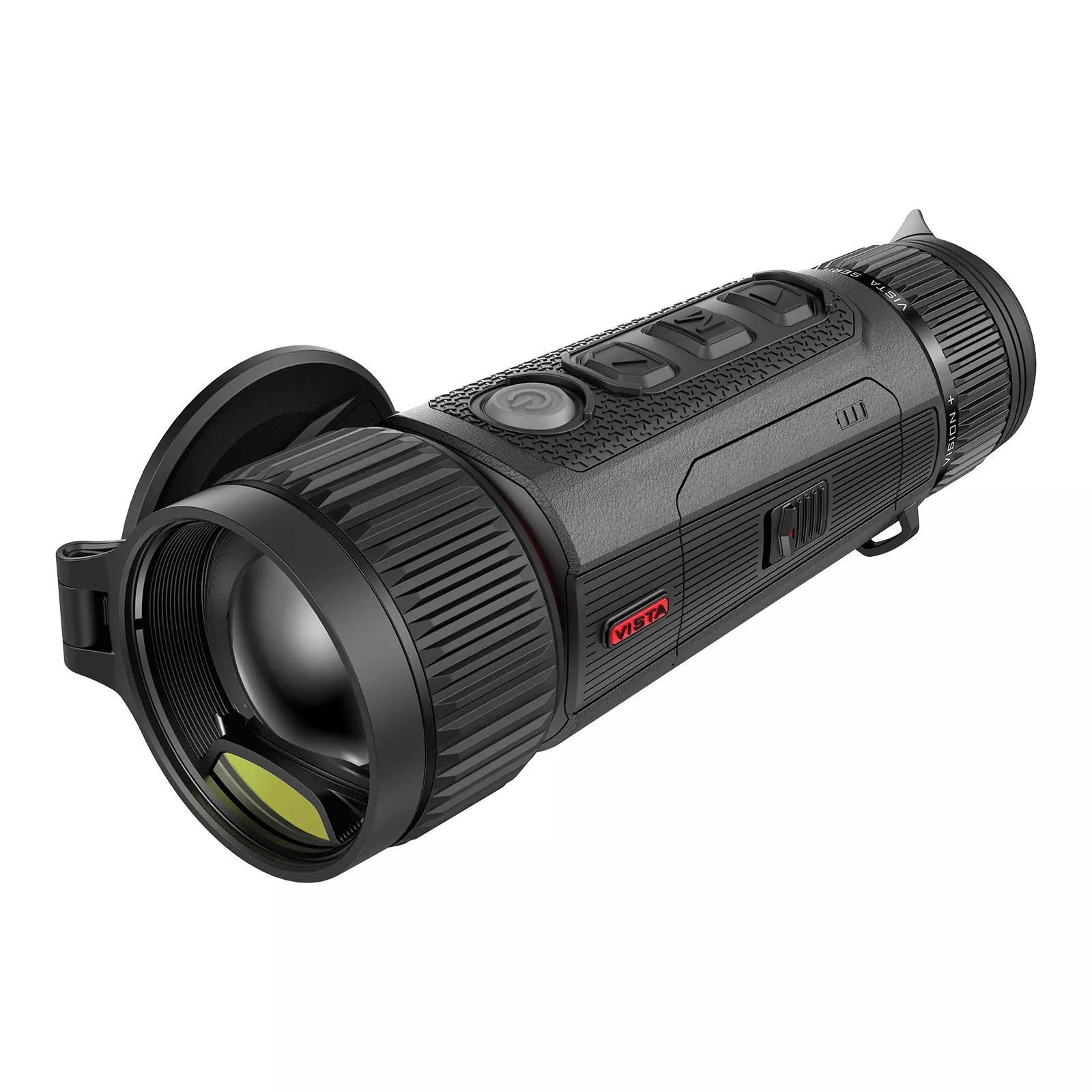

High-light 50 mm F0.9 lens and integrated distance measurement
The 50 mm F 0.9 lens is designed for high light intake and supports a bright, detailed representation. Additionally, the device features integrated distance measurement with a range of up to 1,200 meters, allowing for better estimation of distances in the field.
Individual Display and Quiet Operation
Multiple color palettes – including eye-friendly variants – allow for individual customization to the environment, weather, and personal preferences. The quiet controls support discreet use, while the intuitive operation provides quick access to important settings.

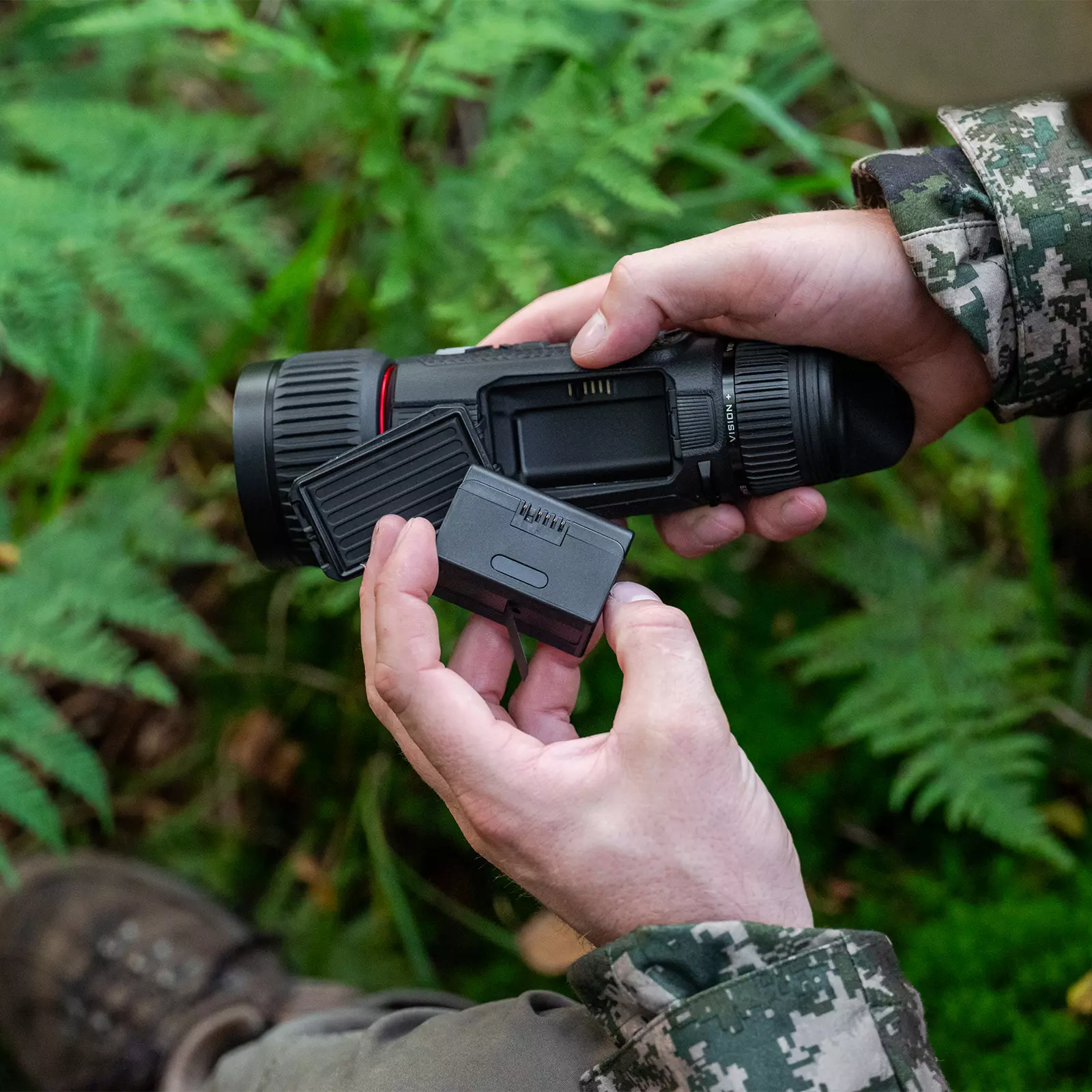

High endurance through interchangeable batteries
The Nocpix VISTA H50R operates with two interchangeable batteries. Depending on usage, a long operating time is possible; it is conveniently charged via USB-C directly on the battery. This makes the device suitable for longer observation periods in outdoor areas.
FAQ about the Nocpix VISTA H50R LRF
What is the VISTA H50R suitable for?

For wildlife and environmental observation in darkness, limited visibility, or at greater distances.

What is the advantage of the round display?

The round AMOLED display allows for a very natural representation and uses the display area efficiently.

How is the power supply provided?

Via two interchangeable batteries that can be charged via USB-C.
Technical Specifications

CategoryThermal Imaging Monocular
SeriesVISTA
ModelH50R LRF
Objective50 mm / F 0.9
Sensor Resolution640 × 512 px
Pixel Pitch12 µm
Detector Sensitivity (NETD)≤ 15 mK
Display TypeRound AMOLED
Display Resolution2560 × 2560 px
Frame Rate60 Hz
Magnification4× – 40×
Field of View at 100 m15 × 12 m
Detection Rangeup to 2,600 m
Distance MeasurementYes, up to 1,200 m
Batteries2× replaceable, 4400 mAh
Charging PortUSB-C
Temperature Range−20 °C to +50 °C
