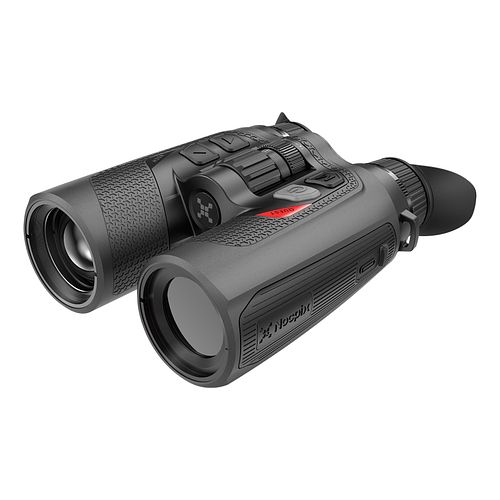

Nocpix QUEST H35R LRF thermal imaging binoculars

Powerful thermal imaging binoculars with wide field of view and distance measurement
The Nocpix QUEST H35R LRF is a modern thermal imaging binocular that combines compact design, high image quality, and thoughtful operation. Designed for demanding observations in darkness, fog, or difficult lighting conditions, it impresses with a wide field of view, clear representation, and a robust construction for outdoor use.
High-resolution sensor for high-contrast thermal images
The QUEST H35R features a powerful 640 × 512 pixel thermal sensor with a pixel size of 12 µm. Combined with a thermal sensitivity of ≤ 15 mK and a frame rate of 60 Hz, it produces detailed, stable thermal images – even under challenging environmental conditions.
R+ Image Processing and Brilliant AMOLED Display
The integrated R+ image enhancement optimizes the display by selectively reducing image noise and improving detail rendering. The large AMOLED display with a resolution of 1920 × 1200 pixels provides a high-contrast, eye-friendly viewing experience and allows for comfortable observations even over extended periods.
Integrated Distance Measurement for Better Orientation
The QUEST H35R features an integrated distance measurement with a range of up to 1,000 meters. This function supports a realistic assessment of distances in the field and expands the possibilities for observations at greater distances.
Ergonomic Design and Intuitive Operation
The ergonomic shape with a central focusing and zoom wheel, as well as a clear button layout, allows for easy and safe one-handed operation. Even in cold conditions or while wearing gloves, the control remains precise and comfortable.
Flexible Battery System for Longer Operations
The well-thought-out energy system combines a permanently integrated battery with a replaceable 18650 battery. This allows for a quick battery change without having to interrupt usage. The runtime is up to about four hours.
Light, robust, and suitable for outdoor use
Weighing around 700 g, the QUEST H35R is pleasantly lightweight and easy to transport. Its sturdy construction and wide temperature range of −20 °C to +50 °C make it a reliable companion for various outdoor conditions.
FAQ about the Nocpix QUEST H35R LRF
What applications is the QUEST H35R suitable for?

For wildlife and environmental observation in darkness, poor visibility, or changing weather conditions.

Is the device also suitable for longer observations?

Yes, thanks to its ergonomic design, high-quality display, and flexible battery system.

What advantages does the distance measurement offer?

It supports a better assessment of distances in the field and facilitates orientation.
Technical Data

CategoryThermal Imaging Binoculars
SeriesQUEST
ModelH35R LRF
Objective35 mm / F 0.9
Sensor Resolution640 × 512 px
Detector Sensitivity (NETD)≤ 15 mK
Display TypeAMOLED
Display Resolution1920 × 1200 px
Frame Rate60 Hz
Magnification3× – 24×
Field of View at 100 m22 × 18 m
Detection Rangeup to 1,800 m
Distance MeasurementYes, up to 1,000 m
Battery Systemintegrated battery + replaceable 18650 battery
Battery Lifeapprox. 4 hours
Temperature Range−20 °C to +50 °C
Weightapprox. 700 g
