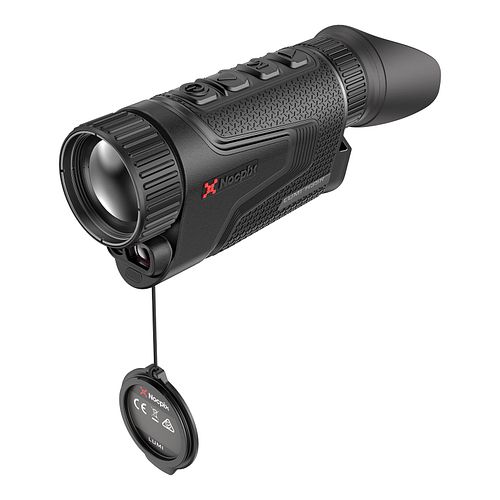

Nocpix LUMI H35R LRF thermal monocular

Compact Thermal Imaging Monocular with High Image Quality and Integrated Rangefinder
The Nocpix LUMI H35R LRF is a powerful yet extremely compact thermal imaging monocular for demanding observations in darkness and difficult visibility conditions. Thanks to modern sensor technology and intelligent image processing, the device impresses with a clear, high-contrast display – packaged in a housing that is smaller than many smartphones and feels comfortable in the hand.
Reality+ Image Algorithms for Clear Thermal Images
The integrated Reality+ image algorithms optimize image representation through targeted reduction of image noise. Using keyframe and interframe referencing, disturbance patterns are analyzed and corrected, while modern filtering techniques highlight fine details. The result is a calm, detailed thermal image – even in challenging weather conditions.
High-light F0.9 lens and highly sensitive sensor
The installed 35 mm F 0.9 lens is particularly light-permeable and enables a very bright image representation. In combination with the 640 × 512 pixel sensor and a thermal sensitivity of less than 20 mK, even small temperature differences are clearly visible.
Integrated Distance Measurement
The LUMI H35R features an integrated distance measurement with a range of up to 800 meters. This function supports better assessment of distances in the field and expands the possibilities for observations in the area.
Quiet operation and ergonomic design
Particularly noteworthy are the silent controls that allow for discreet use. The central focusing and zoom wheel ensures intuitive operation, while the eyepiece with a 10 mm exit pupil provides a comfortable viewing angle and clear vision.
Individual Display and Comfortable Use
Various color palettes – including eye-friendly red and green-based variants – allow for individual customization to personal preferences and usage conditions. The integrated display provides a clear representation and remains comfortable for the eyes even during prolonged use.
Robust, lightweight and versatile
Weighing only about 330 g, with a dust and water protection class of IP67 and a temperature range of −20 °C to +50 °C, the Nocpix LUMI H35R is suitable for a variety of outdoor conditions. Photo, video, and audio recordings can be stored in the internal 32 GB memory.
FAQ about the Nocpix LUMI H35R LRF
What is the LUMI H35R suitable for?

For wildlife and environmental observation in darkness, fog, or limited visibility conditions.

Is the device also suitable for longer operations?

Yes, the ergonomic design, quiet operation, and replaceable batteries allow for comfortable use over several hours.

How is the power supply provided?

The device uses replaceable 18650 batteries with a runtime of up to about four hours.
Technical Specifications

CategoryThermal Imaging Monocular
SeriesLUMI
ModelH35R LRF
Objective35 mm / F 0.9
Sensor Resolution640 × 512 px
Detector Sensitivity (NETD)≤ 18 mK
Display Resolution1024 × 768 px
Frame Rate60 Hz
Magnification2.5× – 20×
Field of View at 100 m22 × 16.4 m
Distance MeasurementYes, up to 800 m
Detection Rangeup to 1,800 m
Internal Memory32 GB
Recording ModesPhoto, Video, Audio
Battery Type18650 (replaceable)
Battery Lifeapprox. 4 hours
Protection ClassIP67
Temperature Range−20 °C to +50 °C
Weightapprox. 330 g
