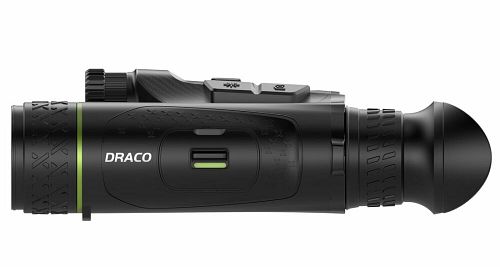

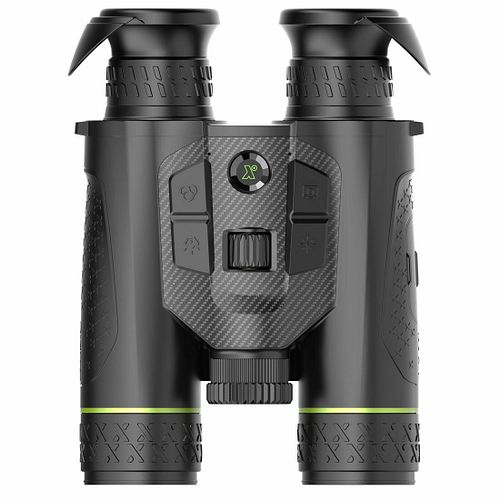

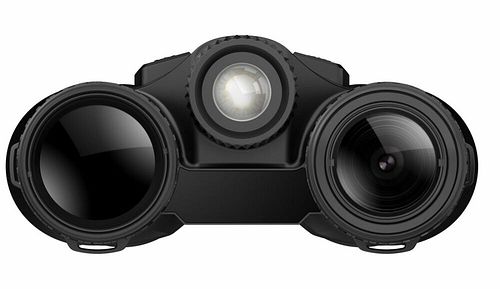

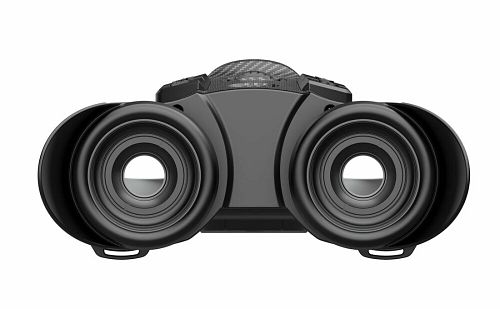

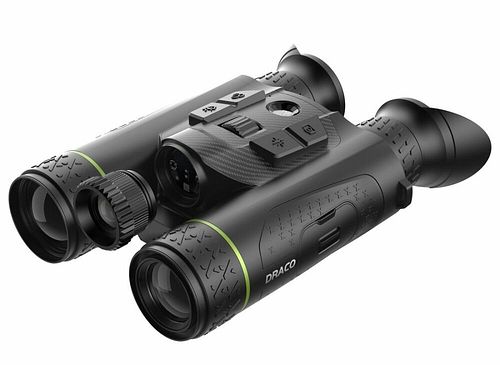

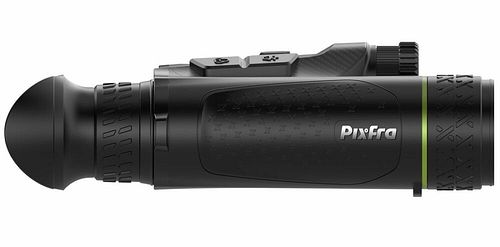

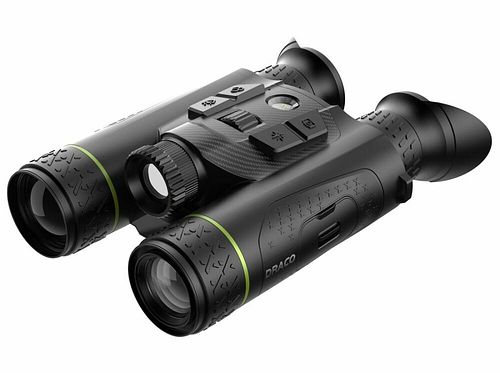

PIXFRA Draco D335 thermal imaging binoculars

Pixfra Draco D335 Thermal Imaging Binoculars with 4K Night Vision, NEW

Feel free to order directly from the online shop or visit our store in Bielefeld: https://www.naturwerk-shop.de/pixfra-draco-d335-waermebildfernglas-mit-4k-nachtsicht
The Pixfra Draco D335 is a powerful, multispectral binocular of premium quality that combines thermal imaging technology, 4K night vision, laser rangefinding, and IR illumination in a compact device. Designed for demanding users, it excels in hunting, wildlife observation, fieldwork, and security-related operations – by day, night, and in challenging weather conditions.
Multispectral Top Technology

The Draco D335 combines state-of-the-art sensors for maximum flexibility in use:

- Thermal sensor 384 × 288 pixels (NETD < 15 mK) with a 35-mm lens for reliable detection at long distances and very fine temperature differentiation
- 4K digital night vision channel (3840 × 2160 pixels) with a light-sensitive 55-mm optic for detailed observations in low residual light
- Integrated laser rangefinder up to 1,000 m for precise distance measurement
- Removable 940-nm IR illuminator for additional lighting in complete darkness

Excellent Image Quality & Intuitive Operation

- High-resolution Full-HD OLED display (1920 × 1080) with a large field of view
- PIPS 3.0 image processing, electronic image stabilization, and defog function for clear, steady images even in fog or motion
- User-friendly menu with memory function for the last used settings
- Integrated WLAN (2.4 / 5 GHz) as well as 64 GB internal storage for photo and video recordings

Robust, Ergonomic, and Enduring

- High-quality magnesium housing with IP67 protection class – dust and waterproof
- Compact design and balanced ergonomics for comfortable handling even during longer observations
- Adjustable eye relief and soft eyecups for high viewing comfort
- Operates with two 18650 batteries, runtime of up to approx. 8 hours (operation with only one battery is also possible)

Technical Specifications

- Thermal sensor: 384x288 pixels
- NETD value < 15 mK
- Thermal focal length 35 mm
- Thermal field of view at 100 m: 13.7 × 10.3 m
- Thermal magnification: 3.8–30.4× (8x zoom)
- Detection distance up to 1,800 m
- Night vision sensor: 3,840 × 2,160 pixels (4K UHD), 1/1.8" CMOS NV optics 55 mm; NV magnification 5.5–44×; NV FOV @100 m: 14 × 8.8 m
- Laser rangefinder up to 1,000 m
- Removable IR illuminator 940 nm
- Display: 0.49" OLED, 1920 × 1080; 18× eyepiece PIPS-3.0 image optimization; EIS (Electronic Image Stabilization); Defog menu memory (return to last position within 15 s)
- Dual-band WLAN 2.4/5 GHz
- 64 GB internal storage; internal gallery silent buttons; multifunction wheel + four-button layout
- Magnesium housing
- Protection class IP67 GPS
- Dimensions 195.0 × 130.6 × 61.7 mm
- Weight: Approx. 620 g
- Power supply 2× 18650
- Runtime: Up to 8 hours operation also possible with 1 × 18650
- Charging via power adapter/power bank/charger

Scope of Delivery

1 x Pixfra Draco D335, 4 × 18650 battery, 1 x charger, 1 x USB cable, 1 x chest bag with carrying strap, 1 x user manual
Product safety information: Manufacturer and responsible person:
Manufacturer and responsible in the EU: Bresser GmbH, Gutenbergstraße 2, 46414 Rhede, [email protected]
WARNING: The presentation of the acquisition authorization is required for the purchase of this product!!!
