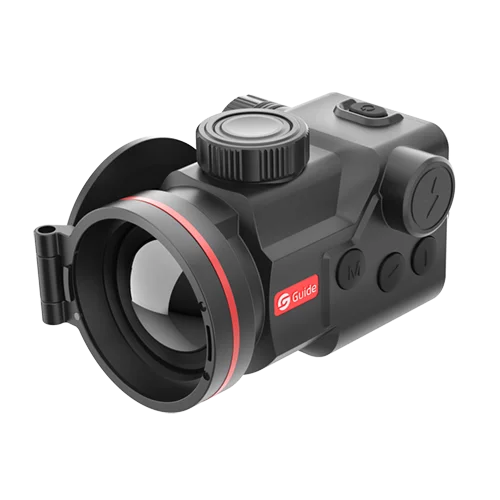

GUIDE thermal imaging clip-on device TB650 2.0

Thermal Imaging Attachment for Highest Precision and Easy Handling
The GUIDE TB650 2.0 combines state-of-the-art thermal imaging technology with a lightweight, robust design. Thanks to the housing made of a magnesium alloy, the device is over 20% lighter than comparable models and impresses with high precision and stability. With its 640 × 512 pixel VOx sensor, a NETD ≤ 20 mK, and the 50 mm F1.0 lens, the TB650 2.0 delivers crystal-clear thermal images – even in challenging weather conditions.
Outstanding Image Quality with Full-HD AMOLED Display
The brilliant 0.39″ Full-HD AMOLED display (1920 × 1080 pixels) provides rich colors, high contrast, and a wider viewing angle. Three scene modes (Extended, Highlight, Natural) and six color palettes allow you to adapt the image to any hunting situation. With PIP, Hot-Spot Tracking, and video recording function, the TB650 2.0 is perfect for observation and documentation.
Robust, reliable and ergonomic
The compact design with a weight of only 582 g and the dual-sided focus button make the device particularly handy. Two 18650 batteries provide up to 9 hours of operating time. The IP68 certified housing offers maximum protection against dust, water, and shocks – shockproof up to 1000 G/ms according to IEC60068-2-27. Perfectly suited for hunting in rain, snow, or extreme temperatures.
Networking & User Comfort
With integrated Wi-Fi (2.4 / 5 GHz) and the TargetIR app, you can conveniently connect the GUIDE TB650 2.0 to your smartphone, perform firmware updates, and wirelessly transfer images or videos. The device features an internal 64 GB storage and supports high-quality photo and video recordings.
Scope of Delivery

GUIDE TB650 2.0 thermal imaging attachment
2 × 18650 batteries
Table charger
USB Type-C cable
5 V / 2 A power adapter (EU/UK/US/AUS)
Quick start guide & warranty card
Transport bag

FAQ
Can the TB650 2.0 be used in the rain?

Yes, the device is certified to IP68 and is therefore completely dust and waterproof.

How far can I detect with the GUIDE TB650 2.0?

The detection range is up to 2600 meters under optimal conditions.

How long does the battery last?

With two 18650 batteries, up to 9 hours of continuous operation is possible. A replacement battery can be easily swapped out if needed.
Technical Data

SensorUncooled VOx Infrared Detector (8–14 μm)
Resolution640 × 512 pixels @ 12 μm
NETD≤ 20 mK (@ 25 °C, F#=1.0)
Frame Rate50 Hz
Lens50 mm F1.0 (manual focus)
Field of View12.5° × 9.4°
Detection Range2600 m
Display0.39″ AMOLED 1920 × 1080 Full-HD
Digital Zoom1× (Clip-On Mode)
Color PalettesWhite Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot
Video OutputAnalog Video / USB Type-C
Wi-Fi2.4 / 5 GHz Wi-Fi with App Connection (TargetIR)
Storage64 GB internal
Battery2 × 18650 Li-Ion batteries, up to 9 h runtime
Protection ClassIP68, shockproof up to 1000 G/ms
Dimensions161 × 89 × 97 mm
Weight≤ 582 g
Operating Temperature−20 °C to +50 °C
