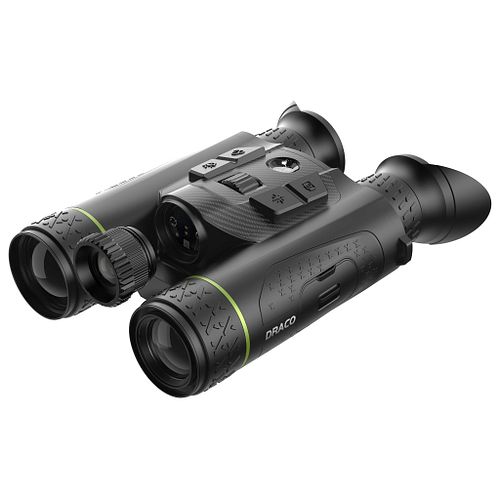

PixFra Draco D225-4K LRF thermal imaging camera

PIXFRA Draco D225-4K LRF Multispectral 4-in-1 Thermal Imaging Binocular with 4K Night Vision and Laser Rangefinder The PIXFRA Draco D225-4K combines four advanced technologies in a compact device: thermal camera, 4K digital night vision, laser rangefinder, and interchangeable infrared illumination.
With precise image processing, dual-band Wi-Fi, and a robust magnesium housing, it offers reliable performance for observation, documentation, and outdoor operations both day and night.
Multispectral System for Clear Vision Day and Night The integrated 256×192 thermal imaging sensor (NETD <18 mK) provides high-contrast images even in fog, rain, or darkness. The 25-mm lens offers a thermal field of view of 12.2 × 9.3 m @100 m, a magnification of 4.334.4×, and a detection distance of up to 1300 m. The system is complemented by a 4K CMOS sensor (3840×2160, 1/1.8) with a 55-mm lens for detailed night vision representation.
Laser rangefinder and interchangeable IR illumination The Draco is equipped with a precise laser rangefinder (LRF) up to 1000 m. An interchangeable 940-nm IR emitter extends visibility in complete darkness, flexibly adjustable to any observation situation.
Brilliant display on 0.49" OLED screen The Full HD OLED display (1920×1080) with 18× ocular magnification delivers a bright, high-contrast image with a large field of view. Thanks to PIPS 3.0 image optimization, electronic image stabilization (EIS), and defog function, the display remains clear and stable even in challenging weather conditions.
Intuitive operation and ergonomic design The multifunction wheel and the four-button layout allow for intuitive control of all functions even while wearing gloves. With a weight of only approx. 600 g and a length of 195 mm, the binoculars fit ergonomically in the hand and are suitable for longer observations. The menu saves the last position (up to 15 seconds), so you can continue working efficiently without having to navigate again.
Robust, weatherproof and durable The magnesium housing according to IP67 standard is dust and waterproof, reliably protecting the electronics from rain, fog, and moisture. The device is designed for a temperature range of 30 °C to +55 °C and is therefore suitable for a variety of operating conditions.
Long Battery Life and Flexible Power Supply The Draco is powered by two 18650 batteries and achieves a runtime of over 9 hours.
Power supply is also possible with just one battery, making it ideal for mobile use.
Charging is done via power adapter, power bank, or charger, depending on the need.
Connectivity and Storage Thanks to dual-band Wi-Fi (2.4/5 GHz), the Draco enables live transmission of images and videos to mobile devices as well as app streaming in real-time.
The 64 GB internal storage provides space for numerous recordings, which can be saved in the formats JPG (photo) and MP4 (H.265/H.264).
An integrated gallery allows for direct playback on the device.
Comfort and Accessories Soft, foldable eyecups and an adjustable interpupillary distance of 6074 mm ensure high observation comfort even during longer sessions. The included Pixfra chest pocket allows for secure, quick access to the binoculars.
Technical Data Category Specification Thermal Sensor 256×192 (NETD <18 mK), VOx sensor, 12 µm pixel size Thermal Optics 25 mm focal length Field of View (100 m) 12.2 × 9.3 m Magnification (thermal) 4.3-4.4× (8× digital) Detection Distance up to 1300 m Night Vision Sensor 4K UHD 3840×2160 (1/1.8" CMOS) Night Vision Optics 55 mm focal length NV Magnification 5.5-4× NV Field of View (100 m) 14 × 8.8 m Laser Rangefinder up to 1000 m IR Illuminator removable, 940 nm Display 0.49" OLED, 1920×1080 Image Optimization PIPS 3.0, EIS, Defog Storage 64 GB internal Connectivity USB-C, dual-band Wi-Fi (2.4/5 GHz), GPS Video/Image Formats MP4 (H.265/H.264), JPG Batteries 2× 18650 (Lithium-ion, included) Battery Life = 9 hours Water Resistance IP67 Housing Material Magnesium Dimensions (L×W×H) 195 × 130.6 × 61.7 mm Weight = 620 g Temperature Range 30 °C to +55 °C Tripod Mount Yes Automatic Power Off Mode Yes Color Palettes Yes Display Off Function Yes
