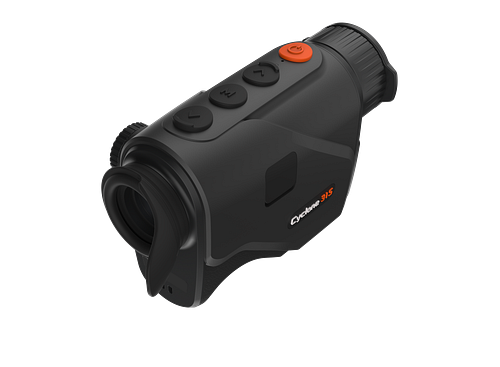

ThermTec Cyclone 315

ThermTec Cyclone 315 – Ultracompact Thermal Imaging Monocular for Flexible Nature and Area Observation
The ThermTec Cyclone 315 brings professional thermal imaging technology into a pocket-sized format: Weighing only about 250 g, ready to use in ~3 s, and equipped with a highly sensitive 384×288 VOx sensor (12 µm, NETD < 20 mK). In combination with the 15 mm F1.0 optics and the 0.39″ AMOLED display (1024×768), it delivers clear, high-contrast thermal images – ideal for forest paths, field edges, and quick overviews in the area.
Stable thermal image thanks to AI optimization
Self-learning AI algorithms continuously stabilize the display. Three scene modes and finely adjustable parameters (brightness, contrast, sharpness, anti-noise) ensure that details remain reliably visible even in humidity, fog, or temperature changes.
Light, robust and durable
With IP67 protection, rubberized housing, and 18650 rechargeable batteries, the Cyclone 315 is designed for long operations: up to 10 h per battery, with the included second battery a total of up to 20 h. The intuitive button layout allows for safe one-handed operation – even with gloves.
Practical Tools & Connectivity
AI Distance Measurement (Multi-Target), Hotspot Marking, Picture-in-Picture, as well as six color palettes support orientation. Live images and recordings can be easily shared via the app using a Wi-Fi hotspot; the 32 GB internal storage records photos and videos directly.
Technical Specifications (Overview)

SensorVOx, 384 × 288 pixels, 12 µm, NETD < 20 mK
Optics15 mm / F1.0, manual focus
Display0.39″ AMOLED, 1024 × 768 px
Frame Rate50 Hz
Field of Viewapprox. 17.5° × 13.1° (30.7 m @ 100 m)
Opt./Digital Zoom1.4× optical; 1× / 2× / 4× digital
Detection / Recognition*up to 750 m / 275 m (human)
ConnectivityWLAN hotspot; app livestream/control
Storage32 GB internal; photo/video; playback on device
Power18650 rechargeable battery, up to 10 h per battery (up to 20 h with 2 batteries)
Protection ClassIP67
Dimensions / Weight139 × 76 × 54 mm; approx. 250–255 g
Operating Temperature−20 °C to +50 °C

*Manufacturer's specifications under ideal conditions.
