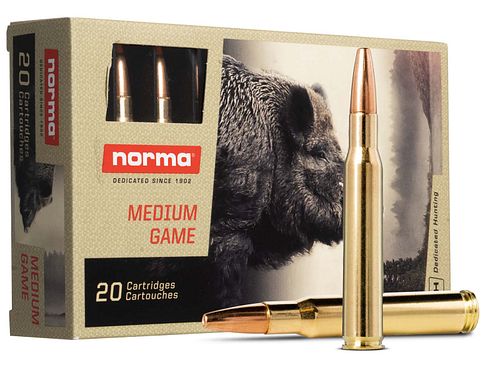

NORMA Vulkan .30-06 Sprgf. 11.7g 180gr

The projectile tip is crimped against the lead core
a high energy transfer is guaranteed
short flight path
the volcanic projectile lacks the traditional lead tip

The volcanic projectile lacks the traditional lead tip, the projectile tip is crimped against the lead core. The front part of the projectile jacket is thin, so that the projectile expands rapidly and a high energy transfer is guaranteed.

Data
Values

Manufacturer
Norma

Manufacturer number
103022320

Bullet weight (g/grs)
11.7/180

Bullet type
Vulkan

Package size (pieces)
20

Caliber
.30-06 Springfield

Flight speed V0 (m/s)
823.0

Flight speed V100 (m/s)
730.0

Flight speed V200 (m/s)
643.0

Flight speed V300 (m/s)
563.0

Bullet energy E0 (Joule)
3964.0

Bullet energy E100 (Joule)
3119.0

Bullet energy E200 (Joule)
2422.0

Bullet energy E300 (Joule)
1854.0

Impact point position 50m
-1.0

Impact point position 100m
0.0

Impact point position 150m
-4.8

Most favorable zeroing distance (m)
150.0

Impact point position scope 50m
1.7

Impact point position scope 100m
3.2

Impact point position scope 150m
0

Impact point position scope 200m
-8.4

Impact point position scope 300m
-43.8

Hunting approval
Large game

EAN number
7393923176598
