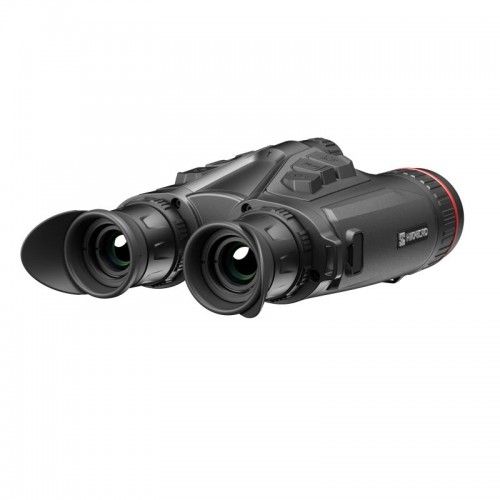

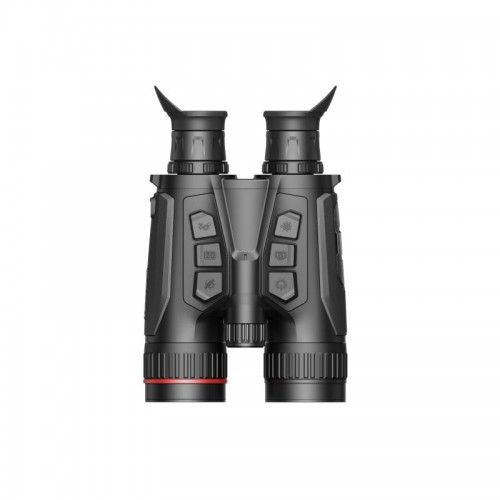

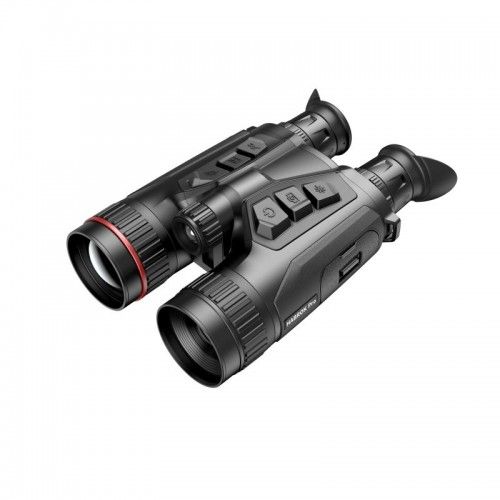

Hikmicro Binocular Habrok Pro HQ50L

HIKMICRO HABROK Pro HQ50L – High-Performance Multi-Spectrum Binocular for Demanding Applications
The HIKMICRO HABROK Pro HQ50L Multi-Spectrum Binocular combines state-of-the-art thermal imaging and optical technologies to provide unparalleled image quality and detail accuracy even under extreme conditions. Equipped with a 640 × 512 thermal imaging detector and a 50 mm lens with a NETD of < 15 mK, as well as a 4K CMOS detector, the HQ50L delivers sharp images both day and night. The integrated 1000 m laser rangefinder and the interchangeable IR illuminator at 850 nm make this all-in-one binocular the ideal tool for hunting, bird watching, wildlife observation, rescue operations, and maritime applications.
Main Features:

Thermal Imaging Detector: 640 × 512 resolution at 12 μm with a sensitivity of NETD < 15 mK (@25°C, F# = 1.0)
Thermal Lens: 50 mm F1.0 with a detection range of up to 2600 m
Optical Detector: 4K ultra-high-resolution CMOS detector
Display: 1920 × 1080 OLED with 0.49 inches for clear and detailed image representation
Laser Rangefinder: Integrated with a range of up to 1000 m and ±1 m measurement accuracy
Battery Life: Rechargeable and replaceable Li-Ion battery with a runtime of over 7 hours
Ergonomic Design: Lightweight (975 g) and compact for comfortable use

Thermal Module:

Image Sensor: VOx Uncooled Focal Plane Arrays
Maximum Resolution: 640 × 512
Frame Rate: 50 Hz
Pixel Pitch: 12 μm
Response Wavelength: 8 μm to 14 μm
Focus Mode: Focus ring
Detection Range: 2600 m
Minimum Focus Distance: 5 m
Magnification: 4.3x to 25.8x (6x)
Field of View: 8.8° × 5.3° / 15.4 m × 9.3 m @ 100 m

Optical Module:

Image Sensor: 1.88“ Progressive Scan CMOS
Maximum Resolution: 3840 × 2160
Focal Length: 60 mm F2.2
Minimum Working Distance: 3 m
Focus Mode: Focus ring
Magnification: 5.5x to 22.0x (4x)
Field of View: 7.3°× 4.1° / 12.6 m × 7.2 m @ 100 m

Image Display:

Display: 0.49 inches, OLED, 1920 × 1080
Palettes: Thermal: Black Hot, White Hot, Red Hot, Fusion; Optical: Day, Night, Auto
Brightness Adjustment: Yes
Contrast Adjustment: Yes
Zoom Pro: Yes
Image Pro 2.0: Yes

System Functions:

Video Recording: Yes
Snapshot: Yes
Audio Recorder: Yes
Standby Mode: Yes
Storage: Integrated EMMC (64 GB)
PIP (Picture-in-Picture): Yes
Hotspot: Yes
Hot Track: Yes
Digital Magnetic Compass: Yes
GPS: Yes
Local Album: Yes

Power Supply:

Battery Type: Replaceable and rechargeable Li-Ion battery
Operating Time: ≥7 hours at -20°C (Hotspot off, LRF and Zoom Pro on)
Type-C Power Supply: 5V DC, 2A
Supports External Power Supply: Yes

General Information:

Protection Class: IP67
Dimensions: 142.9 mm × 79.7 mm × 230.5 mm (5.6″ × 3.1″ × 9.1″)
Weight: 975 g with battery
Operating Temperature: -30°C to +55°C
Interpupillary Distance: 60 mm to 74 mm
Mounting Adapter: 1/4“-20-UNC

Laser Rangefinder:

Laser Class: Class 1
Wavelength: 905 nm
Maximum Measurement Range: 1000 m
Measurement Accuracy: ±1 m
Minimum Measurement Range: 10 m

Available Models:
HM-TSA6-50S2G/W1LVE-HQ50L
Scope of Delivery:

1x HIKMICRO HABROK Pro HQ50L
2x Rechargeable Li-Ion Battery
1x USB-C Cable
1x User Manual
1x Neck Strap
1x Cleaning Cloth
1x Tripod Adapter
1x Binocular Case
1x Charging Station for Batteries

Note: Please observe the legal regulations when mounting attachments or devices on weapons!
