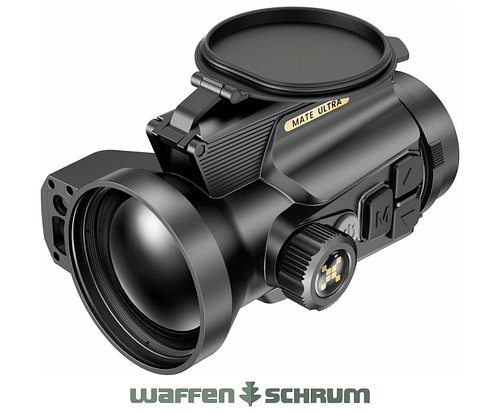

Nocpix Mate Ultra S60R

Nocpix presents the Mate Ultra S60R, a thermal imaging attachment of superlative quality with an integrated laser rangefinder.With the Mate series, the Chinese company Nocpix expands its thermal imaging spectrum to include attachments for riflescopes. The flagship of this product line is the Mate Ultra S60R, which boasts a large sensor, powerful performance, an integrated laser rangefinder, and surprising new features. It is suitable for use at night and during the day, such as in fog or to track camouflaged game in dense underbrush.The SensorThe Mate Ultra S60R thermal imaging attachment features a large thermal sensor with a resolution of 1,280x1,024 px, with a pixel pitch of 12 µm. A NETD value of ≤15 mK ensures high thermal differentiation capability. The image frequency is 60 Hz, significantly improving the capture of moving objects. Compared to conventional 50 Hz detectors, the representation is smoother and more precise, with less noise and images that are richer in detail and contrast. The detection range with the 60 mm lens is 3,100 m, and the field of view at 100 m is 25.6x20.5 m.The DisplayThe large sensor, shutterless imaging function, and powerful processor with its image algorithms deliver uninterrupted results on the 1,920x1,200 pixel display, even with rapidly moving game. The menu navigation is intuitive. On the left side of the display are the individual menu items, and on the right are the respective specifications. The settings of the user interface – color palettes, reticle, brightness, and button layout – can be individually adjusted and saved in a profile. An extremely practical feature is the AI-assisted Magic Zoom. When you zoom with your daytime optics, the Magic Zoom automatically adjusts the user interface of the attachment to the respective magnification.The DeviceThe 140 mm long and 560 g light attachment has the battery compartment located on top. It is easy to open, making battery changes during use on the rifle very simple. A standard 18650 battery lasts for about 4 hours of operation. The silent controls are all located on the left side and are intuitive to use. On the right side is the laser rangefinder with a range of up to 1,200 m. The lens protection cap is securely attached to the device and can be completely folded back. The 60 mm eyepiece guarantees image accuracy with less than 0.5% distortion factor, even at high magnifications. The housing is made of a lightweight yet extremely robust magnesium alloy, it is waterproof, corrosion-resistant, and recoil-tested up to 7,000 Joules. The Recoil Activated Video function ensures that every shot is documented, automatically triggered by the recoil.The ConnectivityUsing N-Link, the Mate Ultra S60R can be synchronized with other Nocpix devices, and it communicates with the Nocpix app via WiFi. On the app, images can be managed, settings adjusted, and ballistic data transferred. Internally, there is a 64 GB storage capacity.

The hunting experience remains natural and intuitive despite all the technical support; the Mate Ultra S60R does not detract from the focus on what is essential.📦 Scope of DeliveryMate Ultra S60RCaseRemote control3 batteriesChargerUSB cableThermal imaging targetOptics cleaning clothUser manual⚙️ Technical SpecificationsSensor: 1,280x1,024 px, 12µm, NETD ≤15 mKFrame rate: 60 HzLens: 60 mm / f1.0Field of view: 25.6x20.5 m at 100 m / 14.7°x11.7°Detection range: 3,100 mDisplay: AMOLED 1,920x1,200 pxLaser rangefinder: 1,200 mPower supply: removable 18650 batteryMax. operating time: 4 hHousing: magnesium alloyrecoil-resistant up to 7,000 JWiFi for connection with the appN-Link for synchronization with other Nocpix devicesRecoil Activated Video functionStorage capacity: 64 GBMagic Zoomballistic calculationRemote controlAdapter interface: M52Dimensions: 140x96x78 mmWeight: 560 g
