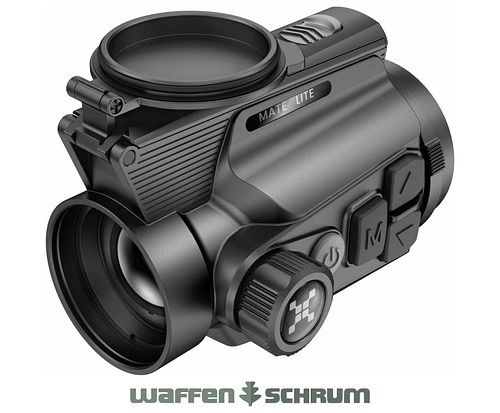

Nocpix Mate Lite L38

The thermal imaging attachment Mate LITE L38 from Nocpix is the affordable entry-level device in the Mate series.The Chinese company Nocpix fills a gap in its product range with the Mate thermal imaging attachments for riflescopes. The Mate LITE L38 is the cost-effective entry-level device in this series and features several practical functionalities. It is suitable for use in hunting at night and during the day, for example, in fog or to track camouflaged game in dense underbrush.The SensorThe Mate LITE L38 thermal imaging attachment features a thermal sensor with a resolution of 384x288 px, with a pixel pitch of 12 µm. A NETD value of ≤15 mK ensures good thermal differentiation capability. The frame rate is 60 Hz, significantly improving the detection of moving objects. Compared to conventional 50 Hz detectors, the representation is smoother and more precise, with less noise and more detailed and contrast-rich images. The detection range with the 38 mm lens is 1,950 m, and the field of view at 100 m is 12.3x9.2 m.The DisplayThe good sensor, the shutterless imaging function, and the powerful processor with its image algorithms deliver uninterrupted results on the 1,920x1,200 px display, even with rapidly moving game. The menu navigation is intuitive. On the left side of the display are the individual menu items, and on the right are the respective specifications. The settings of the user interface – color palettes, reticle, brightness, and button layout – can be individually adjusted and saved in a profile.The DeviceThe 115 mm long and 399 g lightweight attachment has the battery compartment on top. It can be easily opened, making battery changes during use on the rifle very simple. A standard 18650 battery lasts for about 6 hours of operation. The silent controls are all located on the left side and are intuitive to operate. The lens cover fits securely on the device and can be completely folded back. The housing is made of a lightweight yet extremely robust magnesium alloy, it is waterproof, corrosion-resistant, and recoil-tested up to 7,000 joules. The Recoil Activated Video function ensures that every shot is automatically documented by the recoil.The ConnectivityUsing N-Link, the Mate LITE L38 can be synchronized with other Nocpix devices, and it communicates with the Nocpix app via WiFi. The app allows for managing images, making settings, and transferring ballistic data. Internally, there is a 64 GB storage capacity.📦 Scope of DeliveryMate LITE L38CaseRemote control3 batteriesChargerUSB cableThermal imaging targetOptics cleaning clothUser manual⚙️ Technical SpecificationsSensor: 384x288 px, 12µm, NETD ≤15 mKFrame rate: 60 HzLens: 38 mm / f1.0Field of view: 12.3x9.2 m at 100 m / 6.9°x5.2°Detection range: 1,950 mDisplay: AMOLED 1,920x1,080 pxPower supply: removable 18650 batteryMax. operating time: 6 hHousing: magnesium alloyRecoil resistant up to 7,000 JWiFi for connection with the appN-Link for synchronization with other Nocpix devicesRecoil Activated Video functionStorage capacity: 64 GBBallistic calculationRemote controlAdapter interface: M52Dimensions: 115x72x76 mmWeight: 399 g
