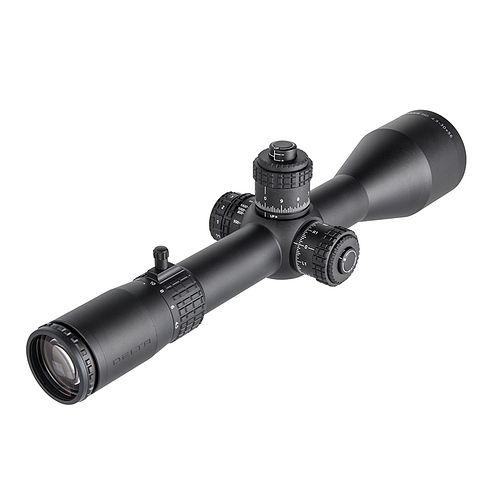

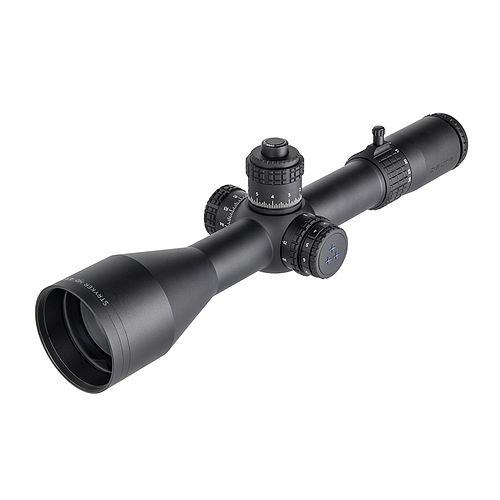

Delta Optical Stryker HD 4.5-30×56 FFP LRD-1P

Precision at Every Distance
A perfect riflescope with reticle in the first focal plane for precise shooting at medium and long distances.
The ED glass with low dispersion in the objective ensures excellent image quality. High light transmission, special anti-reflective coatings, and the central illuminated dot allow for safe shooting even in low light conditions.
The solid tube with a diameter of 34 mm ensures a large adjustment range of the reticle, reaching up to 300 cm in height.

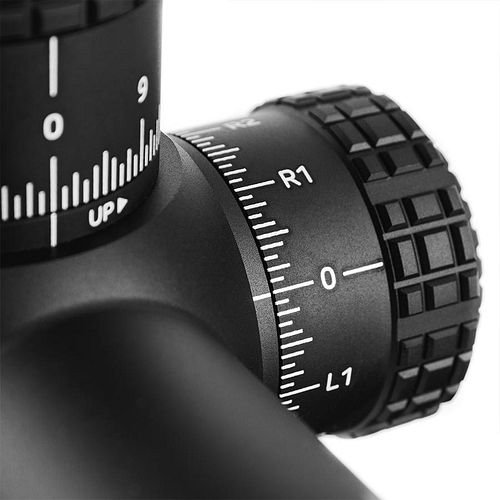

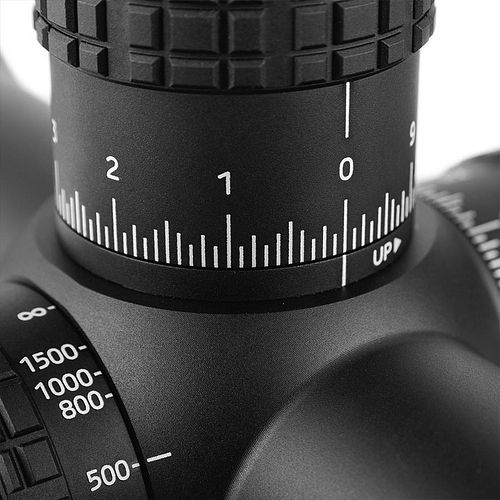

The quick-adjustment turrets are equipped with the "ZeroLock" mechanism, which allows for the locking of the adjustment knob used for vertical alignment of the reticle for specific settings – usually after zeroing the riflescope for a specific shooting distance, e.g., 100 m. The locking allows for corrections above the point of impact and prevents dropping below the limit set by the user.
Despite these advanced functionalities, the riflescope weighs only 1002 g and is just 358 mm long.
Stryker HD
The reticles LRD-1P, LRD-1T, and DLR-1, available with the riflescope 4.5-30×56, are unique and designed for ambitious shooters. They are graduated in milliradians (MIL) and thus easily convertible to metric units (1 MIL = 10 cm at 100 m). They correspond with the clicks of the riflescope – 1 click equals 0.1 MIL (1 cm).
All three reticles ensure maximum shooting comfort and great functionality throughout the entire magnification range of the riflescope (4.5-30x). The design of the reticles allows for both distance estimation to an object with known dimensions and correction of the bullet trajectory for high and low shots, as well as correction for wind drift. The adjustment range of each reticle extends up to 300 cm horizontally. This facilitates shooting with any caliber, even at very long distances.

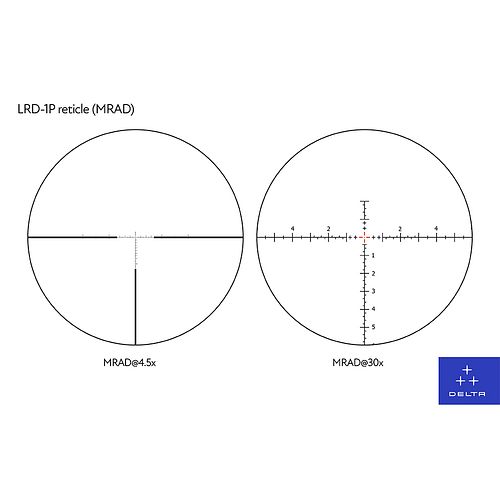

Reticle LRD-1P
The center of the reticle features a central illuminated dot with a diameter of 0.045 MIL, along with surrounding markings that form a cross around it and are also illuminated.
Reticle LRD-1T
This reticle is an evolution of the LRD-1P reticle, which additionally features a group of ballistic markings in the lower area for quick correction of bullet drop, as well as for wind drift and/or deviation.
Reticle DLR-1
The central illuminated dot has a diameter of 0.07 MIL (0.7 cm). The fine crosshairs are 0.05 MIL (0.5 cm) thick, and the coarse crosshairs are 0.4 MIL (4 cm) thick. The crosshairs are divided with markings into sections of 0.2, 0.5, and 1 MIL (corresponding to 2, 5, and 10 cm).
The reticle features a lateral auxiliary scale that allows for accurate measurement of the target in the upper magnification range with a precision of up to 0.1 MIL (1 cm).

Technical Data

Reticle: LRD-1P
Magnification: 4.5-30
Objective Diameter: 56mm
Field of View @ 100m 4.5x: 8.3m
Field of View @ 100m 30x: 1.2m
Eye Relief: 81mm – 97mm
Exit Pupil Diameter: 8.8 – 1.9mm
Diopter Adjustment Range: -2D / +3D
Water Resistance: 0.3kg / cm2
Position of Reticle: First Focal Plane (FFP)
Illumination: Dot + Cross*
Gas Filling: Nitrogen
Click Adjustment: 0.1 MIL / Click (1 cm/Click at 100 m)
Elevation Adjustment Range: 30mrad
Wind Adjustment Range: 15mrad

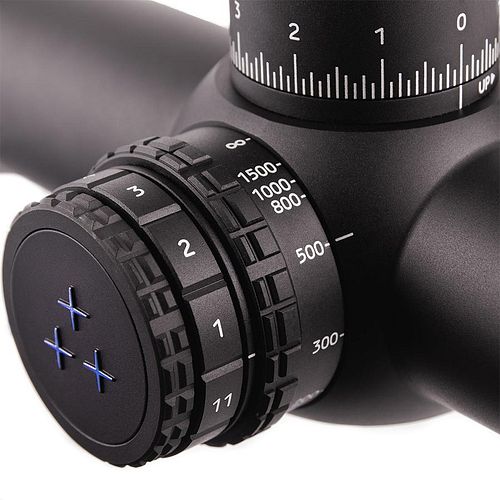

Parallax Setting: 23m – ∞
Zero-Stop: Yes
Shock Resistance: 6500 J
Objective Diameter: 56mm
Middle Tube Diameter: 34mm
Length: 358mm
Weight: 1002g
Battery: CR2031
Warranty: 10 years

* with reticle DLR-1, illumination only dot
