PIXFRA Sirius SA70D - HD thermal imaging camera with dual lens

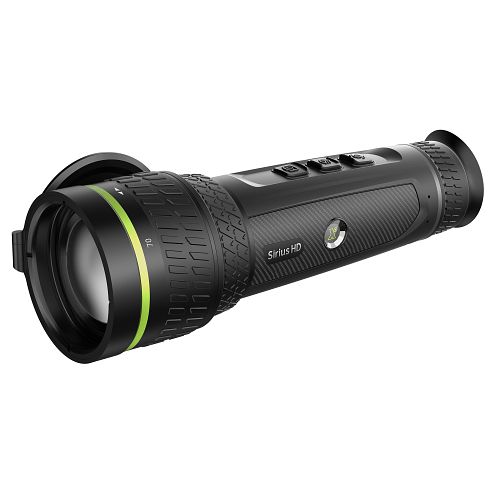

PIXFRA Sirius SA70D
The PIXFRA Sirius SA70D thermal imaging monocular represents the latest thermal imaging technology in a compact, weatherproof housing – perfect for hunting, wildlife observation, and security applications. The high-resolution VOx sensor (1280×1024, 12 µm, <18 mK NETD) combined with a variable 50/70 mm f1.92/1.1 lens and a large 1920×1080 OLED display delivers excellent thermal images with high detail accuracy – even in complete darkness or poor weather.

Optimal visibility & high range for any hunting situation
The SA70D allows for a flexible field of view from 43.9 m to 21.9 m at 100 m with its variable optics, as well as a detection distance of up to 3600 m. This makes it ideal for sitting, stalking, and field observation. The integrated hotspot tracking ensures immediate detection of wildlife or heat sources.

Image quality at the highest level – thanks to AI & firmware
Thanks to the PIPS 2.0 firmware (Pixfra Imaging Processing System), users benefit from noise reduction, edge sharpening, and improved digital zoom. The AI-based Adaptive Image Calibration (AAIC) continuously learns and automatically optimizes contrast and clarity in real-time – for a consistent, impressive image presentation.

More features for more control
The PIXFRA Sirius SA70D offers:

6 color palettes (including White-hot, Black-hot, Rainbow)
Recording function for images & videos (64 GB internal storage)
WLAN livestream to up to 4 devices simultaneously
Electronic compass for optimal orientation
Replaceable battery system with up to 4.5 hours of runtime per battery

Robust design – ready for use in any weather
The magnesium alloy housing is IP67 certified, making it dust & waterproof and absolutely temperature resistant from -30 °C to +55 °C. The device remains operational and reliable even under the most extreme conditions.

Technical highlights:

Thermal sensor: 1280×1024 VOx HD / 12 µm pitch / <18 mK NETD
Lens: Variable 50 mm / 70 mm (f1.92 / f1.1)
Detection range: up to 3600 m
Field of view (at 100 m): 43.9 m (50 mm) to 21.9 m (70 mm)
Display: 0.49″ OLED, 1920×1080 resolution
Firmware: PIPS 2.0 (with image enhancement & zoom optimization)
Image processing: AI-supported with AAIC (Adaptive Image Calibration)
Colors: 6 color palettes + hot-tracking
Recording function: Photos & videos with 64 GB storage
WLAN: up to 4 devices, 20 m range
Battery life: approx. 4.5 h / battery (replaceable)
Protection class: IP67 (waterproof, dustproof)
Dimensions & weight: 251.5 × 79.4 × 90.3 mm / 908 g

Scope of delivery:

PIXFRA Sirius SA70D thermal imaging device
Protective case
Carrying strap
Hand strap
USB-C cable
User manual
