Noblex ZF NZ8 Inception 2.5-20×50 LR

NOBLEX NZ8 Inception 2.5-20×50 FFP LR Abs. MHR


Features:

8-fold magnification range from 2.5 to 20 times
magnifying, fine MHR reticle (1st focal plane)
Hybrid riflescope for hunting and sport shooters
no point of impact shift during magnification change
new elevation adjustment (up to 3 rotations) with cleanly felt "clicks" (optional fixation on one rotation)
with parallax adjustment for clip-on night vision and thermal imaging devices
Zero Stop
20% extended zoom lever

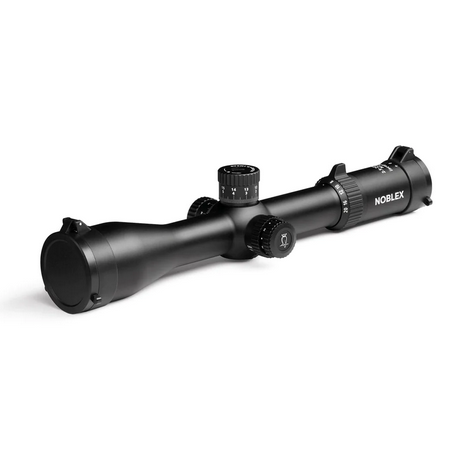

including "flip" objective and eyepiece caps
with reinforced outer housing – prepared for night vision and thermal imaging devices (without additional adapter)


Technical Data:

Magnification: 2.5 – 20x
Objective lens diameter: 50 mm
Outer diameter: 59 mm
Tube diameter: 34 mm
Reticle: MHR
Exit pupil diameter: 20 – 2.5 mm
Field of view 2.5-20x (at 100 m): 14 – 2.2 m
Weight: 815 g
Adjustment (elevation/windage, at 100 m): 1/10 mils (1 cm)
Adjustment range of elevation (at 100 m): max. 32 mils (320 cm)
Adjustment range of elevation per rotation (at 100 m): max. 9.5 mils (95 cm)
Adjustment range of windage (at 100 m): 30 mils (300 cm) (15 mils L / 15 mils R)


MHR Reticle:
The new MHR (Mil-Hunting-Reticle) is located in the 1st focal plane and offers the shooter a variety of options to estimate or measure important parameters based on cover measurements. The positioning in the 1st focal plane prevents any form of point of impact shift during magnification changes. Thus, it is inherently superior to comparable models with reticles in the 2nd focal plane in this discipline. In the past, the magnifying reticle often obscured the targeted object. Thanks to a new production process, the reticle has been crafted so delicately that even at maximum magnification, the object is no longer obscured. At lower magnification, it resembles a plexiglass reticle with a fine crosshair in the center.
At high magnification, the additional MRAD markings are clearly visible and help the sport shooter to extract the maximum performance from the weapon.
