MINOX RS-4 3-12×56 riflescope

The new MINOX RS-4 riflescopes
For a safe shot in any situation and under all lighting conditions: The new MINOX RS-4 riflescopes with universal 4x zoom have everything a riflescope needs. High transmission, a precise, finely dimmable day/night illuminated reticle, and uncompromising stability. All four models feature a relatively large field of view at their respective magnifications. Beyond their convincing functionality, the MINOX RS-4 target optics impress with their slim and compact design as well as their strikingly beautiful aesthetics.

High magnification for long distances, bright in twilight

Especially suitable for long-distance shots and mountain hunting
Parallax adjustment from 10m
Optional with reticle quick adjustment
Fine fiber optic illuminated reticle

Convincing in all lighting conditions:
The fine fiber optic illuminated dot is dimmable in 10 levels, for use at night and in twilight up to driven hunt use in bright daylight. Excellent reticle for every situation!

Convincing in design:
The RS-4 riflescopes impress with their slim and compact construction, their aesthetically pleasing design, and low adjustment turrets that allow for an unobstructed view. Quality that you can see!

Convincing in combination:
The RS-4 riflescopes are particularly suitable for combination with attachment devices due to their compactness. Their comparatively short lengths allow for easy access and operation of the mounted attachment devices. Simple handling in hunting practice!

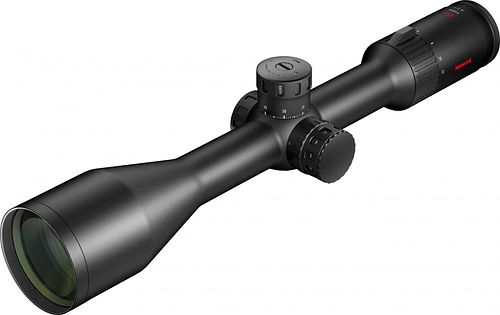

RS-4 3-12×56
For challenges such as mountain hunting, long distances, and twilight! The standard version of this target optic already makes it a specialist in twilight. The optionally available BDC adjustment turret (shown in the images!) with precisely adjustable zero stop can be locked in any position and is particularly suitable for long shots.

Riflescope

Magnification in x-fold

3-12

Exit pupil Ø in mm

10-4.6

Tube diameter Ø in mm

30 mm

Twilight number

8.5 – 25.9

Field of view at 100 m

13.3-3.3m/100m

Reticle

4

Reticle in image plane

2

Parallax adjustment

10m – ∞

Adjustment range height / side at 100 m

200cm/100m

Eye relief in mm

90 mm

Diopter adjustment

-3 to +2 diopters

Waterproof

Yes, nitrogen-filled

Adjustment per click

1cm/100m

Total length in mm

365 mm

Transmission in %

90 %

Outer diameter of objective in mm

62 mm

Internal thread of objective

M60 x 0.75

Outer diameter of eyepiece in mm

46 mm

Battery

CR2032

Reticle illumination

Yes, fiber optic
