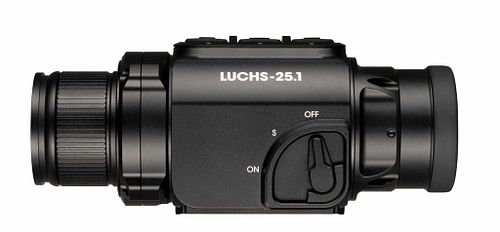

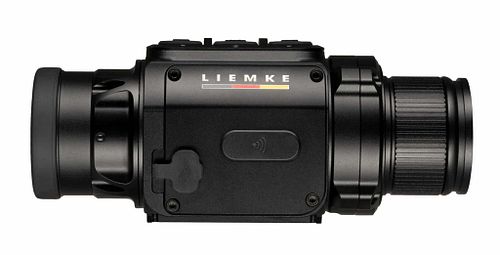

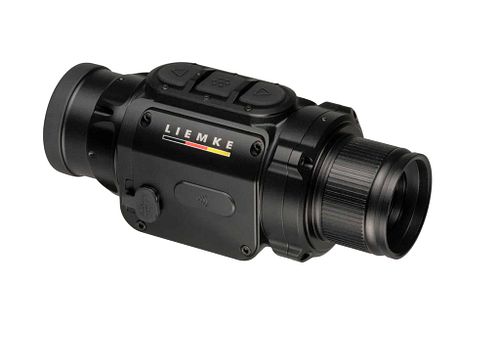

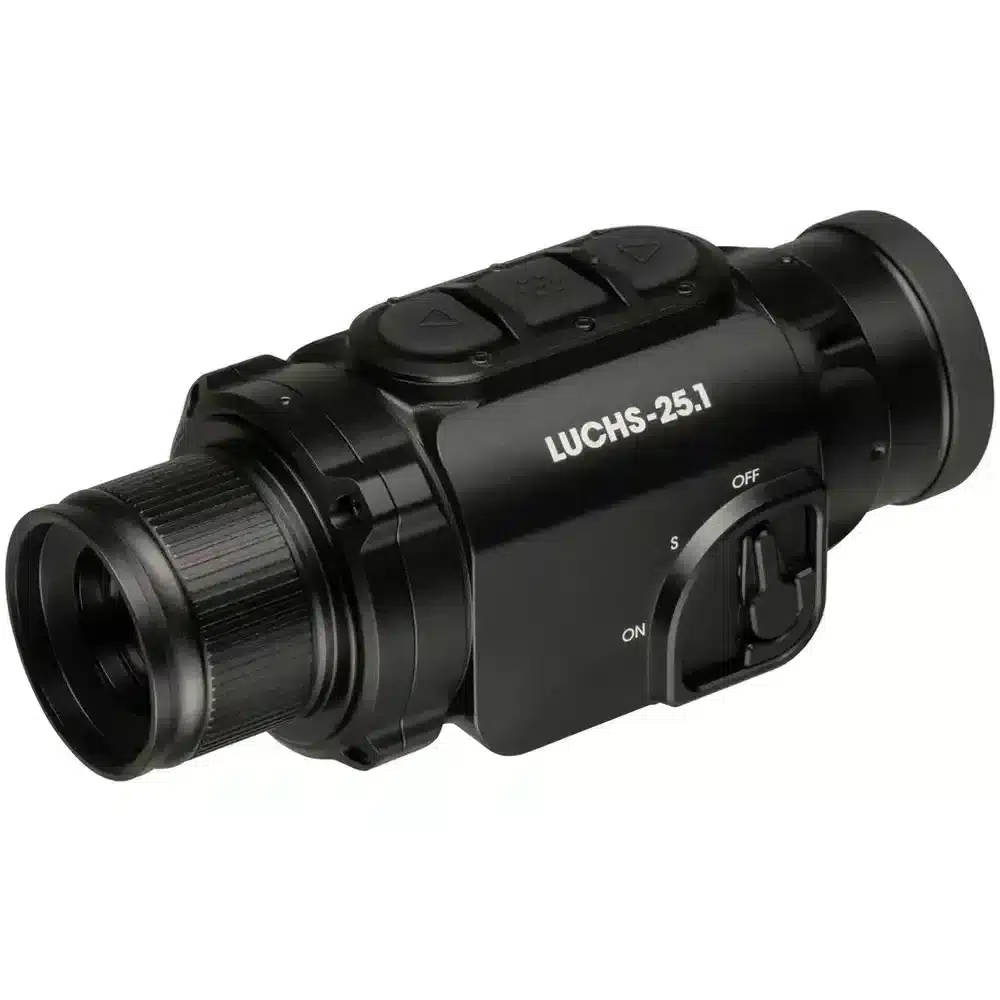

LIEMKE LUCHS-25.1 thermal imaging device attachment

```html
LIEMKE LUCHS-25.1
The universal stalking and sitting companion in forest and field areas.

Convincing image quality
25 mm objective lens, 384×288 VOx sensor
Intuitive operation
Quick and repeatable mounting
Made in Germany

Thanks to the combination of a powerful sensor with a universal 50 mm / 35 mm / 25 mm objective lens, the LUCHS family of attachments is suitable for both forest and field hunting and forms the ideal synergy with universal or driven hunt optics. All LUCHS models can be used as attachment optics, but also as handheld devices.

Thermal image

Magnification in x-fold

2 x

Resolution

384×288

Resolution type

VOx

Objective lens

25mmf/1.0

Maximum distance for person detection in m

1250

Image storage function

yes

Video storage function

yes

Storage medium included in GB

32 GB

USB connection

USB-C

Frame rate in Hertz

50 Hz

Pixel size in µm

12

Display size in pixels

1024×768 OLED

Battery life in hours

10

Weight in g

580 g

Length in mm

156 mm

Width in mm

64 mm

Height in mm

65 mm

Adapter thread

M43x0.75

Waterproof

IP67

Operating temperature

-20 °C to +50 °C

Pixel field of view in mrad

0.48 mrad

Make it complete with the repeatable articles from PRÄZISE JAGEN:
In the set (DUO connector and clamp sleeve) for an additional charge of 270.00 euros

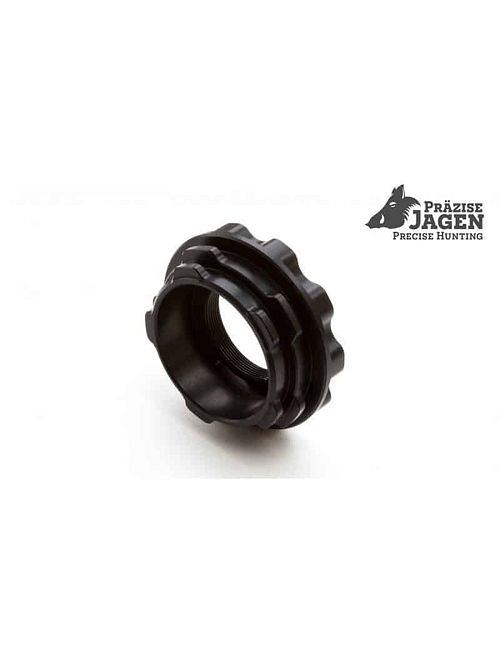

DUO Connector

The DUO connector features an internal thread (in different sizes) which allows it to be screwed onto the connection thread of the attachment device. An integrated counter mechanism prevents unwanted twisting of the attachment device. No additional counter nut is required.
The DUO connector can be combined with all different sizes of clamp sleeves. This allows you to use the attachment device on all weapons where you have mounted a clamp sleeve on the riflescope.
The DUO connectors are made of high-quality aluminum and are protected from corrosion and wear by a hard anodized layer.

Clamp Sleeve
The clamp sleeve is designed for mounting on the riflescope.
It is slid over a length of 40 mm (or 35 mm for diameters of 30, 34, and 36 mm) over the objective of the riflescope and is then screwed in place. It remains permanently on the riflescope.
The total diameter for clamp sleeves up to 61 mm objective diameter is 65 mm at the closure ring.
A protective film is applied to the contact surfaces of the clamp sleeve to the objective of the riflescope, which prevents damage to the riflescope and increases adhesion to the riflescope. This ensures that the clamp sleeve and thus the attachment device itself is not pulled off the riflescope even with strong calibers.
A special internal contour ensures precise alignment of the attachment device to the riflescope. The bayonet on the front side of the clamp sleeve serves as the basis for absolutely repeatable alignment of an attachment device with each new mounting.
Our clamp sleeve is made from a single piece of high-quality aluminum and is protected from corrosion and wear by a hard anodized layer.
```
