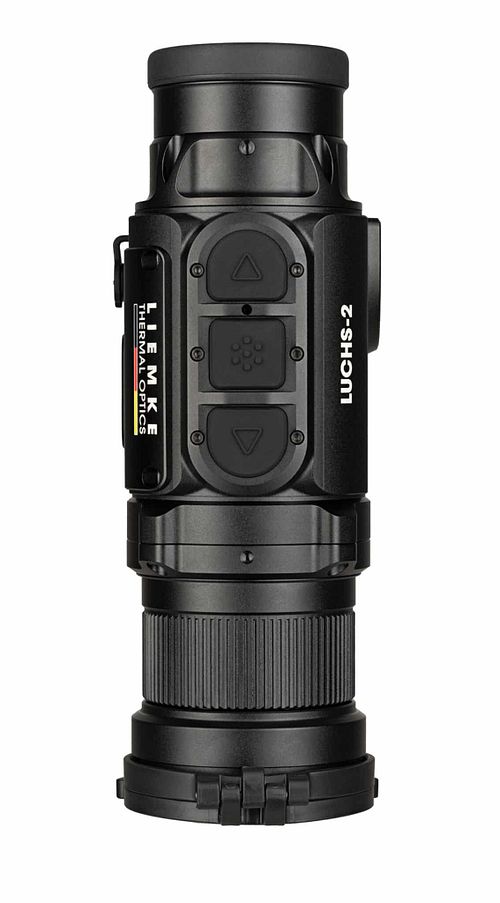

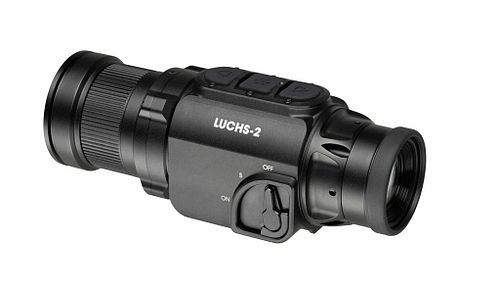

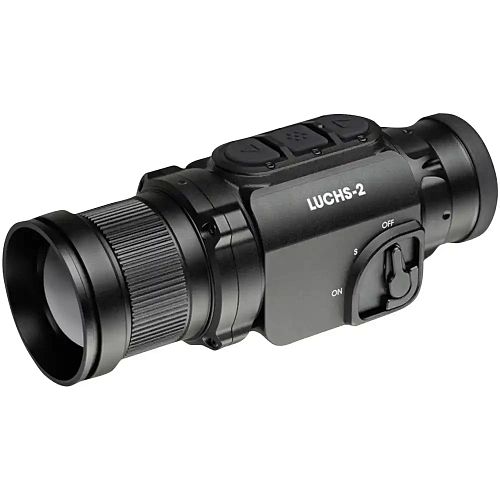

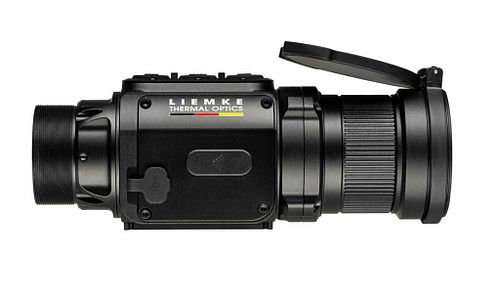

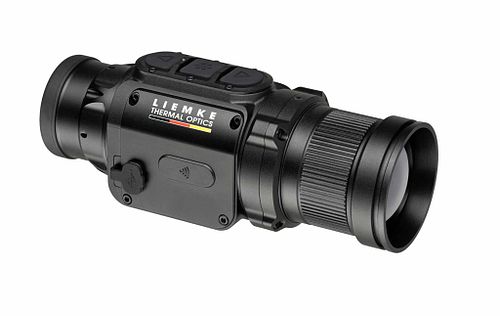

LIEMKE LUCHS-2
The premium all-rounder for forest and field hunting in mixed terrain.

Convincing image quality
35 mm objective lens, 640×512 VOX sensor
Intuitive operation
Fast and repeatable mounting
Made in Germany

Thanks to the combination of a powerful sensor with a universal 50 mm / 35 mm / 25 mm objective lens, the LUCHS family of attachment devices is suitable for both forest and field hunting and forms the ideal synergy with universal or driven hunt scopes. All LUCHS models can be used as attachment optics, but also as handheld devices.

Thermal image

Magnification in x-fold

1 x

Digital zoom

2x direct zoom available

Resolution

640×512

Resolution type

VOx

Objective lens

35 mm / F1.0

Detection range in m

1750 m

Image storage function

yes

Video storage function

yes

Storage medium included in GB

32 GB

Format of photo files

jpg

Format of video files

mp4

USB connection

USB-C

Frame rate in Hertz

50 Hz

Pixel size in µm

12 μm

Display type

OLED

Display size in pixels

1,024×768

Color modes

White Hot / Red Hot / Extra Dark / Black Hot / Rainbow

Battery life in hours

up to 9 hours of runtime

Weight in g

580 g

Length in mm

161 mm

Width in mm

64 mm

Height in mm

65 mm

Adapter thread

M43x0.75

Waterproof

IP67

Operating temperature

–20°C to +50°C

Complete it with the repeatable articles from PRÄZISE JAGEN:
In the set (DUO connector and clamp sleeve) for an additional price of 270.00 euros

DUO connector

The DUO connector features an internal thread (in different sizes) that screws onto the connection thread of the attachment device. An integrated counter mechanism prevents unwanted twisting of the attachment device. No additional counter nut is required.
The DUO connector can be combined with all different sizes of clamp sleeves. This allows you to use the attachment device on all weapons where you have mounted a clamp sleeve on the riflescope.
The DUO connectors are made of high-quality aluminum and are protected from corrosion and wear by a hard anodized layer.

Clamp sleeve
The clamp sleeve is designed for mounting on the riflescope.
It is slid over a length of 40 mm (or 35 mm for diameters of 30, 34, and 36 mm) over the objective of the riflescope and screwed in place. It remains permanently on the riflescope.
The total diameter for clamp sleeves up to 61 mm objective diameter is 65 mm at the closure ring.
A protective film is applied to the contact surfaces of the clamp sleeve to the objective of the riflescope, which prevents damage to the riflescope and increases adhesion to the riflescope. This ensures that the clamp sleeve and thus the attachment device itself are not pulled off the riflescope even with strong calibers.
A special internal contour achieves precise alignment of the attachment device to the riflescope. The bayonet on the front side of the clamp sleeve is the basis for absolutely repeatable alignment of an attachment device with each new mounting.
Our clamp sleeve is made from a single piece of high-quality aluminum and is protected from corrosion and wear by a hard anodized layer.
```
