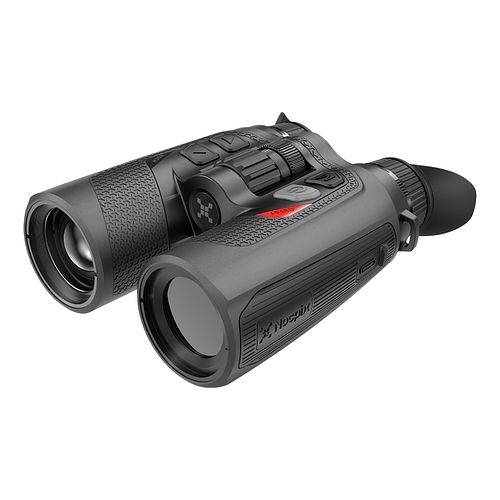

NOCPIX QUEST H35R with LRF thermal imaging binoculars

The Nocpix Quest H35R thermal imaging device features a large 640×512 px sensor, the comfort of binoculars, and an integrated laser rangefinder.

The advantage of this device lies in its binocular design, which ensures increased viewing comfort while weighing only 700 g.

Ideal for hunters who value a large field of view. The powerful sensor with a NETD value of ≤15 mK provides excellent thermal differentiation and smooth image display at 60 Hz. The 0.72‘‘ AMOLED display offers a resolution of 1,920×1,200 px and has a picture-in-picture function that facilitates zooming in on observation objects. The image display is customizable, with brightness and contrast adjustable manually, and it can be used in almost any weather. The Quest H35R is dust and waterproof according to IP67 and can be used at temperatures from -20 °C to 50 °C. With the integrated laser rangefinder, you can measure distances accurately up to 1,000 m. The dual power supply allows for a runtime of up to 6 hours, and the device can be powered via USB-C cable from an external power source. Additionally, you can capture photos and videos of your observations with the integrated camera. The package includes the Quest H35R, a carrying case, a carrying strap, two batteries, a charger, a data cable, a cleaning cloth, and a quick start guide.

Delivery contents

Quest H35R
Carrying case
Carrying strap
Lens cap
2 x 18650 battery
18650 battery charger
Data cable
Lens cleaning cloth
Quick start guide

Technical specifications

Type: Thermal imaging binocular with integrated laser rangefinder
Sensor: Vox uncooled 640×512 px @ 12 µm, NETD ≤15 mK
Frame rate: 60 Hz
Lens: 35 mm / F0.9
Diopter adjustment: ±5 dpt
Exit pupil: 10 mm
Distance to exit pupil: 25 mm
Adjustable eye distance range: 63-72 mm
Magnification: 3-24x
Field of view: 22×18 m at 100 m / 12.5°×10.0°
Detection range: 1,800 m
Display: 0.72‘‘ AMOLED 1,920×1,200 px
Integrated storage: 64 GB
Photo, video, and audio recording
App: Nocpix, connection via WiFi
Protection: Waterproof according to IP67
Operating temperature range: -20 °C to 50 °C
Battery: Built-in 4200mAh + replaceable 18650 battery
Operating time at 22 °C: Up to 6 h depending on usage
External power supply via USB-C cable
Laser: Class 1
Measuring range: 1,000 m
Measurement accuracy: ±1 m
Dimensions: 175.4×138×66 mm
Weight without replaceable battery: 700 g
