CONOTECH Aquila 335

Powerful Thermal Imaging Technology with Comfort – Conotech Aquila 335

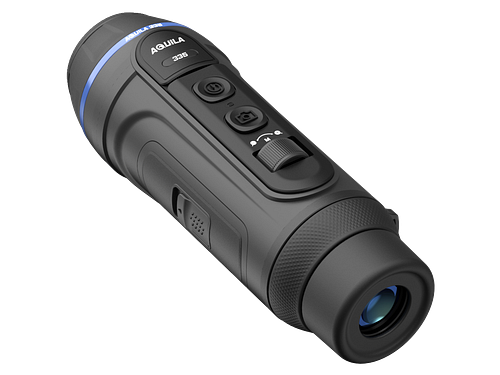

The Conotech Aquila 335 is a high-quality thermal imaging handheld device that stands out for its excellent image quality, ergonomic design, and high reliability. With a sensitive 384x288 pixel sensor (<20 mK), a bright 35-mm lens, and a brilliant OLED display with 1024x768 pixels, the device offers a high-contrast viewing experience – even in challenging conditions.
Intuitive operation & thoughtful design
Thanks to finger wheel focusing and optimized one-handed operation, the Aquila 335 can be comfortably used with both hands – ideal for left- and right-handed users. The integrated battery is complemented by an additional replaceable 18500 battery, allowing for up to 10 hours of continuous operation. The battery compartment can also be used as a separate charger.
Efficient technology for hunting use
With a field of view of 13 m at a distance of 100 m, digital zoom (3.3-13.8x), and various color modes for contrast enhancement, the device offers versatile applications both day and night. The fast charging time (up to 90% in about 1 hour) and app connectivity for Android & Apple complete the system.
FAQ
Is the device also suitable for glasses wearers?
Yes, thanks to the adjustable eyepiece adjustment mechanism, the Aquila 335 is very user-friendly for glasses wearers.
How long can I use the device with a single battery charge?
With the internal and external battery, a combined runtime of up to 10 hours is possible.
Is the device equipped with a distance measuring device?
No, an integrated laser distance measurer is not included with this model.
Can I also manage the saved data on mobile?
Yes, the device is compatible with an app (Android & iOS), allowing for mobile image management and settings.
Technical Data

Sensor:384 x 288 px, 12μm, NETD < 20 mK
Lens:35 mm
Field of View (100 m):13 m
Display:OLED, 1024 x 768 px
Zoom:3.3–13.8x (digital)
Battery Life:up to 10 h
Battery Type:internal battery + 18500 rechargeable battery
Weight:approx. 540 g
App:Android & iOS
