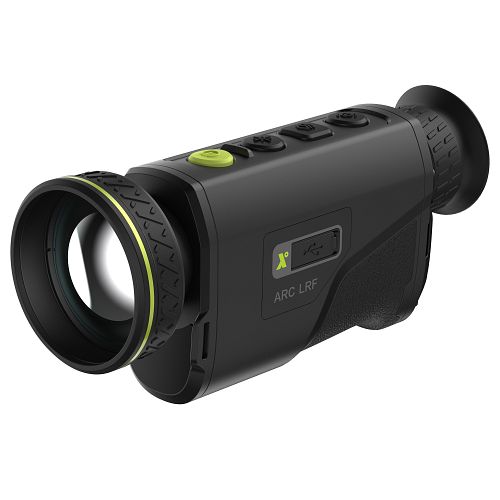

PIXFRA ARC LRF A650P

Compact and powerful thermal imaging device
The PIXFRA Arc LRF A650P combines advanced technology with a compact design. The highly sensitive VOx 640x512, 12µm, <20mK NETD sensor, the large f1.0 50mm lens, and the 1440 x 1080 OLED display ensure reliable detection and clear imaging of heat signatures up to 2600 m. A laser rangefinder, nearly invisible and integrated into the magnesium alloy housing, perfectly complements the Arc LRF. Despite all these powerful components inside, the Arc remains lightweight and compact, making it easy to store in any pocket.
Laser rangefinder with precise measurement up to 1000m
Nearly invisible and integrated into the housing, the laser rangefinder of the Arc LRF series reliably measures any distance from 5 - 1000 m, optionally as a single measurement at the push of a button or as a timed/continuous measurement.
Huge detection distance
With a field of view of 15.4 m (at 100 m), the enormous detection distance of 2600 m, and the high sensor resolution, the PIXFRA Arc LRF A650P is the ideal companion for field hunting and sitting, allowing for precise identification.
Modern firmware for razor-sharp images
The thermal imaging camera features the latest PIPS 2.0 firmware (Pixfra Imaging Processing System), which elevates image quality to a new level with features such as improved zoom, noise reduction, and edge sharpening.
6 color palettes:
There are 6 color palettes available: White-hot, Black-hot, Rainbow, Red-hot, Green-hot, and Sepia.
One battery charge lasts through the night
A powerful rechargeable battery (2 included) provides up to 6 hours of runtime, ensuring long operations without interruption.
Robust and reliable in any environment
With an IP67 certification, the thermal imaging device in its robust lightweight magnesium alloy housing is dust and waterproof, functioning flawlessly even in the harshest weather conditions like rain or fog. Additionally, the device operates reliably in extreme temperatures from -30 °C to +55 °C, thanks to its temperature-stabilized technology.
Stable live stream via Wi-Fi to smartphone and tablet
Wi-Fi connectivity allows for a fast and stable connection with up to four devices simultaneously and within a range of 20m.
Practical accessories and easy transport
The thermal imaging monocular comes with a high-quality case, a carrying strap, and a hand strap. This makes the device comfortable to use and easy to transport in any situation.
FEATURES

50 mm f1.0 lens with 2300 m detection distance, for precise identification in field hunting or sitting
640x512, 12µm, <20mK NETD thermal imaging sensor
Precise laser rangefinder up to 1000 m
Field of view (H: 15.4 m; V: 12.3 m) for detailed vision
PIPS 2.0 firmware: improved zoom, noise reduction, edge sharpening
6 color palettes: White-hot, Black-hot, Rainbow, Red-hot, Green-hot, and Sepia
Hotspot tracking for precise heat source detection
Recording and storage function for images and videos
32 GB internal storage
Fast and stable live stream via Wi-Fi
Waterproof and dustproof according to IP67
Replaceable battery, up to 6 hours of runtime per battery
Lightweight and compact
Dimensions/Weight: 186 mm × 59 mm × 82 mm / 430 g

SCOPE OF DELIVERY

Pixfra Arc LRF A650P thermal imaging device
Protective case
Carrying strap
Hand strap
USB-C cable
User manual
