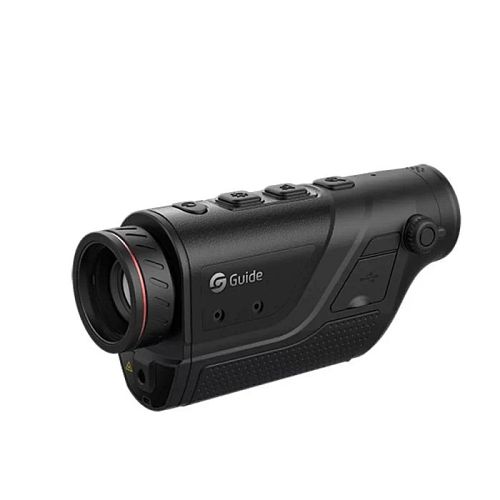

GUIDE TD410

The GUIDE TD410 – Compact thermal imaging monocular with high-resolution display and quick startHighly sensitive sensor for detailed thermal imagesThe GUIDE TD410 is equipped with an uncooled VOx detector that offers a resolution of 400 × 300 pixels and a pixel pitch of 12 μm. The thermal sensitivity is ≤ 40 mK NETD, allowing for precise detection of even small temperature differences.​High-resolution LCOS displayThe device features an LCOS display with a resolution of 1280 × 960 pixels, providing clear and high-contrast images for comfortable observation.​Quick start and easy operationWith a startup time of just 2 seconds, the TD410 is ready for use immediately. The intuitive operation allows for efficient use, especially during spontaneous observations.​Multiple color palettes and image modesThe device offers five color palettes – White hot, Black hot, Red hot, Iron red, and Blue hot – as well as a picture-in-picture mode (PiP) that allows for an enlarged view without obstructing the entire field of view.​Compact design and lightweightWith dimensions of 150 × 40 × 70 mm and a weight of only 350 g, the TD410 is extremely handy and easy to transport, facilitating mobile use.​Long operating time and replaceable batteryThe device is powered by a 18650 battery, providing an operating time of up to 7 hours. The battery is replaceable, ensuring longer use without interruption.​Robust and weatherproof housingThe IP66-certified housing protects the device from heavy rain, dust, and impacts, making it suitable for use in demanding conditions.​ConclusionThe GUIDE TD410 combines high-resolution thermal imaging technology with quick start, versatile image modes, and a robust, compact design. It is a reliable companion for various observations under diverse conditions.​ Scope of delivery: Thermal imaging device GUIDE TD410 18650 battery USB-C cable Lens cover Wrist strap Carrying case Quick start guide
