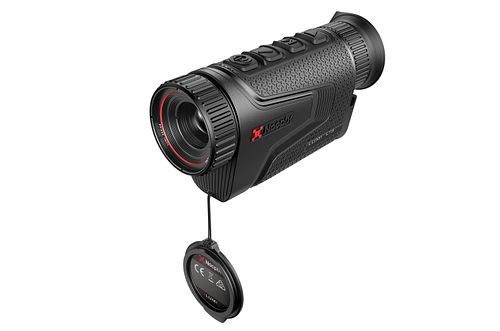

NOCPIX LUMI P13

The Lumi series makes a strong first impression with its compact housing and outstanding features. Thanks to the internally developed sensor technology and advanced Reality+ AI image algorithms, it offers exceptional image quality that sets standards in its class. The device is extremely user-friendly and comfortable to carry, with dimensions that are even smaller than those of a mobile phone.

A superior sensor sets standards
The sensor developed in-house ensures stable and excellent performance, guaranteeing outstanding image quality even under demanding conditions.

Extremely compact and handy design. xtrem pocket-sized and lightweight design.

F0.9 lens
The F0.9 lens is 20% more light-transmissive than a conventional F1.0 lens, resulting in brighter and clearer images.

Reality+ image enhancement algorithms
The latest image enhancement algorithms from Reality+ optimize image quality and reduce noise, allowing the full potential of the thermal sensor to be utilized.

Silent controls that do not startle wildlife.
The ultimate buttons ensure that no sounds are produced during operation that could disturb wildlife.

Fatigue-free viewing
The Lumi is equipped with a variety of color palettes, with the red and green palettes designed to prevent eye fatigue and allow for comfortable long-term use.

Replaceable 18650 battery
The Lumi is equipped with a replaceable 18650 battery that allows for uninterrupted use of up to 5 hours per charge.

10 mm exit pupil diameter
The eyepiece with a 10 mm exit pupil offers an optimal viewing angle and excellent visibility from all perspectives and in any situation.

Additional outstanding benefits
As a versatile product, the Lumi offers numerous advantages: it is protected according to dust protection class IP67, weighs only 330 g, features photo, video, and microphone functions, as well as 32 GB of storage, thus meeting the highest demands for quality and performance.

BROCHURE:
LUMI Brochure DE

Technical specifications:

Model
LUMI H35
LUMI L35
LUMI L19
LUMI P13

Thermal sensor
640×512, 12 μm
384×288, 12 μm
384×288, 12 μm
256×192, 12 μm

NETD (mK)
≤18
≤18
≤18
≤20

Frame rate (Hz)
50
50
50
50

Lens (mm)
35 F0.9
35 F0.9
19 F0.9
13 F0.9

Field of view (H×V)°/m@100m
12.5×9.4 / 22×16
7.5×5.7 / 13×10
13.8×10.4 / 24×18
13.5×10.1 / 24×18

Magnification (×)
2.5~20
4~16
2~8
2~8

Detection range (m)
1800
1800
980
670

Exit relief (mm)
25
25
25
25

Exit pupil (mm)
10
10
10
10

Diopter (D)
-5~+5
-5~+5
-5~+5
-5~+5

Display type
0.39-inch AMOLED
0.39-inch AMOLED
0.39-inch AMOLED
0.39-inch AMOLED

Display resolution
1024 × 768
1024 × 768
1024 × 768
1024 × 768

Battery type
Replaceable 18650
Replaceable 18650
Replaceable 18650
Replaceable 18650

Max. operating time (h, t=22℃)
4.5
4.5
4.5
6.0

Laser safety class
-
-
-
-

Max. distance of the LRF (m)
-
-
-
-

Microphone
Yes
Yes
Yes
Yes

Storage capacity (GB)
32
32
32
32

IP protection class
IP67
IP67
IP67
IP67

Operating temperature (℃)
-20 ~ +50
-20 ~ +50
-20 ~ +50
-20 ~ +50

Weight (g, with battery)
345
335
335
310

Dimensions (mm)
134×47×74
134×47×74
134×47×74
134×47×74

For more information, visit the manufacturer's page:

NOCPIX LUMI Series
