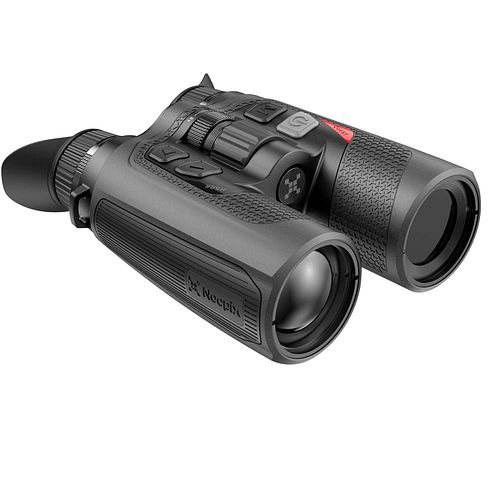

NOCPIX QUEST L35R – LRF

The QUEST is lightweight and portable, offering a detection range of up to 2600 m, as well as an integrated, concealed LRF with a range of 1000 m for outstanding accuracy and visibility. Its traditional binocular design features a full rubber coating and an IP67 rating for durability and comfort in harsh conditions. Equipped with a powerful 640x512 sensor (NETD ≤15 mK, 60 Hz), the QUEST delivers exceptional image sharpness, superior thermal sensitivity, and seamless performance in challenging environments.

Outstanding visual experience
The QUEST features R+ image enhancement for superior clarity and precision, paired with a 1920 x 1200 AMOLED display for an impressive, eye-friendly viewing experience.

One-handed operation
The QUEST offers ergonomic, non-slip handling with a simplified 4-button layout and centrally positioned scroll wheels for easy one-handed control and secure grip under all conditions.

Lightweight and portable
The QUEST weighs only 700 g and comes with a special carrying case. It provides easy transport and comfort for outdoor activities such as hunting and exploring.

No more energy worries
The QUEST series features a dual-battery design with a built-in and a replaceable 18650 battery, ensuring seamless switching and uninterrupted use during your adventure.

The traditional binocular experience
The QUEST features a traditional binocular design with a refined full rubber coating and an IP67 rating for water and dust resistance, ensuring both durability and overall comfort.

BROCHURE: QUEST Series

Technical specifications:

Model
Quest H50R
Quest H35R
Quest L35R

Thermal sensor
640×512, 12μm
640×512, 12μm
384×288, 12μm

NETD (mK)
≤15
≤15
≤15

Frame rate (Hz)
60
60
60

Lens (mm)
50F1.1
35F0.9
35F0.9

Field of view (H×V, °/m @100m)
8.8×7.0 / 15×12
12.5×10 / 22×18
7.5×5.7 / 13×10

Magnification (×)
4~32
3~24
5~20

Detection range (m, target size: 1.7m×0.5m, P(n)=99%)
2600
1800
1800

Exit pupil distance (mm)
25
25
25

Exit pupil diameter (mm)
10
10
10

Diopter adjustment (D)
±5
±5
±5

Display type
0.72 inch AMOLED
0.72 inch AMOLED
0.72 inch AMOLED

Display resolution
1920×1200
1920×1200
1920×1200

Battery type
Built-in & replaceable 18650
Built-in & replaceable 18650
Built-in & replaceable 18650

Max. operating time (at 22°C, h)
6
6
6

Laser safety class
Class 1
Class 1
Class 1

Max. distance measurement range (m)
1000
1000
1000

Microphone
Supported
Supported
Supported

Storage capacity (GB)
64
64
64

Protection class (IP)
IP67
IP67
IP67

Operating temperature (°C)
-20 ~ +50
-20 ~ +50
-20 ~ +50

Weight (g, with battery)
<700g
<700g
<700g

Dimensions (mm)
≤175.4×138×66
≤175.4×138×66
≤175.4×138×66
