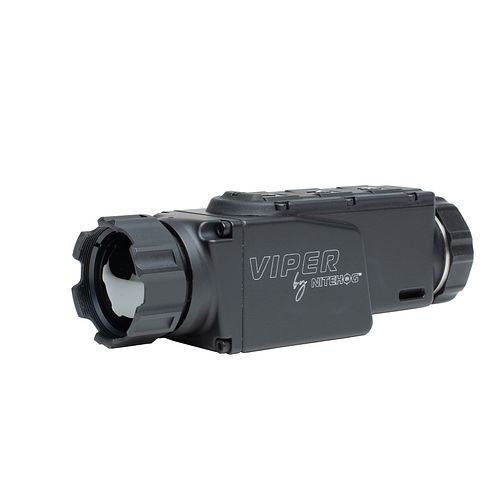

NITEHOG Viper 35

The NITEHOG Viper 35 impresses with reliability and efficiency, offering all users a top-notch thermal imaging solution for professional and private use.

Features:

The lightest and most compact attachment device in its class
Detection range of up to 1380 m
Uncompromising precision in shot placement repeatability
Ultra-flat profile
High-end electronics (A-Core 320) for optimal performance
12 μm thermal imaging detector
High-quality germanium objective lens
Housing made of magnesium alloy
No additional magnification required
Replaceable battery with a runtime of up to 5 hours

SMALL SIZE, ULTRA-FLAT PROFILE, NO REZEROING

The Viper weighs only 254 grams (without battery). Thanks to the sophisticated low-profile clip-on design, you do not need to remove your daytime sighting equipment, as the device mounts directly onto a standard daytime riflescope without tools. Most importantly, you do not have to rezero the rifle every time you change the sight, meaning the point of impact always remains the same.

GUARANTEED PRECISION

The VIPER offers uncompromising precision in shot placement repeatability. Due to our rigorous device testing, we can guarantee a standard deviation of up to 3 cm at 100 meters without alignment.

INCREDIBLE DETECTION RANGE OF UP TO 1380 METERS

By combining our powerful F 1.2 lens with a sensitive, state-of-the-art sensor, the VIPER offers incredible detection capabilities. A standard object of 1.8 meters can be seen up to 1380 meters even under difficult outdoor conditions.

A-CORE MODULE

The A-Core developed by Nitehog is an ultra-compact image processing engine based on cutting-edge hardware solutions and dedicated video processing algorithms, providing outstanding image quality and proven precision under the harshest environmental conditions.

CLEAR REAL-TIME IMAGE

By using a high-quality germanium lens with a scratch-resistant hard carbon coating and a pixel size of 12 micrometers, the VIPER offers the fastest 60 Hz frame rate on the market, allowing for crystal-clear observation of any object without delay.

SHARP VISION WITH NITEHOG IMAGE RAZOR

The Nitehog Image Razor technology enables our versatile software processing to apply various enhancements, ensuring clear and sharp vision in a variety of adverse environmental conditions such as fog, rain, snow, smoke, and complete darkness. The degree of these changes depends on the customer's preference for the displayed image and can be applied to any scene.

IMAGE MODES
The VIPER 35 offers a variety of image modes for different environments, situations, and personal preferences.

WHITE HOT

White hot is a versatile choice for observing urban areas and changing landscapes, displaying warmer objects in white and cooler objects in black.

BLACK HOT

Black hot displays warmer objects in black and cooler ones in white, making this mode a preferred choice among hunters and law enforcement agencies.

RED HOT

Red hot is a recommended mode for extended observation. The red-black image minimizes the blue light emissions from the display and reduces eye strain during prolonged use.

ISOTHERM

The isotherm mode colors objects above the threshold temperature in various shades of red. The temperature threshold can be adjusted using the available temperature scale (increase/decrease).

Technical Specifications
Sensor
Type: Microbolometer, uncooled
Resolution: 320x240 pixels
Pixel size (pitch): 12 µm
Frame rate: 60 Hz

Optical Specifications
Objective lens: F35
iFOV (Instantaneous Field of View): 0.34 mrad
Digital zoom: 2x / 4x
Detection range: 1380 m (at target size 1.7 m x 0.5 m, P(n)=99%)

Display
Type: OLED
Resolution: 1024x768 pixels

Operating Specifications
Battery type: 18650
Maximum battery runtime: 5 hours (at 25°C)
Dimensions: 130x58x45 mm
Weight (without battery): 0.254 kg
Protection class: IP66
Startup time: < 5 seconds
Operating temperature range: -20°C to +50°C

SCOPE OF DELIVERY

Lens Pen
Charger
