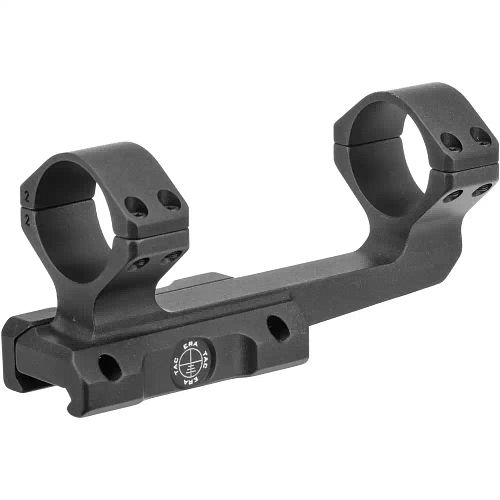

ERATAC Ultralight - Extended Block Mount - 20 MOA - 34 mm

Weight under 150 grams! Specifically designed for official use on assault rifles of the type AR15 as well as for use in dynamic shooting disciplines such as IPSC, the variant extended by 56 mm was developed, which provides sufficient eye relief for all shooting positions. The shortened mounting foot also facilitates gripping the adjustment ring for magnification.

With a focus on the needs of users, a scope mount was created that impresses with its very low weight in its minimalist design. Compared to our standard block mounts, the weight has been reduced by about 50%. The universal interface was deliberately omitted.

Specifically designed for official use on assault rifles of the type AR 15 as well as for use in dynamic shooting disciplines such as IPSC, the offset variant extended by 56 mm before the clamp was developed. It offers sufficient eye relief for all shooting positions. The shortened mounting foot also facilitates gripping the adjustment ring for magnification. The version with 20 MOA inclination is particularly suitable for shooting at long distances.
Manufactured to military standards
Manufactured to military standards and the hard-anodized surface according to Mil-Spec Type III matte black guarantee absolute rust-free components. The clamping on Picatinny rails is done using Torx screws and provides a secure connection that does not rely on loseable parts.
100% recoil-proof
All ultra-light mounts impress with their absolute recoil resistance up to caliber .50, which has been impressively demonstrated through independent testing.

TECHNICAL DATA
Ø 25.4 mm / 1"

Construction height: 24 mm / 0.96"
Axis height: 37 mm / 1.46"
Inclination: -
Weight: 146 g / 5.15 oz
Order No.: T3022-0024

Ø 30 mm

Construction height: 22 mm / 0.87"
Axis height: 37 mm / 1.46"
Inclination: -
Weight: 147 g / 5.19 oz
Order No.: T3023-0022

Ø 34 mm

Construction height: 20 mm / 0.79"
Axis height: 37 mm / 1.46"
Inclination: -
Weight: 148 g / 5.22 oz
Order No.: T3024-0020

Ø 25.4 mm / 1" (with 20 MOA)

Construction height: 24 mm / 0.96"
Axis height: ~35 mm / ~1.38"
Inclination: 20 MOA
Weight: 146 g / 5.15 oz
Order No.: T3022-2024

Ø 30 mm (with 20 MOA)

Construction height: 22 mm / 0.87"
Axis height: ~35 mm / ~1.38"
Inclination: 20 MOA
Weight: 147 g / 5.19 oz
Order No.: T3023-2022

Ø 34 mm (with 20 MOA)

Construction height: 20 mm / 0.79"
Axis height: ~35 mm / ~1.38"
Inclination: 20 MOA
Weight: 148 g / 5.22 oz
Order No.: T3024-2020

For more information & details, visit the manufacturer's page:

ERATAC Blockmontagen
