GUIDE TE411 thermal imaging handheld device

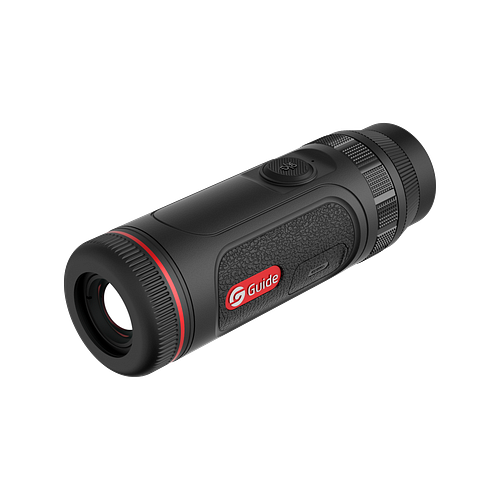

Compact Thermal Imaging Monocular for Outdoor Adventures – Guide TE411
Compact thermal imaging technology for clear visibility at night
The Guide TE411 is a powerful thermal imaging monocular that offers maximum precision in a compact, lightweight design. With a 400 × 300 pixel sensor and a NETD sensitivity of <25 mK, it enables detailed and high-contrast thermal imaging – ideal for outdoor enthusiasts, hunters, and security applications.
Highly sensitive 12μm thermal imaging sensor
Thanks to the highly sensitive 12μm sensor, the TE411 detects even the smallest temperature differences. The 19mm lens ensures precise detection at medium distances with a field of view of 23 × 23° at 100 meters.
High-Resolution AMOLED Display
The 800 × 600 AMOLED display provides brilliant color reproduction and clear image representation with high contrast. The comfortable eyepiece with 25mm eye relief reduces eye strain and ensures a pleasant viewing experience.
Extended fast charging function for uninterrupted use
The TE411 features a 5-hour battery life and a 20W fast charging function, allowing for uninterrupted operation for one hour with just 10 minutes of charging time – perfect for spontaneous deployments.
Intuitive Operation with One-Button Control
The device has been optimized for effortless operation. With just one button and a rotary knob, all functions can be controlled, allowing for seamless handling.
Integrated Photos, Videos, and Audio Recorder
Thanks to the 16 GB internal storage, you can directly save and manage photos, videos, and audio recordings. This makes it easy to capture and share special moments.
Dual-Band WiFi for Real-Time Transmission
The enhanced dual-band WiFi connectivity enables stable and fast data transmission. Upgrade packages can be downloaded in just 10 seconds, and the maximum transmission distance is up to 26.5 meters.
Technical Data

Property
Details


Sensor
400 × 300 infrared sensor


Pixel Size
12 µm


Frame Rate
50 Hz


Spectral Range
8–14 µm


NETD
< 25 mK


Display
800 × 600 AMOLED


Lens
19 mm


Field of View
23 × 23° at 100 m


Digital Zoom
Yes


Laser Rangefinder
No


WiFi & App
Yes, Dual-Band WiFi


Battery Life
Up to 5 hours


Battery Type
Fixed built-in battery


Weight
308 g


Scope of Delivery
USB-C cable, hand strap, lens cover, quick guide, safety information, warranty card
