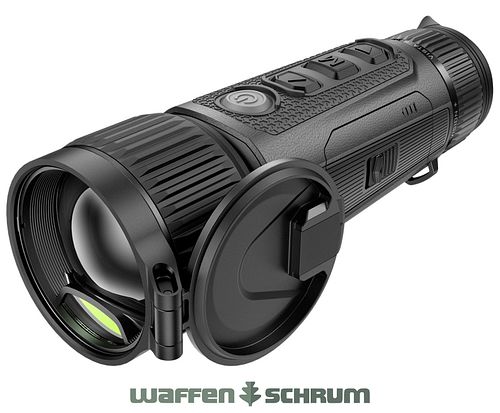

Nocpix Vista S50R with LRF

Nocpix has given its Vista series a new flagship – the Vista S50R with an integrated laser rangefinder and a truly large sensor of 1,280x1,024 px.The thermal imaging device Nocpix Vista S50R impresses with its proprietary large 1,280x1,024 px sensor, a field of view of 31 m at 100 m, its 2,560×2,560 px AMOLED display, and its ergonomic design. It also features an integrated laser rangefinder that makes it easier for you to make shooting decisions with its accurate information. The device, with its compact dimensions and lightweight, can be conveniently taken along for any hunting situation at night and can also be used during the day to track camouflaged game in the underbrush.

The Sensor
The Vista S50R features a large thermal imaging sensor developed by Nocpix with a resolution of 1,280x1,024 px, with a pixel pitch of 12 µm. A NETD value of ≤15 mK ensures a high thermal differentiation capability. The frame rate is 60 Hz, significantly improving the detection of moving objects. Compared to conventional 50 Hz detectors, the display is smoother and more precise, with less noise and more detailed and contrast-rich images. The detection range of the monocular with its 50 mm lens is 2,600 m.

The Display
The large 2,560×2,560 px AMOLED display features the helpful picture-in-picture (PiP) function. This shows you a zoomed image of the observation object in a frame in the upper display field when needed. An ultra-clear mode combined with the R+ image algorithm allows for quick detection and identification of animals in any weather and under all environmental conditions. Depending on individual needs and the observation situation, you can choose from 7 color palettes to adjust the image: white-hot, black-hot, red-hot, color, highlight, monochrome red, and monochrome green. Brightness, contrast, and sharpness can be manually adjusted in levels 1-10.

The Device
The Vista S50R impresses with its excellent haptics. It fits well in the hand with its TPU leather-textured housing, which does not cramp even during prolonged use. Its symmetrical design with the arrangement of the silent buttons on the top makes it perfectly operable with both hands. Difficult environmental conditions are not an issue. The device is dust and waterproof according to IP67. The F0.9 lens of the Vista S50R increases light intake by 20% compared to standard F1.0 lenses.

The Laser Rangefinder
You can use the integrated Class 1 laser rangefinder in the "Single Measurement" (SGL) and "Scan" (CONT) modes. The maximum measurement range is 1,200 m. This way, you always know exactly how far your target is and can make the right decision for the shot.

Battery Life
The replaceable Li-ion battery IBP-7 / 4,400 mAh allows for continuous operation of the Vista S50R thermal imaging device for up to 4.5 hours. The battery is easy to replace in no time. Charging is quick via the device using a USB Type-C cable. You can also permanently power the instrument via an external power source, for example, during stationary use.

Camera and Connectivity
With the integrated camera, you can document your observations and the process of tracking game as photos and videos with sound. The internal memory has a capacity of 64 GB. Using the Nocpix app – available for iOS and Android – you can connect the thermal imaging device to your smartphone via the integrated Wi-Fi module. This way, you will also always receive the latest software updates. Images and videos are transmitted in real-time to the monitors of mobile devices. Additionally, you can control your Vista S50R remotely through this.

Scope of Delivery
Vista S50R thermal imaging monocular with integrated laser rangefinderCarrying case2 x battery pack IBP-7Data / charging cable USB Type-CCarrying strapLens cleaning clothQuick start guide
Technical Specifications
Sensor: 1280x1024 px @ 12 µm, NETD ≤15 mKFrame rate: 60 HzLens: 50 mm / F0.9Diopter adjustment: -4 to +6Exit pupil: 8 mmDistance of exit pupil: 25 mmMagnification: 2-40xField of view: 31x25 m at 100 m / 17.5°x14.0°Detection range: 2,600 mDisplay: AMOLED 2,560×2,560 pxIntegrated memory: 64 GBApp: Nocpix, connection via Wi-FiProtection: waterproof according to IP67Operating temperature range: -25 °C to 50 °CBattery: Li-ion battery IBP-7, replaceable, 4,400 mAhOperating time at 22 °C: 4.5 hExternal power supply USB Type-CLaser: Class 1Measurement range: 1,200 mDimensions: 201x70x82 mmWeight: 690 g
