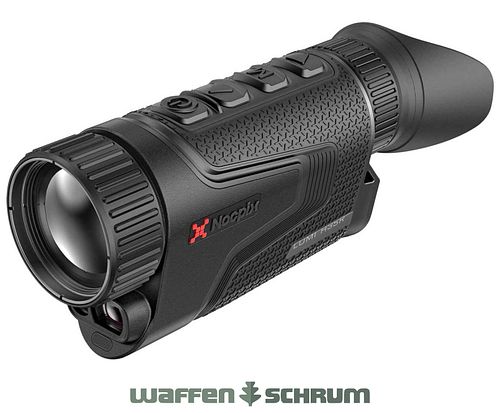

Nocpix LUMI H35R with LRF

The H35R thermal imaging monocular features a resolution of 640×512 px, not only boasting the largest sensor in the Nocpix Lumi series but also an integrated laser rangefinder.Nocpix meets the trend of combining thermal imaging devices with laser rangefinders by upgrading the Lumi L35 and Lumi H35. The lightweight and compact Nocpix thermal imaging device Lumi H35R is a powerful and reliable thermal instrument with an integrated laser rangefinder. The vertically mounted 12 µm sensor from Nocpix, its detection range of 1,800 m, the 8x zoom, and its ergonomic and intuitively operable design speak for themselves. With its compact dimensions and low weight, it can be taken in any bag for night hunting and can also be used during the day in dense foliage or in overcast and foggy weather.

The Sensor
The Lumi H35R is equipped with a thermal imaging sensor developed by Nocpix itself, featuring a resolution of 640×512 px, with a pixel pitch of 12 µm. A NETD value of ≤18 mK ensures good thermal differentiation. The frame rate is 50 Hz, providing clear, detailed, and high-contrast images. The detection range of the monocular is 1,800 m. With its 35 mm lens, it offers a large field of view of 22×16 m at 100 m.

The Display
The large 1,024×768 px AMOLED display features the helpful picture-in-picture (PiP) function. This shows you a 2x zoomed image of the observation object in a frame in the upper display field when needed. An ultra-clear mode combined with the Reality+ AI image algorithm allows for quick detection and identification of animals in any weather and under almost all environmental conditions. Depending on individual needs and the observation situation, you can choose from 7 color palettes to adjust the image: White-hot, Black-hot, Red-hot, Color, Highlight, Monochrome Red, and Monochrome Green. Brightness, contrast, and sharpness can be manually adjusted in levels 1-10. An electronic image stabilization ensures steady observation, even if your hands tremble in cold weather or after exertion.

The Device
The Lumi H35 impresses with its excellent haptics. It fits well in the hand, which does not cramp even during prolonged use. Its symmetrical design with the arrangement of buttons on the top makes it perfectly operable with both hands. The buttons operate silently, so shy game is not scared away. Difficult environmental conditions are no problem for observation; the device is dust and waterproof according to IP67. The F0.9 lens of the Lumi H35 increases light intake by 20% compared to standard F1.0 lenses.

The Laser Rangefinder
The integrated laser rangefinder of safety class 1 in the Lumi H35R thermal imaging device can be used in single measurement and scan modes. The maximum measurement range is 800 m. This way, you always know accurately how far your target is and can make the right decision for the shot.

Battery Life
The replaceable Li-ion 18650 battery allows for continuous operation of the Lumi H35R thermal imaging device for up to 4.5 hours, depending on the activated features. The battery is easy to replace in no time. Charging is done with the included charger. You can also power the device continuously via USB Type-C cable from an external power source, for example, during stationary use. If the external power supply is interrupted, the Lumi H35R automatically switches to battery operation without interruption.

Camera and Connectivity
With the integrated camera, you can document your observations and the tracking process of wildlife as photos and videos with sound. The internal memory has a capacity of 32 GB. Using the Nocpix app – available for iOS and Android – you can connect the thermal imaging device to your smartphone via the integrated WiFi module. This way, you will also always receive the latest software updates. Images and videos are transmitted in real-time to the monitors of mobile devices. Additionally, you can remotely control your Lumi H35R through this.

Scope of Delivery
Lumi H35R thermal imaging monocular with laser rangefinderCarrying case2 x 18650 battery packBattery chargerData/power supply cable USB Type-CCarrying strapLens cleaning clothQuick guide
Technical Data
Sensor: 640×512 px @ 12 µm, NETD ≤18 mKFrame rate: 50 HzLens: 35 mm / F0.9Diopter adjustment: -5 to +5Pupil exit: 10 mmDistance of pupil exit: 25 mmMagnification: 2.5-20x (8x zoom)Field of view (WxH): 12.5°×9.4° / 22×16 m at 100 mDetection range: 1,800 mDisplay: AMOLED 1024×768 pxInternal memory: 32 GBApp: Nocpix, connection via WiFiProtection: waterproof according to IP67Operating temperature range: -20 °C to 50 °CBattery: Li-ion 18650 battery, replaceableOperating time at 22 °C: max. 4.5 hExternal power supply USB Type-CLaser: safety class 1Measurement range: 800 m
