Nocpix LUMI L19

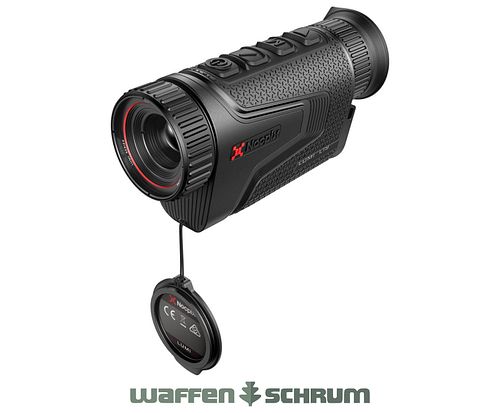

The compact and lightweight thermal imaging monocular Lumi L19 from Nocpix delivers enormous performance for its size at an affordable price.The Nocpix thermal imaging device Lumi L19 is a powerful thermal instrument compressed into extremely compact dimensions. The 12 µm sensor from Nocpix, a large field of view, and its ergonomic and intuitively operable design speak for themselves. With dimensions of only 139×47×74 mm and a weight of 335 g with battery, it can be taken in your pocket for any night hunting and can also be used during the day in dense foliage or in overcast and foggy weather.The SensorThe Lumi L19 is equipped with a thermal imaging sensor developed by Nocpix with a resolution of 384×288 px, with a pixel pitch of 12 µm. A NETD value of ≤18 mK ensures good thermal differentiation. The frame rate is 50 Hz, providing clear, detailed, and high-contrast images. The detection range of the monocular is 980 m. With its 19 mm lens, it has a large field of view of 24×18 m at 100 m.The DisplayThe large 1,024×768 px AMOLED display features a helpful picture-in-picture (PiP) function. This shows you a 2x zoomed image of the observation object in a frame in the upper display field if needed. An ultra-clear mode combined with the Reality+ AI image algorithm allows for quick detection and identification of animals in any weather and under all environmental conditions. Depending on individual needs and the observation situation, you can choose from 7 color palettes to adjust the image: white-hot, black-hot, red-hot, color, highlight, monochrome red, and monochrome green. Brightness, contrast, and sharpness can be manually adjusted in levels 1-10. An electronic image stabilization ensures steady observation, even if your hands tremble in cold weather or after exertion.The DeviceThe Lumi L19 impresses with its excellent haptics. It fits well in the hand, which does not cramp even during prolonged use. Its symmetrical design with the arrangement of the four buttons on the top makes it perfectly operable with both hands. The buttons can be operated silently, so shy game is not scared away. Difficult environmental conditions are no problem for observation; the device is dust and waterproof according to IP67. The F0.9 lens of the Lumi L19 increases light intake by 20% compared to standard F1.0 lenses.Operating TimeThe replaceable Li-ion 18650 battery allows for continuous operation of the Lumi L19 thermal imaging device for up to 4.5 hours, depending on the activated features. The battery is easy to replace in no time. Charging is done with the included charger. You can also permanently power the device via USB Type-C cable from an external power source, for example, during stationary use. If the external power supply is interrupted, the Lumi L19 automatically switches to battery operation without interruption.Camera and ConnectivityWith the integrated camera, you can document your observations and the process of tracking game as photos and videos with sound. The internal memory has a capacity of 32 GB. Using the Nocpix app – available for iOS and Android – you can connect the thermal imaging device to your smartphone via the integrated WiFi module. This way, you will also always receive the latest software updates. Images and videos are transmitted in real-time to the monitors of mobile devices. Additionally, you can remotely control your Lumi L19 through this.Scope of DeliveryLumi L19 thermal imaging monocularCarrying case2 x 18650 battery packBattery chargerData/power supply cable USB Type-CCarrying strapLens cleaning clothQuick start guideTechnical SpecificationsSensor: 384×288 px @ 12 µm, NETD ≤18 mKFrame rate: 50 HzLens: 19 mm / F0.9Diopter adjustment: -5 to +5Exit pupil: 10 mmDistance of exit pupil: 25 mmMagnification: 2-8x (4x zoom)Field of view (WxH): 13.8°×10.4° / 24×18 m at 100 mDetection range: 980 mDisplay: AMOLED 1024×768 pxInternal memory: 32 GBApp: Nocpix, connection via WiFiProtection: waterproof according to IP67Operating temperature range: -20 °C to 50 °CBattery: Li-ion 18650 battery, replaceableOperating time at 22 °C: max. 4.5 hExternal power supply USB Type-CDimensions: 139×47×74 mmWeight with battery: 335 g
