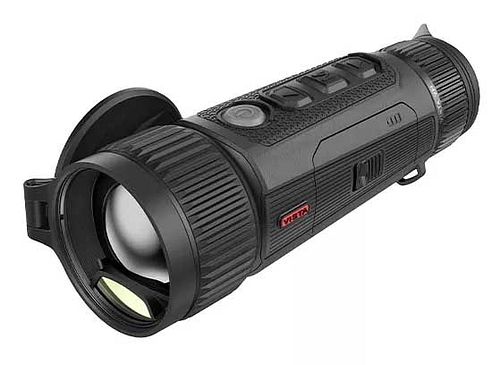

Nocpix Vista H50R with LRF

The thermal imaging monocular Vista H50R from Nocpix is a reliable and comfortable device with an integrated laser rangefinderThe thermal imaging device Nocpix Vista H50R features an integrated laser rangefinder that makes it easier for you to make shooting decisions with its accurate information. The device also impresses with its proprietary 640x512 px sensor, an exit pupil of 8 mm, a 2,560×2,560 px AMOLED display, and its ergonomic design. With dimensions of 194×70×82 mm and a weight of 650 g with battery, it can be conveniently taken into any hunting situation at night and can also be used during the day to spot camouflaged game in the underbrush.

The Sensor
The Vista H50R is equipped with a thermal imaging sensor developed by Nocpix with a resolution of 640x512 px, with a pixel pitch of 12 µm. A NETD value of ≤15 mK ensures a high thermal differentiation capability. The frame rate is 60 Hz, which significantly improves the detection of moving objects. Compared to conventional 50 Hz detectors, the representation is smoother and more precise, with less noise and more detailed and contrast-rich images. The detection range of the monocular with its 50 mm lens is 2,600 m.

The Display
The large 2,560×2,560 px AMOLED display features the helpful picture-in-picture (PiP) function. This shows you a zoomed image of the observation object in a frame in the upper display field when needed. An ultra-clear mode combined with the R+ image algorithm allows for quick detection and identification of animals in any weather and under all environmental conditions. Depending on individual needs and the observation situation, you can choose from 7 color palettes to adjust the image: white-hot, black-hot, red-hot, color, highlight, monochrome red, and monochrome green. Brightness, contrast, and sharpness can be manually adjusted in levels 1-10.

The Device
The Vista H50R stands out for its excellent haptics. It fits well in the hand with its TPU leather-textured housing, which does not cramp even during prolonged use. Its symmetrical design with the arrangement of the four silent buttons on the top makes it perfectly operable with both hands. Difficult environmental conditions are not an issue. The device is dust and waterproof according to IP67. The F0.9 lens of the Vista H50R increases light intake by 20% compared to the usual F1.0 lenses.

The Laser Rangefinder
The integrated laser rangefinder of safety class 1 can be used in "single measurement" (SGL) and "scan" (CONT) modes. The maximum measuring range is 1,200 m. This way, you always know exactly how far your target is and can make the right decision for the shot.

Battery Life
The replaceable Li-ion battery IBP-7 / 4400 mAh allows for continuous operation of the Vista H50R thermal imaging device for up to 5.5 hours. The battery is easy to replace in no time. Charging is quick via the device using a USB Type-C cable. You can also permanently power the device via an external power source, for example, during stationary use.

Camera and Connectivity
With the integrated camera, you can document your observations and the process of tracking game as photos and videos with sound. The internal memory has a capacity of 64 GB. Using the Nocpix app – available for iOS and Android – you can connect the thermal imaging device to your smartphone via the integrated Wi-Fi module. This way, you will also always receive the latest software updates. Images and videos are transmitted in real-time to the monitors of mobile devices. Additionally, you can remotely control your Vista H50R through this connection.

Scope of Delivery
Vista H50R thermal imaging monocular with integrated laser rangefinderCarrying case2 x battery pack IBP-7Data/charging cable USB Type-CCarrying strapLens cleaning clothQuick start guide
Technical Data
Sensor: 640x512 px @ 12 µm, NETD ≤15 mKFrame rate: 60 HzLens: 50 mm / F0.9Diopter adjustment: -4 to +6Exit pupil: 8 mmExit relief: 25 mmMagnification: 4-40x (8x zoom)Field of view (WxH): 8.8°×7.0° / 15×12 m at 100 mDetection range: 2,600 mDisplay: AMOLED 2,560×2,560 pxInternal memory: 64 GBApp: Nocpix, connection via WiFiProtection: waterproof according to IP67Operating temperature range: -25 °C to 50 °CBattery: Li-ion battery IBP-7, replaceable, 4,400 mAhOperating time at 22 °C: 5.5 hExternal power supply USB Type-CLaser: safety class 1Measuring range: 1,200 mDimensions: 194×70×82 mmWeight with battery: 650 g
