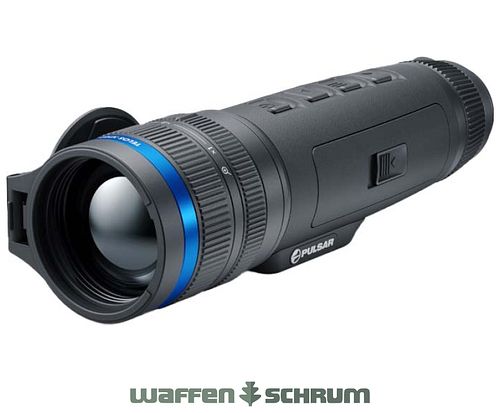

Pulsar Telos XP50

Thermal Imaging Camera Telos XP50
Pulsar's new high-end thermal imaging series made in Europe.

The Telos XP50 is part of Pulsar's latest thermal imaging series. Equipped with the latest thermal imaging technology and
innovative features, it continues the successful path of its predecessor models from the Helion series.

Due to its modularity, durability, and performance, the Telos XP50 is a must-have for any hunter or nature observer.
User-friendliness and the "Image Boost Technology" developed by Pulsar are just two of the highlights that have been perfected in this model.

The TELOS System
With the latest model series from Pulsar, the TELOS model, Pulsar has introduced the first thermal imaging device on the market that is modularly constructed and thus upgradable.
This makes it possible to equip any Telos with the latest hardware and always use the most current components.
The constant need to purchase a new thermal imaging device due to technological advancements is now a thing of the past.

Currently, it is possible to upgrade the following components:

- LRF for non-LRF models

- Sensor

- Lens

The Sensor

The heart of the LRF Telos XP50 is the latest version of the 640 x 480 pixel sensor developed by Pulsar with a 17µm pixel pitch and
a NETD <18mK, which, in conjunction with a 50mm lens, offers a very high level of detail. The display is ultra-sharp thanks to the "Image Boost Technology"
on the high-resolution 1024x768 pixel AMOLED display. The detection range is approximately 1800.

Innovative Lens Ring Zoom Control
Just like with classic cameras, the rings for focusing and zooming are positioned directly behind each other on the lens. This allows for quick and easy adjustment of the enlarged image without constantly switching hands from front to back.

The Telos Battery System

Specifically for the new Telos model series, Pulsar has developed a completely new battery system.
The unique LPS-7i battery not only guarantees an operating time of 8 hours,
but it can also be charged without special chargers via its own USB-C connection and a Power Delivery fast charging protocol.
And the kicker - the LPS-7i is the first battery that supports wireless charging.

The Housing
Pulsar is also taking new paths with the housing of the Telos. The rubber-coated polymer housing is impact-resistant and practically waterproof -
perfectly suited for the harshest applications. Additionally, protruding parts have been eliminated, and the ergonomic shape provides safety and comfort even during longer observations.

Network Compatibility

The integrated storage for your videos and images has a capacity of 64 GB. With the built-in WiFi module (2.4GHz / 5GHz), you can connect
to the Pulsar Stream Vision 2 app on your mobile device and transfer the recorded footage.
Of course, the Telos XP50 also features a USB-C connection.

Scope of Delivery
Pulsar Telos XP50 thermal imaging handheld device, 1x LPS 7i battery including 1 spare battery compartment cover, power adapter including Pulsar power/data cable, case,
carrying strap, hand strap, quick start guide, user manual in German

Technical Data

Sensor: Lynred

Sensor Resolution: 640 x 480 pixels

Sensor Pitch: 17 µm

Sensor Sensitivity: 18 mK (NETD)

Display Type: AMOLED HD

Display Resolution: 1024 x 768 pixels

Frame Rate: 50 Hz

Lens: 50 mm

Aperture: F1.0

Field of View: 12.4 x 9.3 (HxV)

Field of View at 100 m: 21.6 x 16.3 m (HxV)

Magnification: 2.5 - 10 (4x)

Detection Range: 1800 m

Internal Storage: 64 GB

Wi-Fi: yes

App Support: yes (Stream Vision 2)

Photo/Video/Audio Recording: yes / yes / no

Operating Temperature: -25- +40 °C

Protection Class: IPX7

USB Interface: Type-C

Power Supply: 5V, 9V (USB Type-C power supply)

Battery: LPS 7i Li-Ion Battery Pack 6400mAh

Battery Life: 8.5 h

Dimensions: 238 x 72 x 90 mm

Weight: 720 g
