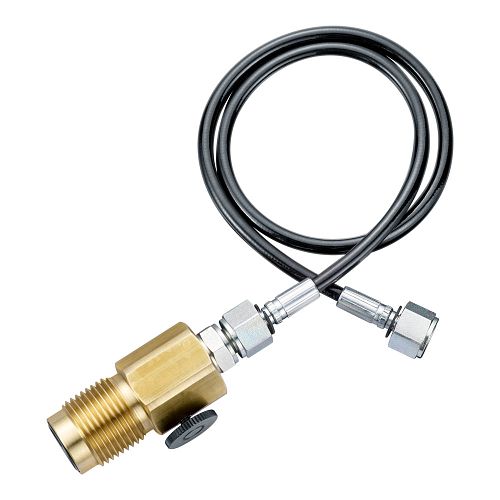

Quickfill hose 200bar from 5/8 to 1/8 for compressor I bottle I pump

A quick fill hose with connection to DIN 200 fittings such as the Gehmann pump or Hill MK hand pumps. The hose end is designed for quick fill connections with a male 1/8" BSP thread, which can be easily screwed on. An additional pressure relief valve screw allows excess pressure to be released, protecting the hose and O-ring connection.Technical DetailsLength: 45 cmThick connection (male): 5/8Thin connection (female): 1/8ProcedureConnect the supplied filling nozzle (included with the weapon) to the filling hose.Connect the filling hose to the bottle or hand pump.Slowly open the bottle valve of the refill bottle and close it again at the latest after reaching the maximum allowed pressure. For hand pumps, monitor the filling pressure on the manometer.After filling, loosen the vent screw to remove the filling nozzle more easily.The filling nozzle can be screwed onto compressors, diving bottles, and pumps with a DIN 200 connection (max. 200 bar).When to refill (general rule of thumb, may vary for certain types of weapons)7.5 / 16 Joules: 70 bar24 Joules: 120 bar30 Joules: 120 bar
