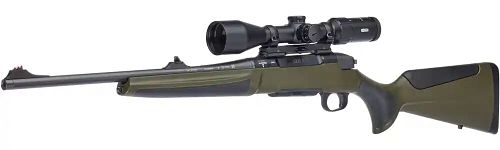

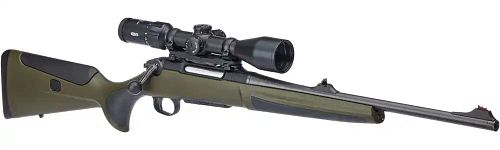

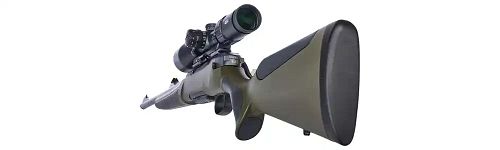

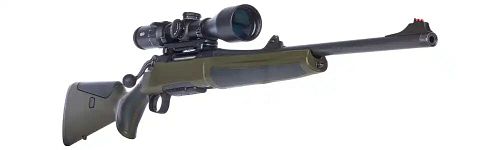

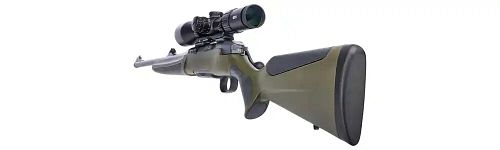

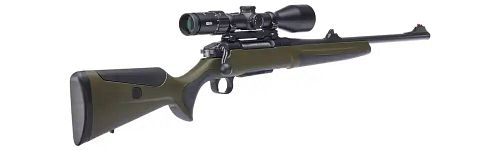

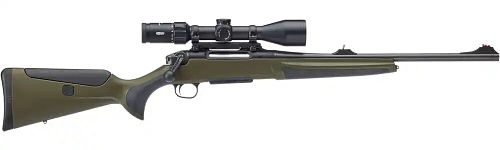

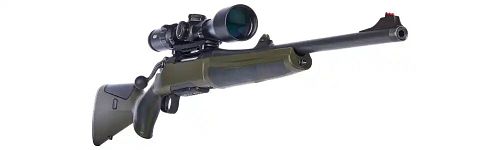

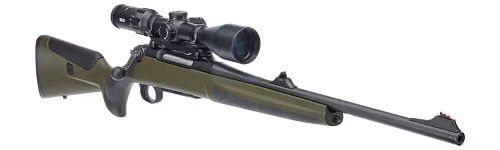

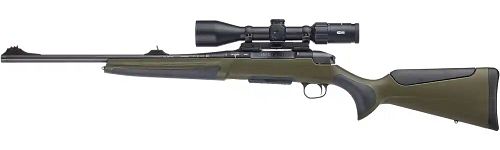

Haenel repeating rifle Jaeger NXT Composite – complete set unassembled

Repetier rifle Haenel Jaeger NXT Composite

Availability and current prices at: Click

Product description:

Product video Jaeger NXT: https://www.youtube.com/watch?v=7fUkdCfGqUY&list=UUbwDrszOu76KOpnSEGWArCA
PRODUCT DESCRIPTION

complete set
weapon ergonomically, grippy and tool-free adjustable
high-quality Meopta scope
stable and precise Dentler mount

Complete package consisting of Haenel Jaeger NXT, Meopta MeoSport R 3-15x50 and Dentler BASIS mount.

The Repetier rifle Haenel Jaeger NXT appears as a straight-pull repeater with a hand cocking mechanism for tough hunting use. Thanks to the composite construction, the weapon has a special handling and ergonomics. Additionally, the Jaeger NXT is equipped with soft-touch inserts that are extra grippy and withstand any weather conditions. The new fore-end geometry also ensures that the weapon is easy to grip and aim. Equipped with a milled Picatinny rail, an optic can be easily and repeatably mounted. Furthermore, the i-Sight sighting system offers two options for hunting use: with or without sights. Without sights, the muzzle can be used with an M15x1 thread for the use of a suppressor or a muzzle brake.

This version also includes a straight-pull torsion lock, which impresses with its brilliant ergonomics. The kickdown chamber handle moves the cylinder linearly while simultaneously rotating and locking the bolt in the barrel.

Safety is ensured by a chamber lock, which can be selected via a slider between three positions:

safe unloading position, where the system is relaxed (left)
red firing position (in the middle)
safety position, which blocks the chamber handle (right)

The stock, with its steep pistol grip, is optimally matched to the kickdown chamber handle of the Jaeger NXT. In the torsion lock developed for this weapon, this control element plays a central role, as it serves as both the hand cocking mechanism and the chamber handle for cycling.

The MeoSport R is a feature-rich entry-level scope with 5x zoom, a 30 mm tube, an adjustment range of 90 MOA, and a parallax adjustment from 10 meters to infinity. The special water-repellent coating repels water, dust, and grease from the surface of the optical elements, ensuring a clear, brilliant image.

100% compatible with each other and constructed with zero tolerance, the two-part BASIS® system connects every weapon model absolutely reliably with the respective target optics. Once set, the mounting rail always locks with the same torque and free of play with the base rail.
Technical data:

barrel diameter 18 mm
barrel length: 520 mm (standard caliber) / 610 mm (magnum)
total length standard caliber: 1045 mm
weight 3.2 kg
trigger direct trigger with 1000 g trigger weight
insert magazine with 5 cartridges
plastic stock in composite construction, with continuously adjustable zoom comb
cold-forged Suhler precision barrel
Picatinny rail
sling swivel mounts
hand cocking mechanism with three-position chamber lock
iSight sighting system
thread M15x1 for suppressor or muzzle brake
MeoSport R 3-15x50 scope with 5x zoom
reticle 4C in the 2nd image plane
adjustment turret with zero reset and locking
length 338.0 mm
weight 635 g

datasheet:


data
values


trigger
direct trigger


hand cocking
yes


detachable magazine
yes


open sights
yes


muzzle thread
M15x1


barrel contour
standard


mount preparation
Picatinny


system material
Dural


stock shape
adjustable comb


barrel length standard caliber in cm
52


barrel length magnum caliber in cm
61


total length minimum
104.5


total length maximum
113.5

Miscellaneous: more information at https://hs-arms.de/Haenel-Repetierbuechse-Jaeger-NXT-Composite-Komplettset-unmontiert-308-Win
