HIKMICRO Clip-On Thunder TQ35C 3.0 incl. SmartClip adapter

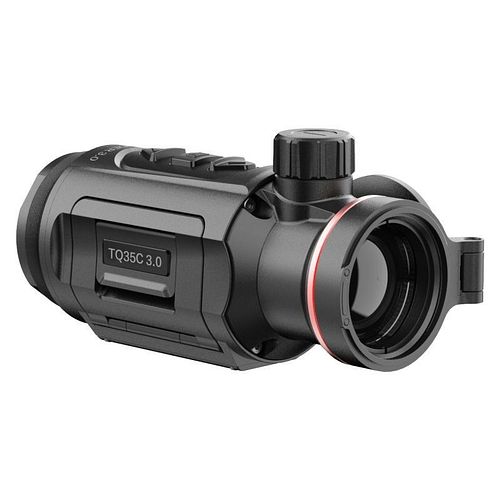

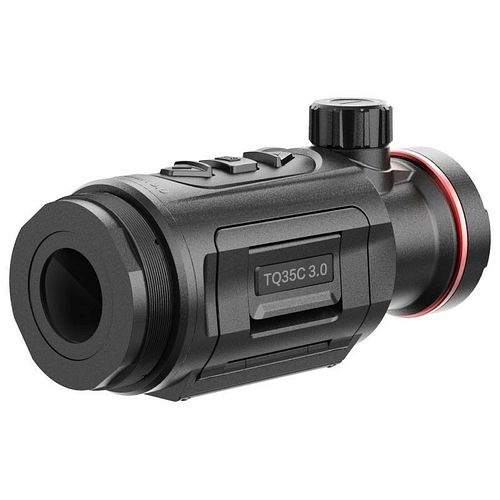

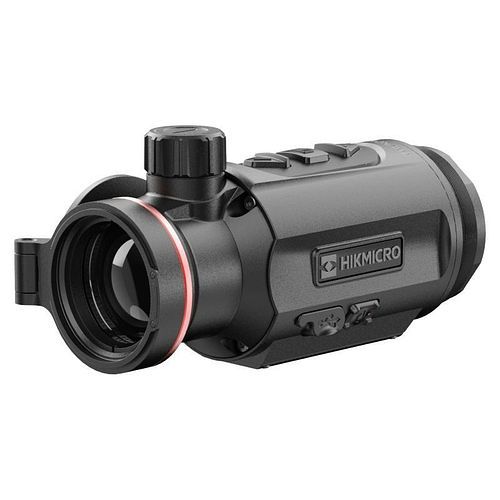

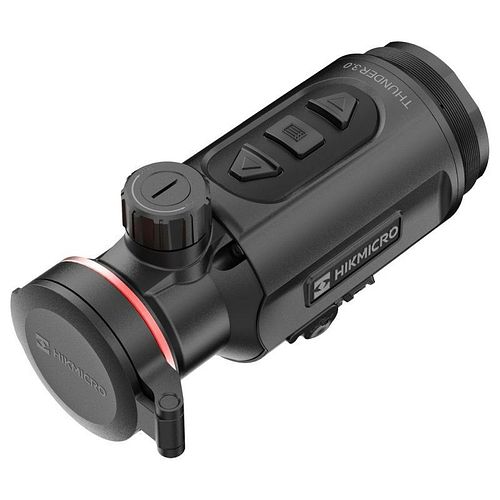

HIKMICRO Thunder TQ35C 3.0 – Precision in Every Environment
+++ incl. SmartClip adapter in desired size +++

The HIKMICRO Thunder TQ35C 3.0 Thermal Clip-On offers you the highest precision and image quality, regardless of external conditions. With a high-resolution 640 × 512 thermal image detector and exceptional thermal sensitivity (NETD < 15 mK), this device captures even the smallest details. The large 1920 × 1080 OLED display provides a brilliant visual experience and makes it easier to detect objects in various scenarios.
Main Features:

Thermal Detector: 640 × 512 resolution at 12 μm for outstanding image quality
Sensitivity: NETD < 15 mK (@25°C, F# = 1.0) for maximum detail fidelity
Lens: 35 mm, F1.0 lens with a detection range of up to 1800 m
Display: 1920 × 1080 resolution, 0.49 inch OLED for razor-sharp images
Technology: HIKMICRO Shutterless Image System (HSIS) for seamless image representation
Battery Life: Rechargeable and replaceable Li-Ion battery with up to 6 hours of operating time
Shock Resistance: High shock resistance up to 1000 g/0.4 ms

Thermal Module:

Image Sensor: Uncooled focal plane arrays
Maximum Resolution: 640 × 512
Frame Rate: 50 Hz
Pixel Pitch: 12 μm
Response Wavelength: 8 μm to 14 μm
Focus Mode: Focus button
Minimum Focus Distance: 10 m
Magnification: 1×
Field of View: 12.5° × 8.0° / 21.9 m × 14.0 m @ 100 m
Recommended Magnification: 1-15x

Image Display:

Display: 1920 × 1080, 0.49 inch OLED
Palettes: Black Hot, White Hot, Red Hot, Fusion, Red Monochrome, Green Monochrome
Pupil Exit: 25 mm
Eye Relief: 20 mm
Brightness Adjustment: Yes
Contrast Adjustment: Cold, Warm
HSIS: HIKMICRO Shutterless Image System
Image Pro 2.0: Yes

System Functions:

Video Recording: Integrated video recording
Snapshot: Yes
Virtual Reticle: Yes
Standby Mode: Yes
Storage: Integrated EMMC (64GB)
Hotspot: Yes
Hot Track: Yes
Audio Recorder: Yes
Recoil-Activated Video Recording: Yes
Maximum Recoil: 1000 g/0.4 ms
Local Album: Yes
Image Calibration: Yes
Zeroing Profiles: 5

Power Supply:

Battery Type: Replaceable and rechargeable Li-Ion battery
Operating Time: ≥6 hours at 25°C (Hotspot off)
Type-C Power Supply: 5 VDC, 2 A
Supports External Power Supply: Yes

General Information:

Protection Class: IP67
Dimensions: 143.4 mm × 67.5 mm × 72.9 mm
Weight: 460 g with battery
Operating Temperature: -30°C to + 55°C (-22°F to 131°F)
Housing Material: Magnesium Alloy

Available Models:

TQ35C 3.0

Scope of Delivery:

1x Thunder TQ35C 3.0
1x Rechargeable Li-Ion battery (included in the device)
1x USB-C cable
2x O-rings
1x User manual

Note: Please observe the legal regulations when mounting attachments or add-on devices on weapons!
