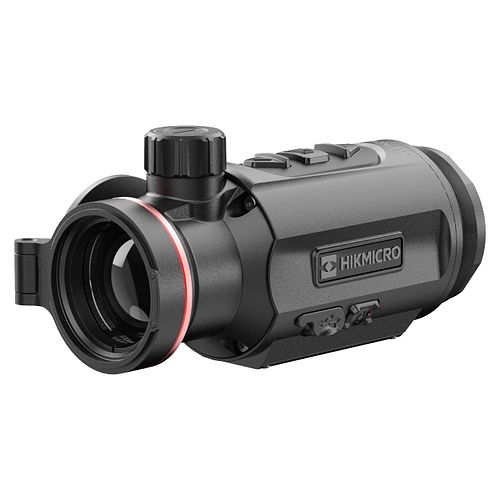

HIKMicro Thunder 3.0 TQ35C thermal imaging camera

HIKMICRO Thunder TQ35C 3.0 High-Precision Thermal Imaging Device Experience the powerful HIKMICRO Thunder TQ35C 3.0, a thermal imaging device that delivers precise results in all environments. Thanks to a high-resolution 640 × 512 thermal imaging detector and exceptional thermal sensitivity (NETD < 15 mK), even the smallest details are reliably captured. The 1920 × 1080 OLED display provides clear, high-contrast images that facilitate the observation of objects in a variety of scenarios.
Main Features Thermal Detector: 640 × 512 pixels at 12 µm for accurate thermal images Sensitivity: NETD < 15 mK (@25°C, F# = 1.0) for precise detail reproduction Lens: 35 mm, F1.0 lens, detection range up to 1800 m Display: 1920 × 1080, 0.49 inch OLED for sharp images Image Technology: HIKMICRO Shutterless Image System (HSIS) for seamless presentation Battery Life: Rechargeable, replaceable Li-Ion battery, up to 6 hours
Thermal module Precision at the highest level Image sensor: Uncooled focal plane arrays (FPA) Maximum resolution: 640 × 512 Frame rate: 50 Hz Pixel pitch: 12 µm Response wavelength: 814 µm Focus mode: Focus knob Minimum focus distance: 10 m Field of view: 12.5° × 8.0° / 21.9 m × 14.0 m @ 100 m
Image Display Clear View in Every Application Display: 1920 × 1080, 0.49 inch OLED Color Palettes: Black Hot, White Hot, Red Hot, Fusion, Red Monochrome, Green Monochrome Pupil Exit: 25 mm Eye Relief: 20 mm Brightness & Contrast Adjustment: Yes (Cold, Warm) HSIS: HIKMICRO Shutterless Image System Image Pro 3.0: Enhanced Image Processing
System Functions Versatile and Practical Video Recording: Integrated Function Standby Mode: Yes Storage: Integrated EMMC, 64 GB Hotspot & Hot Track: Yes Audio Recorder: Yes Recoil-Activated Video Recording: Yes, up to 1000 g/0.4 ms Local Album & Image Calibration: Yes
Power Supply Powerful and Flexible Battery Type: Rechargeable, replaceable Li-Ion battery Operating Time: =6 hours at 25°C (Hotspot off) Type-C Power Supply: 5 VDC, 2 A External Power Supply: Supported
General Information Robust and Reliable Protection Class: IP67 Dimensions: 143.4 × 67.5 × 72.9 mm Weight: 460 g including battery Operating Temperature: -30°C to +55°C (-22°F to 131°F) Housing Material: Magnesium Alloy Conclusion: The HIKMICRO Thunder TQ35C 3.0 is a versatile thermal imaging device that impresses with high resolution, precise thermal sensitivity, and robust construction. Ideal for professional observations, security applications, and outdoor operations where accuracy and detail fidelity are crucial.
