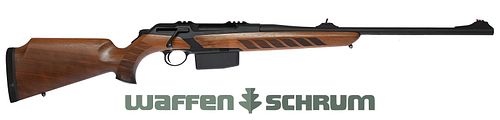

Merkel RX Helix Lady DS Semi-Weight Running Contour

RX Helix Lady DS
The linear repeater Merkel RX Helix Lady DS impresses with short cycling distances, intuitive handling, and a stock that is excellently adapted to the ergonomics of women. With its compact design and a barrel length of 51 cm, it swings optimally and looks good even in tight hunting hides. A rifle specifically designed for female hunters.

Merkel RX HELIX Lady-DS Stock
The stock of the RX Helix Lady DS has been completely rethought. From the perspective of women. A highly dampening recoil pad at the end of the shortened stock absorbs the recoil. The steep pistol grip allows for a relaxed position of the shooting hand and controlled trigger operation. The stock back has been kept straight and equipped with a Monte Carlo cheek piece. Intuitively, the straight-pull repeater glides into the shooting position. Finally, the female hunter is well equipped for hunting with all eventualities.

Straight-Pull Repeating System with Manual Cocking
The HELIX system: Straight-pull repeating system with a 1:2 gear ratio results in an extremely short cycling distance. The straight pull stands for the fastest cycling in the shooting position. It allows for lightning-fast shot sequences while maintaining a relaxed body posture without lowering the weapon. The shooter's eye and the barrel of the weapon remain focused on the target. The time gained in target acquisition leads to a more secure shot release. The manual cocking safety system is considered one of the best safety systems. No other mechanical safety can offer the security of a relaxed firing pin spring. The Merkel RX Helix is consciously cocked just before the shot: the cocking slider is pushed forward. If no shot is fired, a light pressure on the cocking slider is sufficient to let it slide back and relax the system.

System & Assembly
The closed system housing prevents contamination from the outside and inside. The 6-lug rotary head lock directly locks in the barrel and stands for maximum precision. The modular system allows for easy caliber changes. Only the barrel and chamber head need to be exchanged. The weapon can be disassembled almost tool-free and in seconds, making it easy to transport. The top of the bolt sleeve is designed as a Weaver rail. All commercially available Weaver mounts can be used for mounting a riflescope.

Merkel I-Sight Sighting System and Barrel Thread M 15x1
The RX HELIX Lady DS comes standard with the I-Sight system, meaning the sight is not only easily removable but also can be repositioned backward on the barrel, allowing any suppressor, whether on- or over-barrel, to be mounted on the existing muzzle thread M 15x1.

Caliber:
Mini: .222 Rem., .223 Rem.
Standard: .243 Win., .270 Win., 7x64, .308 Win., .30-06 Spring., 8x57IS, 9.3x62,
Magnum: .300 Win. Mag., .338 Win. Mag., 7mm Rem. Mag.

Included in delivery: Transport case, cleaning cord Boresnake, detachable sling swivels, warranty papers

Technical Data:

Type of weapon: Repeating rifle
Direct trigger: adjustable from approx. 900 g to 1,900 g trigger weight
Optional: TAR-GT trigger infinitely adjustable from approx. 500 to 1,500 grams / gold-plated trigger
System: Manual cocking with straight pull lock
Barrel length: 51 cm other barrel lengths optional
Barrel contour: 17 mm at the muzzle, optional semi-weight barrel
Barrel profile: smooth
Muzzle thread: M15x1
Sighting: I-Sight sight removable
Magazine capacity: 5+1 magazine, removable
Stock material: Wood from class 2
Stock shape: with cheek piece
System box: Steel
Minimum overall length: 101 cm
Weight: approx. 3.0 kg
Barrel surface: matte blued
