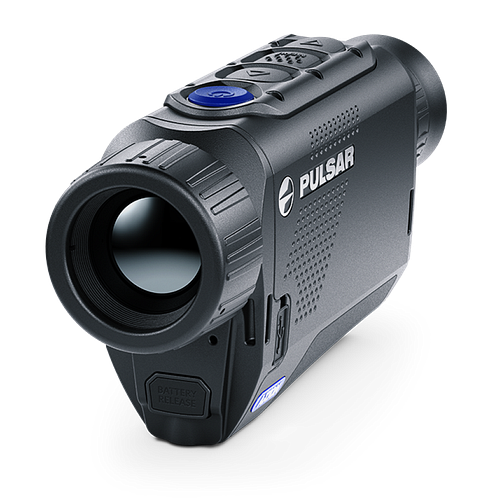

Pulsar Axion XQ30 Pro

Pulsar Axion XQ30 Pro
Thermal Imaging Camera for Hunting
The Pulsar Axion XQ30 Pro thermal imaging camera is the ultimate device for anyone looking for high-quality equipment for hunting or outdoor activities. With its compact size and powerful features, it is ideal for those who value quality and precision. Equipped with state-of-the-art technology, the Axion XQ30 Pro delivers crystal-clear images in real-time and allows you to track targets even in low light conditions. Thanks to its robust construction and user-friendly operation, it is easy to handle and provides you with the perfect support on your adventures in nature. Whether you are hunting, observing wildlife, or simply enjoying nature, the Pulsar Axion XQ30 Pro is a reliable companion you can count on. Invest in quality and precision with this top-notch thermal imaging camera from Pulsar.

Features:
Highly sensitive thermal imaging sensor
384x288 pixels and a thermal sensitivity of less than 25 mK Wide field of view for easy scanning
field of view of 13.3° Compact pocket-sized design
Robust magnesium alloy housingPhoto and video recording Adjustable sensitivity enhancementA selection of 8 color palettes
Hot white, hot black, and hot red are optimal for object detection, while rainbow and ultramarine increase the chances of detection and identification. Red monochrome, sepia, and violet are best suited for prolonged nighttime observation. Stream Vision 2 app for iOS and Android
The integrated Wi-Fi module connects the device to Android or iOS smartphones via the Stream Vision 2 mobile application.

Technical Data:
Main

Sensor 384x288 pix. @ 17 m (NETD <25 mK)

Objective Lens F30/1.2

Magnification, x 2 - 8 (x4 zoom)

Magnification in Monocular Mode / Mounting Mode, x -

Field of View (HxV), degrees / m @ 100m 13.3x10 / 23.317.5

Detection Range, m 850

Sensor

Type uncooled

Resolution, Pixels 384x288

Pixel Pitch, m 17

NETD, mK <25

Frame Rate, Hz 50

Optics

Objective Lens F30/1.2

Magnification, x 2 - 8

Magnification in Monocular Mode / Mounting Mode, x -

Field of View (HxV), degrees / m @ 100 m 13.3

Eye Relief, mm -

Recommended Magnification of Day Scope, x -

Display

Type AMOLED

Resolution, Pixels 640x400

Observation Distance

Observation Distance, m 850

Video Recorder

Video / Photo Resolution, Pixels 528400

Video / Photo Format .mp4 / .jpg

Built-in Memory, GB 16

Wi-Fi

Wireless Protocol Wi-Fi

Standard IEEE 802.11 b/g/n/ac (WPA)

Frequency, GHz 2.4 / 5

Environmental Features

Protection Class, IP Code (IEC60529) IP7 (waterproof)

Operating Temperature Range, -25 +40

Connections and Compatibility

Compatible Mounting Brackets tripods

Mounting, thread 1/4"

Remote Control -

Supported Application Stream Vision 2

Power Supply

Output Voltage, V 4.2-3.0

Battery Type Dual Li-Ion power system: APS 3 changeable battery (3.2 Ah)

Battery Type, mAh 3200

Operating Time on Battery (at t = 22 C), h * 8h

External Power Supply, V 5V (USB)

Weight & Size

Housing Material Magnesium alloy

Dimensions, mm 144x41x69

Weight, kg 0.3 (with battery)
