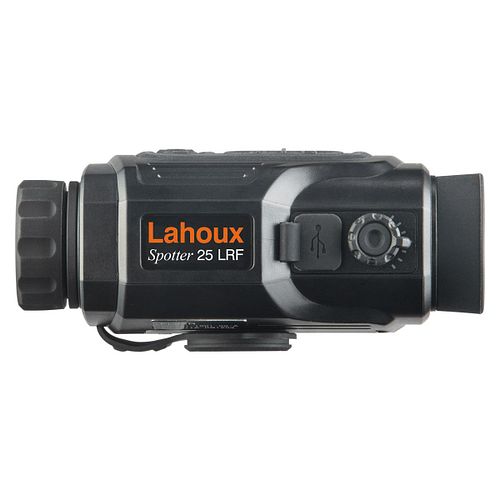

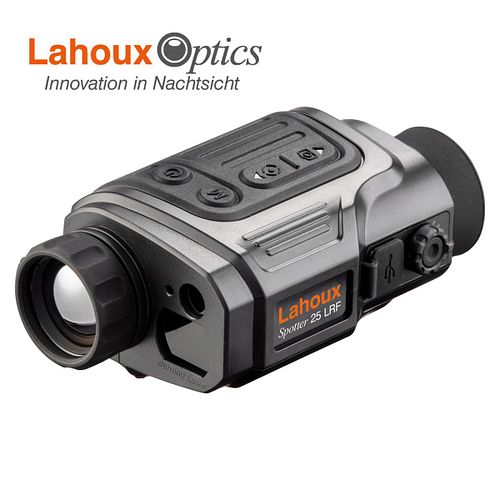

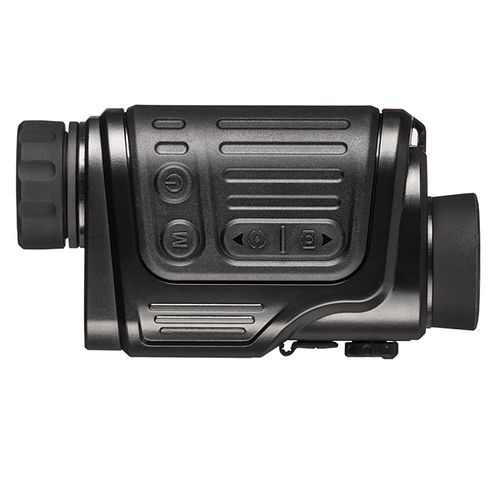

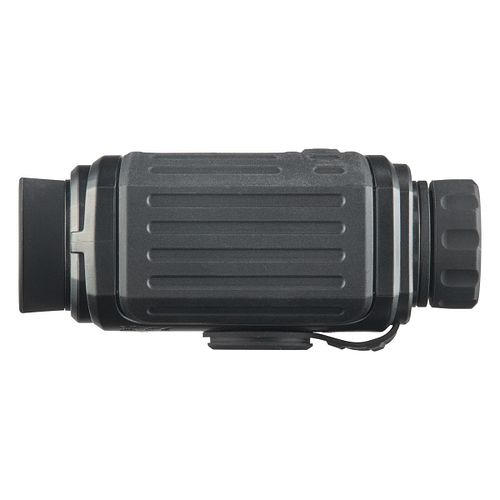

Lahoux Spotter 25 LRF thermal imaging camera

Lahoux Spotter 25 LRF thermal imaging camera
Small, compact thermal imaging cameras with integrated laser rangefinder (range up to 600m). Designed for easy and quick use. Multi-color display for improved image reproduction.

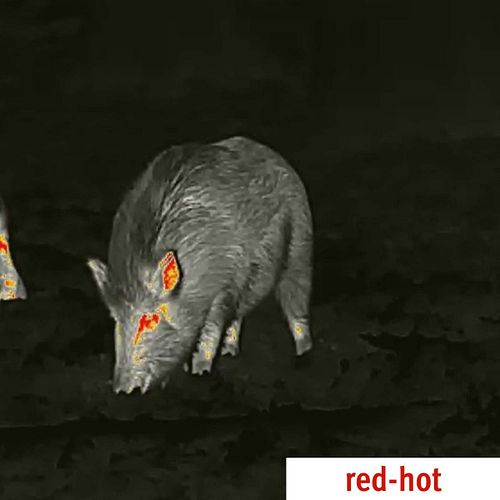

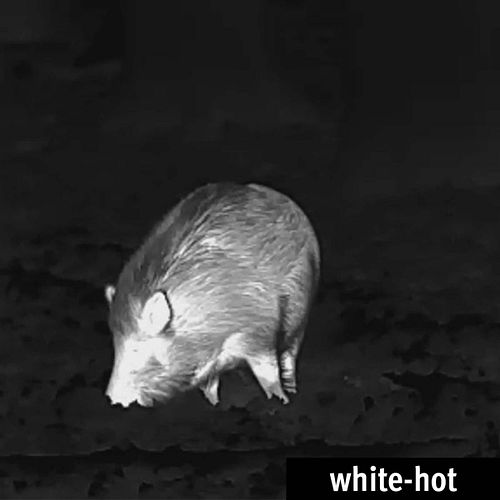

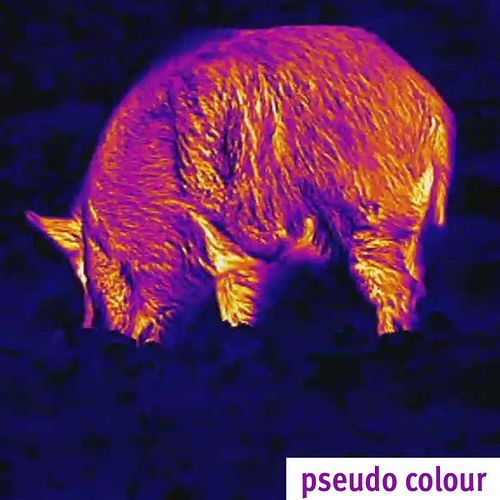

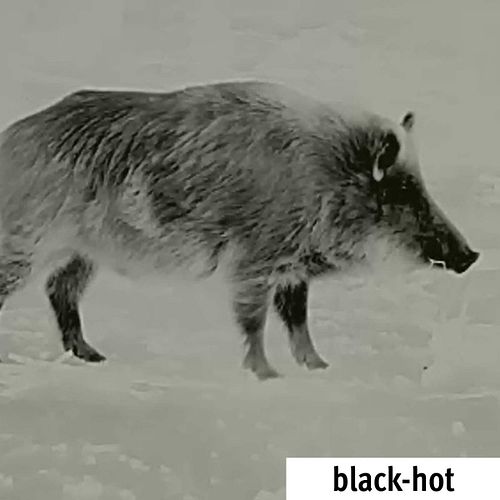

Image reproduction: white-hot, black-hot, red-hot, bird, iron bow, rainbow

Detector

Resolution VOx uncooled: 384 × 288
Pixel size: 12 µm
Sensitivity (NETD): < 40 mK
Frame rate: 50 Hz

Optics

Objective: 25 mm
Field of view: 10.5° × 7.9°
Digital magnification: 1×, 1.5×, 2×, 2.5×, 3×, 3.5×, 4×
Diopter adjustment: -4 to +5 D

Electronics

Internal memory: 16 GB
Display LCOS: 1280 × 960

Operating parameters

Laser rangefinder range: 600 m
Power supply: lithium-ion battery
Battery life: 6 hours
Waterproof: IP67
Dimensions: 70×52×130 mm
Weight: 0.32 kg
