Schmidt & Bender Zenith 3-12x50 LM FD7

Schmidt & Bender Zenith 3-12x50 LM FD7 riflescope

The 3-12x50 Zenith is the ideal riflescope for sitting and shooting at medium distances. It is optionally available with the patented FlashDot F7 reticle (FD 7) in the first focal plane and is perfect for the ambitious and modern hunter. In addition, it has proven itself in practice with both objective- and ocular-mounted night vision and thermal imaging devices.

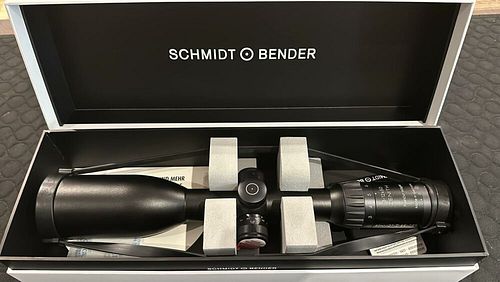

The riflescope is completely new and original packaged. You are welcome to inspect the scope in our specialty store. Do you have any further questions? Simply contact us via phone or email.
Your team at Natur & Passion - Peter Stuckmann
Miscellaneous: Technical Data

Magnification: 3-12
Objective Diameter (mm): 50
Color: Black
Reticle: FD7
Focal Plane: 1
Throw Lever compatible: No
Eyepiece Thread: /
Objective Thread: M54x0.75
Main Tube Diameter (mm): 30
Mounting System: Ring Mount
Illumination: 11 Levels
Parallax Adjustment (m): 100 fixed
Exit Pupil Diameter at Low Magnification (mm): 14.1
Exit Pupil Diameter at High Magnification (mm): 4.2
Twilight Number at Low Magnification: 12.2
Twilight Number at High Magnification: 24.5
Field of View (m/100m) at Low Magnification: 11.9
Field of View (m/100m) at High Magnification: 3.1
Field of View (°) at Low Magnification: 6.8
Field of View (°) at High Magnification: 1.8
Battery Designation: CR2032
Elevation Adjustment: Posicon CT
Windage Adjustment: Posicon CT
Adjustment Value (Click): 1 cm/100 m
Adjustment Range (Elevation): 130 cm/100 m
Adjustment Range (Windage): ±65 cm/100 m
Internal Elevation Adjustment: 130 cm/100 m
Internal Windage Adjustment: 130 cm/100 m
Rotation Direction: cw
Length (mm): 342
Weight (g): 700
Eye Relief (mm): 90
Light Transmission (%): 90
Diopter Adjustment: -3 to +2
Waterproof (m): 3
Operating Temperature: -25 to +61°C
Storage Temperature: -55 to +71°C

Product Safety Information: This product was made available on the marketplace before 13.12.2024. For manufacturer and safety information, please contact the offering dealer.
