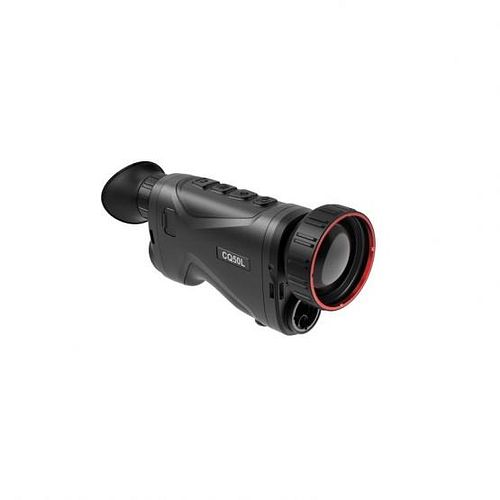

Hikmicro Monocular Condor CQ50L Thermal Imaging Monocular

Hikmicro Monocular Condor CQ50L

The HIKMICRO CONDOR CQ50L thermal imaging monocular is equipped with a 640 × 512 @ 12 µm infrared detector and a 1024 × 768 OLED display. With less than 20 mK NETD, which represents high thermal sensitivity, it ensures perfect image quality and detail recognition even in the harshest weather conditions.

Thermal Module

Image Sensor: VOx Uncooled Focal Plane Arrays
Resolution: 640 x 512
Frame Rate: 50Hz
Pixel Pitch: 12µm
NETD: less than 20 mK (@25°C), F#=1.0
Focal Length: 50 mm
Detection Range: 2,600 m
Field of View: 8.7° × 7.0° / 15.2 m x 12.2 m at 100 m
Aperture: F1.0
Magnification: 3.0x to 24.0x (8x)
Minimum Focus Distance: 5 m
Focus Mode: Focus Ring


Monitor: 0.39 inch, OLED, 1024 × 768
Diopter: -5 to +3
Palettes: Black Hot, White Hot, Red Hot, Fusion
FFC (Flat Field Correction): Automatic, manual, external correction
Image Pro: Yes
Zoom Pro: Yes

Smart Function

Hot Track: Yes
Hotspot: Yes
Picture in Picture: Yes
Standby Mode: Yes
Brightness Adjustment: Yes
Contrast Adjustment: Yes
Rangefinder: Yes

System Function

Storage: Built-in storage module
Video Recording: integrated video recording
Audio Recording: Yes
Snapshot: integrated image capture
Supported App: Hikmicro Sight

Battery

Battery Type: removable Li-Ion battery
Operating Time: 4 h with Wi-Fi off
Battery Capacity Display: Yes
Power Supply: Type C

General

Operating Temperature/Humidity: From -30 °C to 55 °C; Humidity 90% or less
Protection Class: IP67
Dimensions: 197.1 mm × 60 mm × 94.9 mm
Weight: 450 g
Eye Relief: 15 mm

Laser Rangefinder

Maximum Measurement Range: 1000 m
Laser Safety Class: 1
Wavelength: 905 nm
Measurement Accuracy +/- 1 m
Min. Measurement Distance: 10 m

Scope of Delivery

Condor CQ50L (HM-TS63-50QG/WL-CQ50L)
Manual
Cleaning Cloth
USB Cable
Battery 2x
Charger
Protective Case
