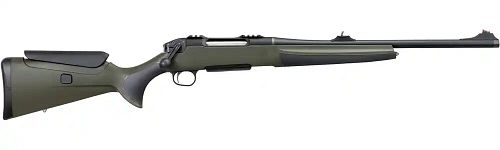

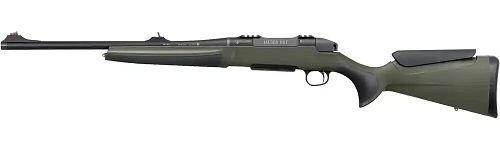

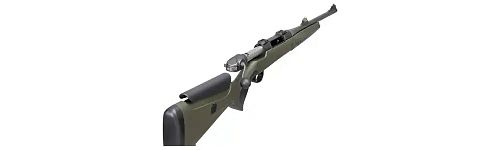

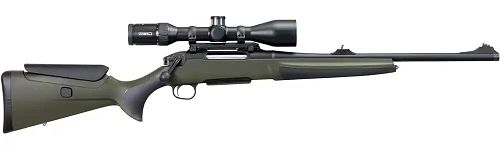

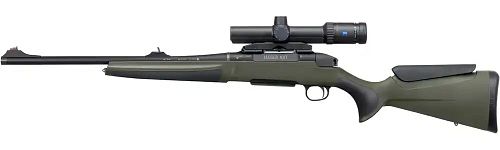

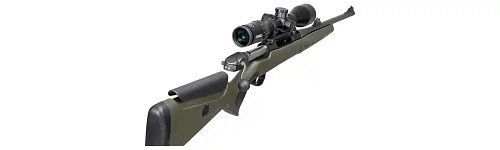

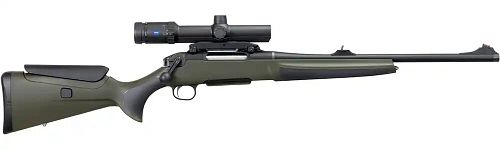

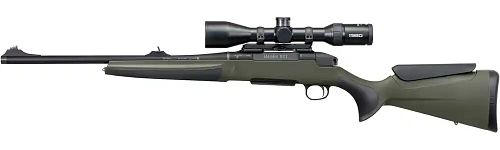

Repeater rifle Haenel Jaeger NXT Composite

Availability and current prices at: Click

Product description:
Product video Jaeger NXT: https://www.youtube.com/watch?v=7fUkdCfGqUY&list=UUbwDrszOu76KOpnSEGWArCA
PRODUCT DESCRIPTION
The repeater rifle Haenel Jaeger NXT appears as a straight pull repeater with a manual cocking mechanism for tough hunting use.
Thanks to its composite construction, the weapon offers exceptional handling and ergonomics. The zoom buttstock can be quickly and easily adjusted in height using a button, which is positioned so that even in the shooting position, a precise adjustment of the sight line is possible. Additionally, interchangeable buttstock caps are used to balance the stock length and allow for tool-free adjustment to the individual needs of the shooter.
Furthermore, the Jaeger NXT is equipped with soft-touch inserts that provide extra grip and withstand all weather conditions. The new fore-end geometry also ensures that the weapon is easy to grip and mount.
Equipped with a milled Picatinny rail, an optic can be easily and repeatably mounted. Moreover, the i-Sight sighting system offers two options for hunting use: with or without sights. Without sights, the muzzle can be used with an M15x1 thread for the use of a suppressor or muzzle brake.
This version also includes a straight pull torsion lock that impresses with its brilliant ergonomics. The kickdown chamber handle moves the cylinder linearly while simultaneously rotating and locking the bolt in the barrel. In the final step, the chamber handle tensions the system in the front third of the pivot area, thus establishing readiness to fire.
Safety is ensured by a chamber lock, which can be selected via a slider between three positions:

safe unloading position, where the system is relaxed (left)
red firing position (in the middle)
safety position, which blocks the chamber handle (right)

Composite approaches the custom stock
The "custom stock" is handled by the shooter themselves, occurring in several steps. The stock length is optimized before the hunt. Depending on arm length or clothing thickness, optional stock caps can be used without tools, allowing the stock to be shortened by 70 millimeters or extended by 50 millimeters.
The second step is adjusting the dynamic buttstock to the sight line. This is done during the hunt at the push of a button, tailored to the riflescope, the driven hunt scope, or for tracking using the rear sight and front sight. The adjustment is simple and quick with a finger press on a button. This solution allows for height adjustment even while looking through the target axis. The button on the right side releases the locking mechanism, and the stock is extended with spring assistance.
Fore-end for good grip
A grip groove for the fingers, combined with injected soft-touch inserts for the palms and a conical fore-end design, provides an individual and secure grip. No matter where the shooter intuitively grips, the fore-end offers optimal support for all hand sizes. In the lower area, the stock material has been additionally reinforced to allow for a system-open extension, e.g., for a bipod adapter or Picatinny rails. Different mounts can be securely screwed in here.
Pistol grip optimized for kickdown chamber handle
The stock, with its steep pistol grip, is optimally tuned to the kickdown chamber handle of the Jaeger NXT. In the torsion lock developed for this weapon, this control element plays a central role, as it serves as both the manual cocking mechanism and the chamber handle for repeating.
Technical data

Barrel diameter: 18 mm
Barrel length: 520 mm
Overall length: 1045 mm
Weight: 3.2 kg
Trigger: Direct trigger with 1000 g trigger weight
Magazine: Detachable magazine with 5 cartridges
Stock: Plastic stock in composite construction, with continuously adjustable zoom buttstock
Picatinny rail
Sling swivel mounts
Manual cocking mechanism with three-position chamber lock
i-Sight sighting system
M15x1 thread for suppressor or muzzle brake
ergonomic, grippy, and tool-free adjustable
Zoom buttstock
Interchangeable buttstock caps
Soft-touch inserts

Data sheet


Type of weapon:
Long gun


Type of firearm:
Repeater rifle


Caliber:
.308 Win., .30-06 Spr. or 8x57 IS


Magazine capacity:
5 shots magazine


Barrel length:
520 mm / 20.5"


Overall length:
1045 mm


Sighting:
open sights


Trigger weight:
approx. 1000 g


Trigger type:
Direct trigger


System:
Black / Steel


Stock:
Plastic stock in composite construction, with continuously adjustable zoom buttstock


Muzzle thread:
yes (15x1)


Weight:
3.2 kg


Use / Approval:
hunting, firearms collector,
sport shooting


Importer article number:
2017700


Manufacturer article number:

The images may contain additional paid accessories!
