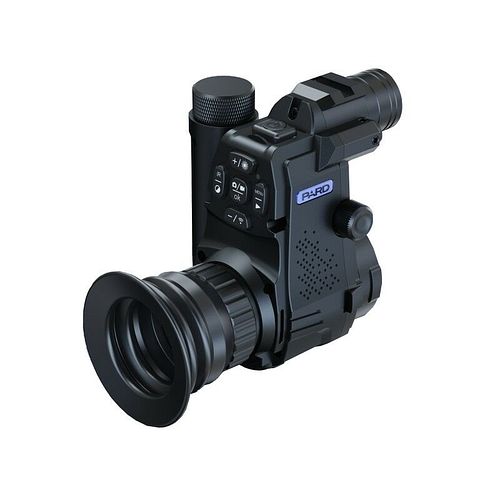

PARD Pard Night Vision Device NV007SP 940 nm - new model

The digital night vision device PARD 007SP is the further development of the PARD 007S. It is suitable for observation as a monocular and for mounting on optics. The device can also be used in absolute darkness due to its high light sensitivity and the built-in IR illuminator. The IR illuminator is focusable and available with a wavelength of 850 nm and 940 nm. The high-resolution sensor and the associated software provide a clear image. Since no zeroing is necessary, the NV007SP ensures very high precision.

Please pay attention to the legal provisions declared from the German Weapons Act when you mount attachment/- or supplement devices on weapons.

Please note the legal provisions arising from the German Weapons Act when mounting attachment or supplementary devices on weapons.

Resolution





2560 x 1440




Sensitivity (lux)





0.001




Frame rate (fps)





30




Objective lens (mm)





22.5




Optical magnification





4x




Digital zoom





1 - 3.5




Continuous digital zoom





4 - 14




Field of view (WxH)





22° - 12°




Eye relief (mm)





25




Focusing range





from 3 cm




Diopter compensation (+/-)





5




IR type





VCSEL




IR power (W)





5




IR illuminator levels





3




IR illuminator range (m)





350




Display





OLED, 1024 x 768 px




Color modes





Color, Black/White




Photo resolution (px)





2592 x 1944




Photo format





jpeg




Video resolution (px)





1920 x 1080




Video format





MP4




Storage





SD card max. 128GB




LRF range (m) if available





1097




Self-activating video recording





Yes




Timestamp





Yes




Audio recording





Yes




USB Type C





Yes




WLAN





Yes




Supported apps





PardVision




Battery type





18650 Li-Ion battery




Output voltage (V)





3.7




Max. operating time (h)





8




Safety class





IP67




Operating temperature (°C)





-25 to 40




Recoil energy (J)





6000




Dimensions (LxWxH, mm)





105 x 120 x 71




Weight (without battery, g)





290
