Gunshome uG weapon room door Class 1 EN1143-1 custom-made! Take a look!

Waffenraumtür CITY: Here: Model DRESDEN

Product:

Waffenraumtür
Clear text: no "standard", we build your safe door individually:
Custom-made
Burglary protection type-tested resistance grade I according to EN 1143-1
Test and certification institute TresorTest

Insurability:

private up to EUR 65,000.00
commercial up to EUR 20,000.00

Construction type:

Frame profile and door double-walled
Frame thickness right, left, top 100x100mm (optional 100x60mm for an additional charge), bottom profile 100x50mm (optional flat profile 100x10mm for an additional charge).
In case of effortful installations and suitable location, the possibility to enlarge the frame size to approximately match the width of the wall opening, price and model always depend on the passage size of the door system!
High-quality interlocking central locking mechanism, three-sided
Special hinges, internal, door opening >90°
Door opening towards the corridor side
Security elements for locking mechanism and locking system
Special steel bolts, hard nickel-plated and firmly welded to the locking rod.
Brand double-bit lock EN1300 class A, VdS class 1 with 2 keys
Metal handle approx. max 60mm protruding
Simple screwing through the frame profile into the wall
To ensure the door fits exactly into your property, the installation situation is individually adapted to your location (see also the point NOTES below)

Dimensions:

max. door passage size HxB in mm: 1970 x 500 (min. door passage width!)
plus surrounding frame 100mm on each side (also consider 1x the thickness of the door with 100mm)
Weight model Dresden approx. kg: 130 + pallet (Note: higher transport costs due to special shipping!)

Execution:

Standard door stop DIN right
Painting optionally RAL 7035 light gray or RAL 7021 black gray, at no extra charge

Options:

Door stop left for an additional charge
Door opening into the room for an additional charge
Mounting tabs for an additional charge

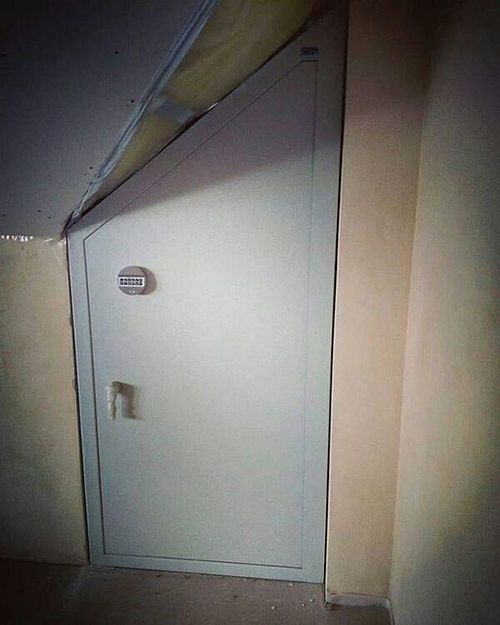

Knee wall execution for an additional charge (inquiry)
mechanical combination lock for an additional charge (only opening from the outside!)
Electronic lock from the outside, for an additional charge
- optionally with emergency opening using double-bit lock from the outside, for an additional charge
- optionally with second keypad on the room side for opening from the inside, including handle from the inside, for an additional charge
and much more, we can come up with a suitable solution for almost every extraordinary spatial situation, let yourself be surprised.

Notes:

The door must fit exactly, there is no "standard". Therefore, we manufacture the door to fit your premises!
No alteration of the existing wall opening required, thus no static problems!
The models Dresden, Leipzig, Frankfurt, Essen, Köln, München, Hamburg, and Berlin are fundamentally the same door. The difference between the models is the door passage size: differentiation of models/prices every 100mm.
The prices for the models depend on the required door passage size in width
If you subtract 100mm from the frame inner dimension, you get the door passage size
The frame is standardly manufactured with a 50mm high door threshold profile, for installation in the screed. Flatter door profile available for an additional charge, for installation on the screed, up to door passage width 1000mm.
Always calculate at least 15mm clearance between the door and the finished floor including covering, so that the door can still pass over a small stone!

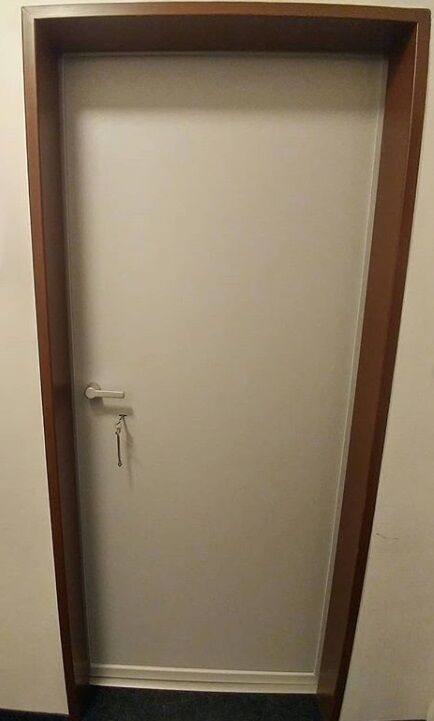

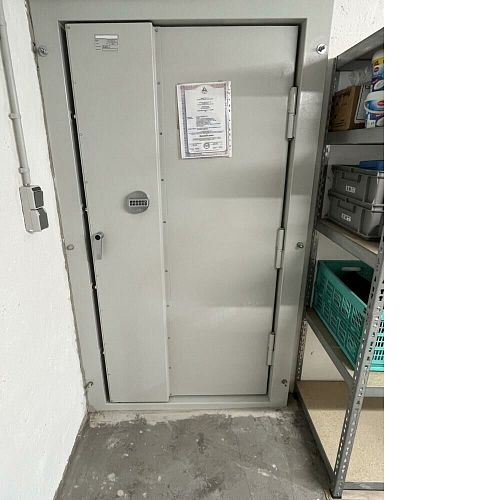

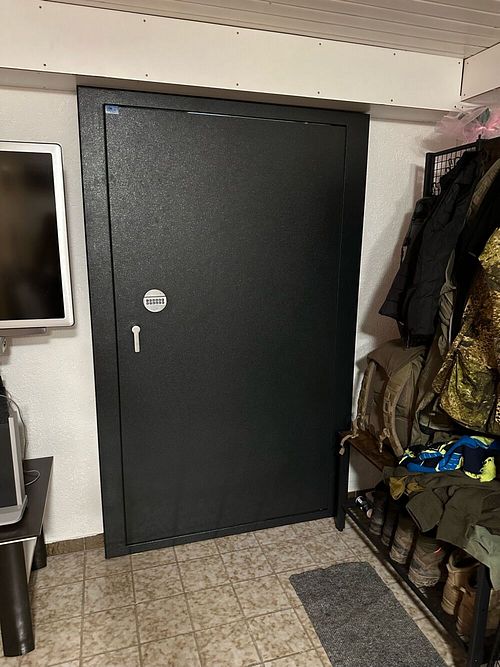

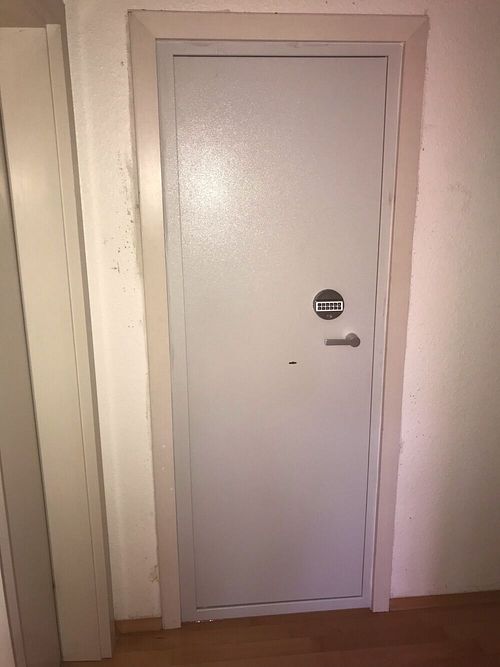

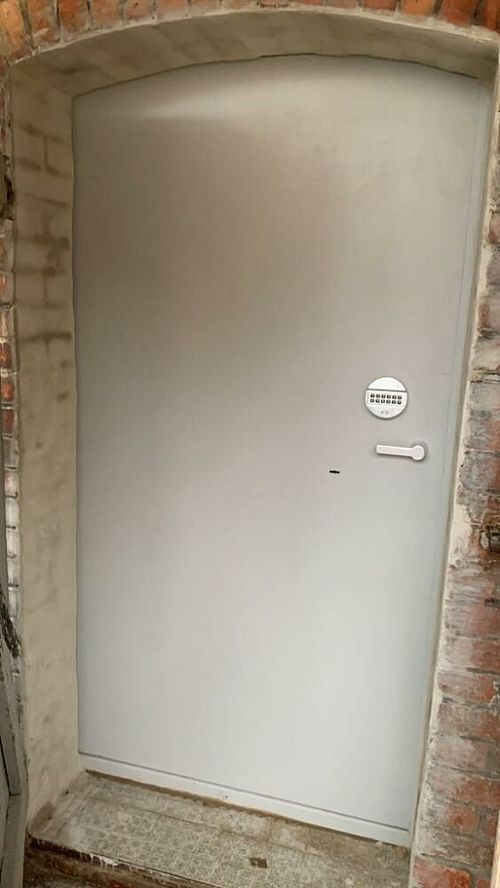

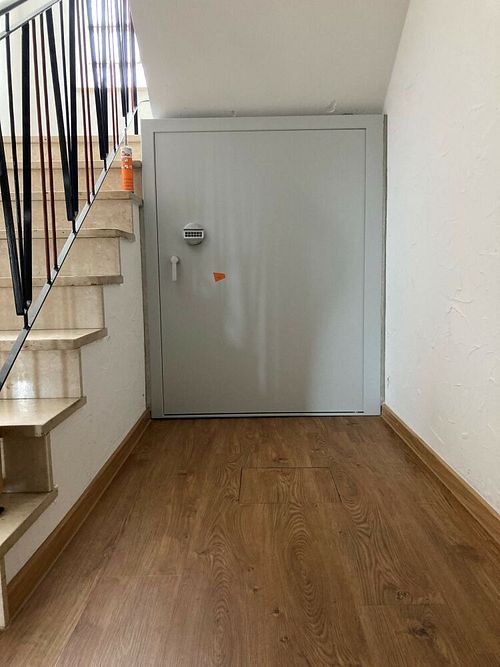

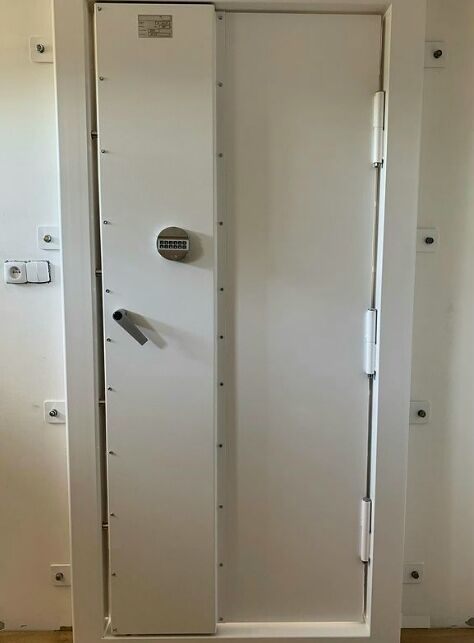

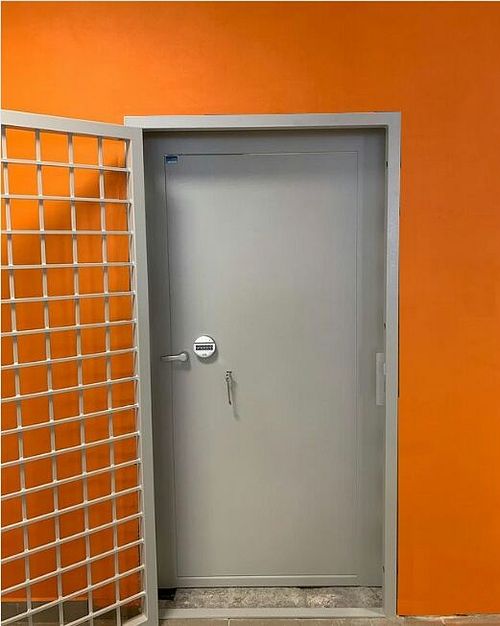

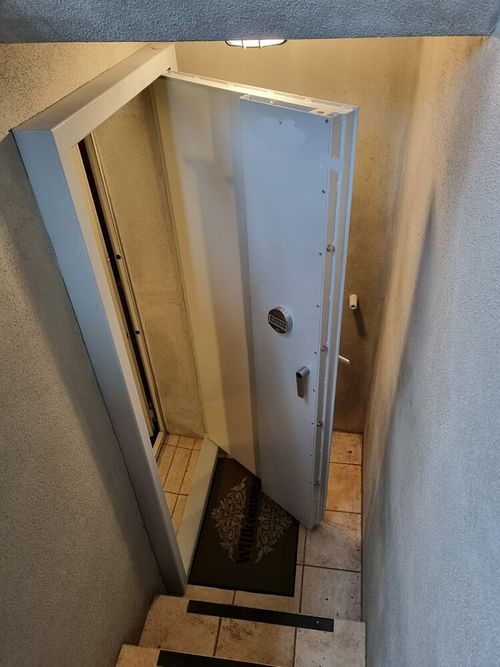

Every installation situation can be optimally solved. Don’t believe it? Just inquire with measurements and pictures, we will solve the problems. The photos show a colorful selection of our possibilities.
For questions, we are always happy to assist you, no matter how complicated it may seem for you, we are here to support you with your project and offer the best possible solution.

Self-installation:

Some basic craftsmanship knowledge and skill are required, you can also install your new weapons room door yourself.
